Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

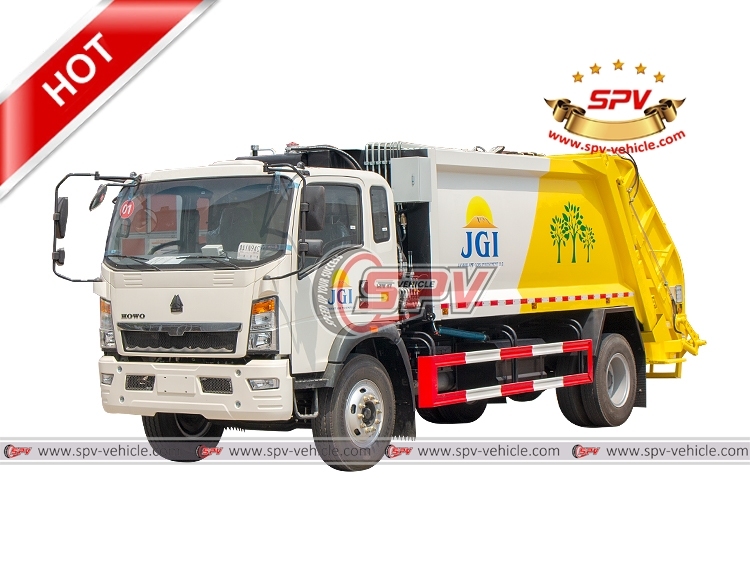

| Solid Waste Removal Lorry SINOTRUK (10 m³ garbage truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 8570 x 2500 x 2930 mm | |
| GVW / Kerb Weight | 16,000 kg / 9,140 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS engine | |
| Power | 160 Hp (118 KW) | |
| Displacement |
4257 ml | |
| Emission Standard |
Euro III | |
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 6-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
9.00R120 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
10 m³ |
| Waste Box Material |
Anti – corrosive material | |
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

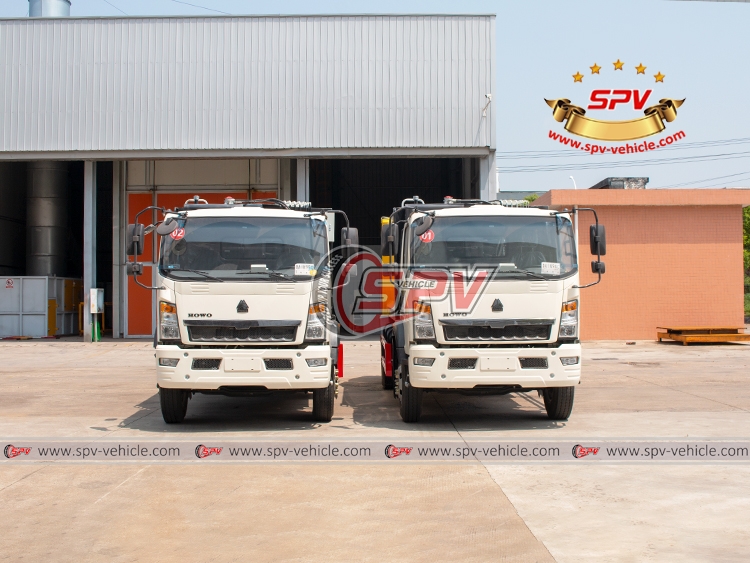

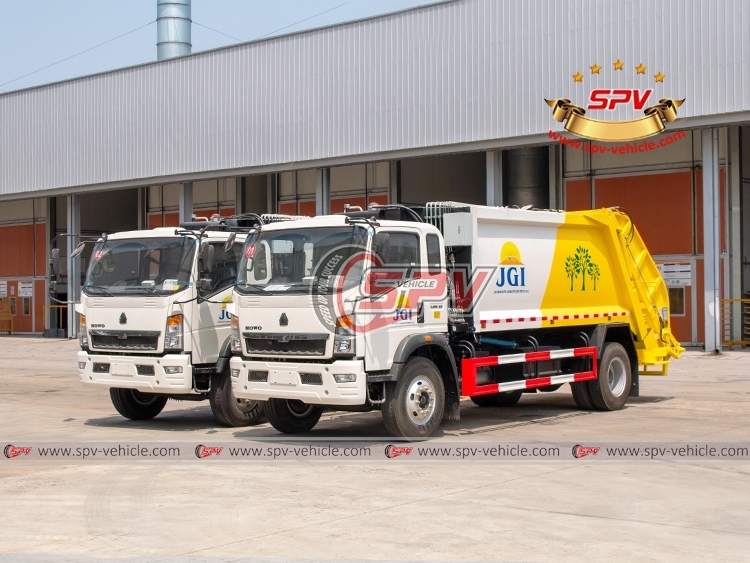

| SINOTRUK 10 CBM Trash Delivery Truck - Front | SINOTRUK 10 CBM Rubbish Collection Truck - Front Left |
 |
 |

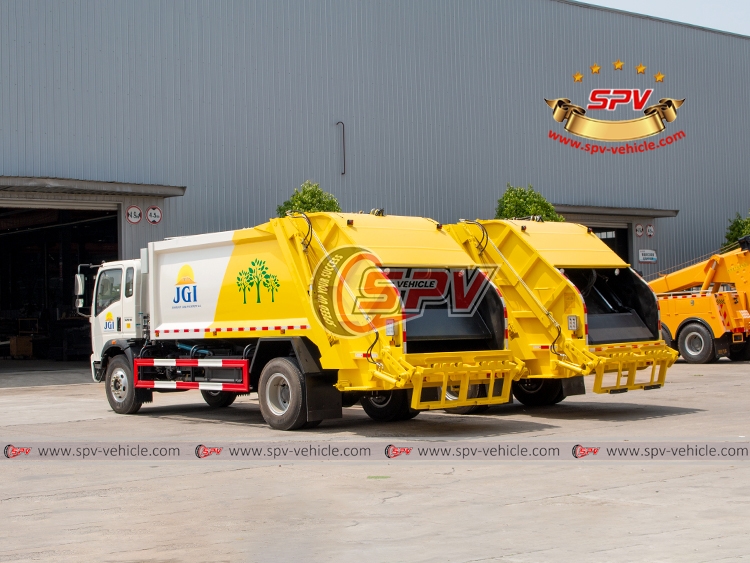

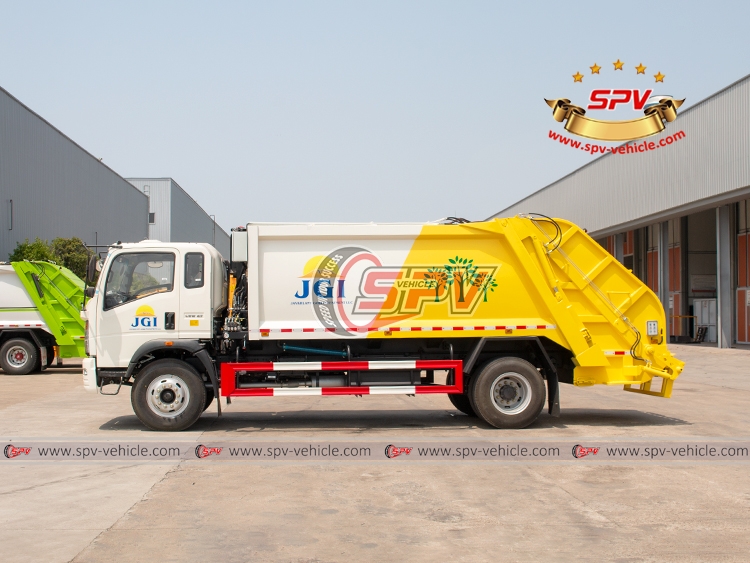

| SINOTRUK 10 CBM Trash Removal Lorry - Left | SINOTRUK 10 CBM Refuse Collection Truck - Rear Left |
 |
 |

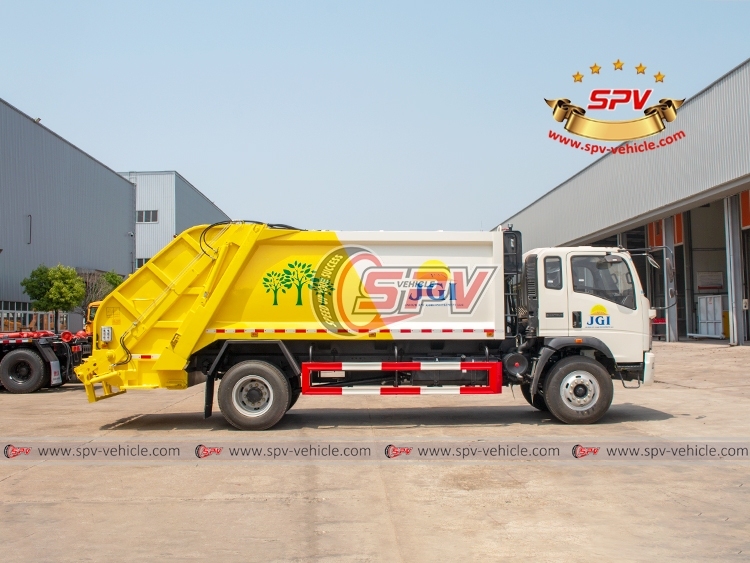

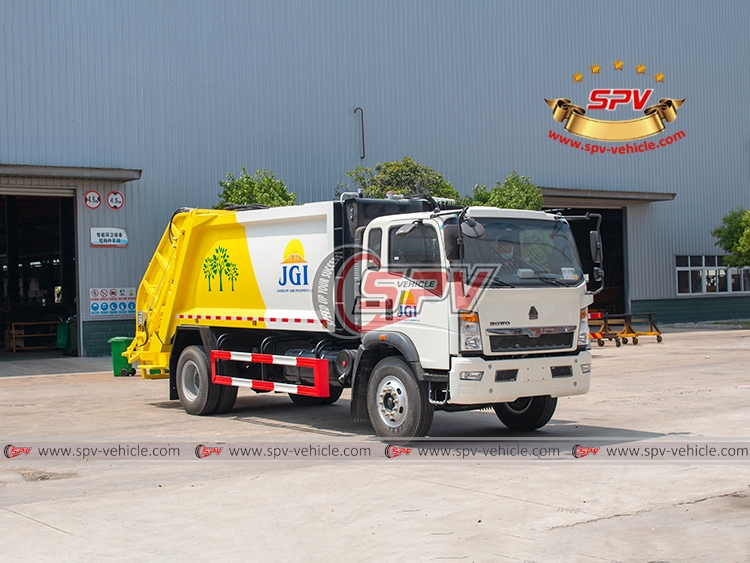

| SINOTRUK 10 CBM Junk Disposal Truck - Front Right | SINOTRUK 10 CBM Solid Waste Disposal Truck - Right |
 |
 |

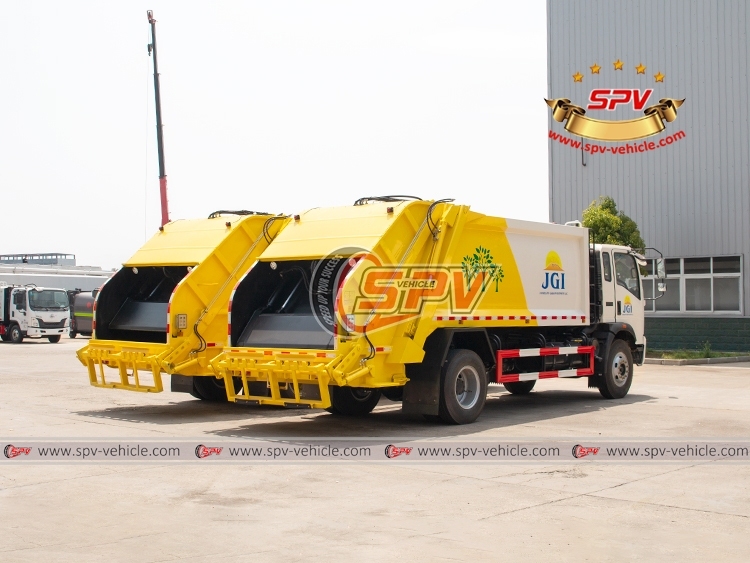

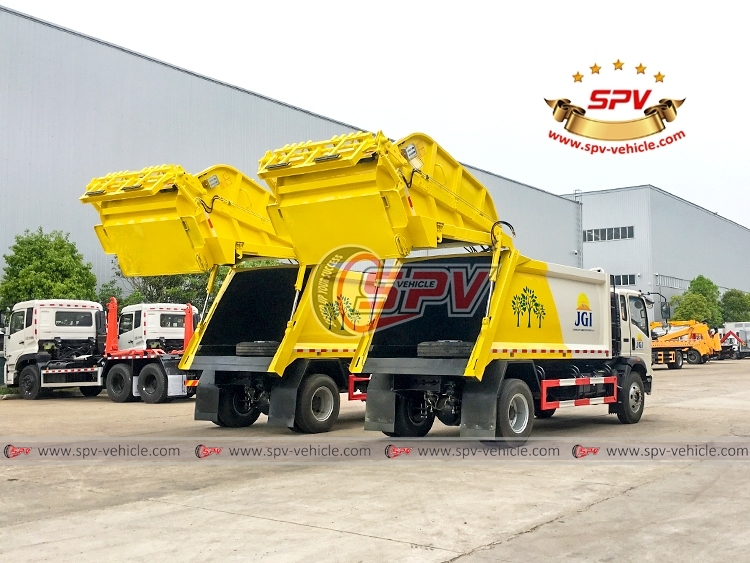

| SINOTRUK 10 CBM Solid Waste Collection Truck - Rear Right | SINOTRUK 10 CBM Solid Waste Removal Lorry - Tailgate Lifting |
 |
|

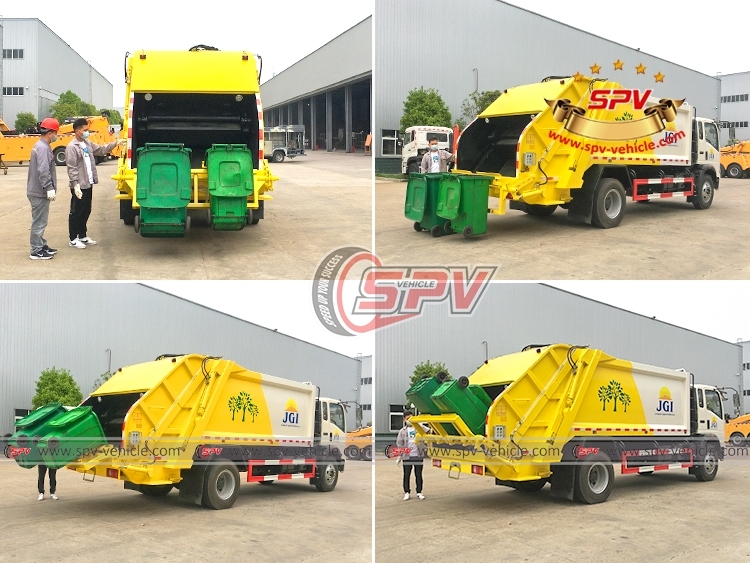

| SINOTRUK 10 CBM Junk Disposal Truck - Dustbin Lifting Test |
