FOTON Mini Panel Refrigerated Vans

800 KG Chiller Van Truck
FOTON Light 4x2 Left Hand Drive
95 Hp / 70 Kw FOTON Engine
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans
  • FOTON Mini Panel Refrigerated Vans

Function:
Panel refrigerated vans (also called refrigerated wagon, chiller van truck, cold room truck, reefer box truck, refrigerator truck, refrigerated truck, freezer truck, refrigerator lorry, refrigerated box car, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle.) is used to carry perishable stuff at specific temperatures.
The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -20°) for your option.

our refrigerator wagons use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.

Features:
---- FOTON chassis ensures perfect driving performance.
---- FOTON engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life

Specitfication:
Mini Reefer Van Truck FOTON
800 Kg Cooling System Truck)
General Vehicle Brand SPV
Chassis Brand FOTON
Overall Dimension 5995 * 2600 * 3325 mm
GVW / Kerb Weight 3,020 kg / 2,250 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand FOTON engine
Power 95Ps  (70 KW)
Displacement 2771 ml
Emission Standard Euro II
Chassis Drive Type 4X2, left hand drive, power assisted steering
Transmission Manual 5-speed forward, 1 reverse
No. of Axles 2
Tyre Specification 195R15C
Tyre Number 4 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Box Capacity 800 kg
Box Material Sandwich type, inside and outside fibreglass with insulation material between
Refrigerator Machine Chinese top brand, top mounted
Lowest temperature -18°
All other standard accessories: Tool kit, English manual……

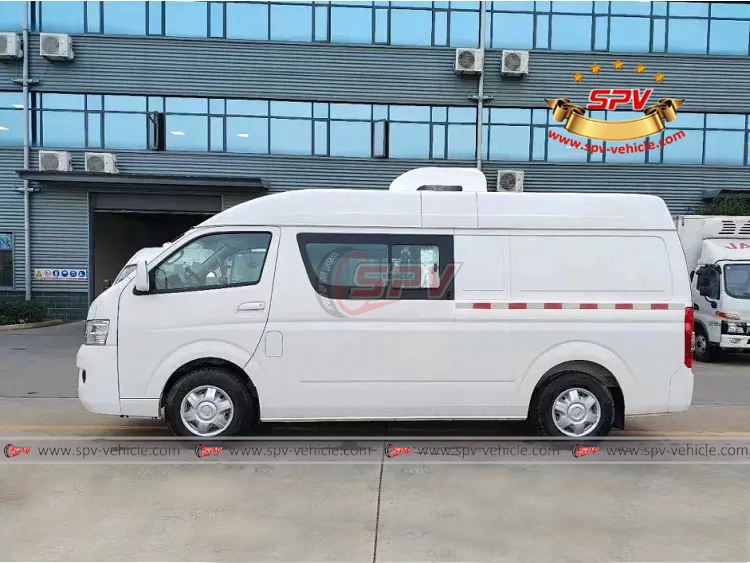

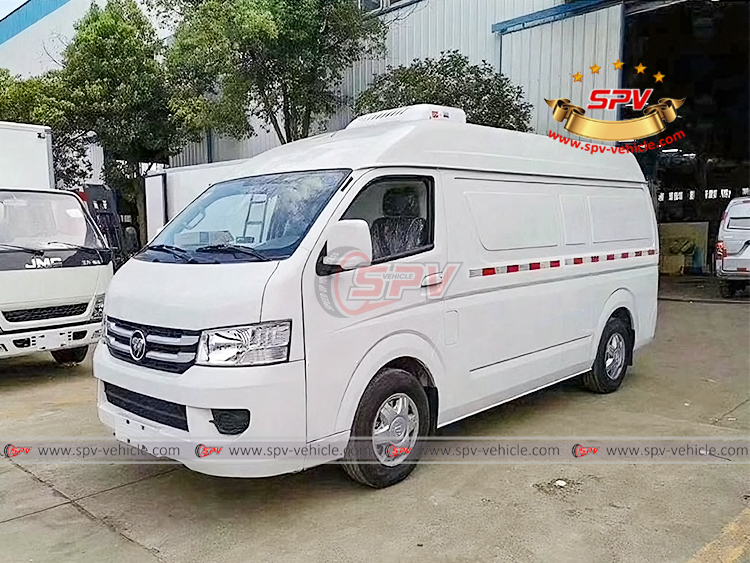

FOTON MINI Fridge Vans - Front Left Panel Refrigerated Vans - Left
FOTON MINI Fridge Vans - Front Left Panel Refrigerated Vans - Left

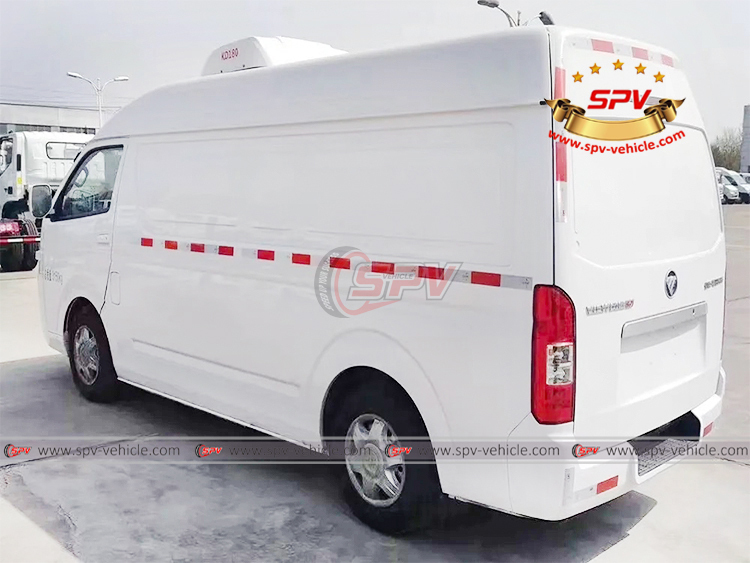

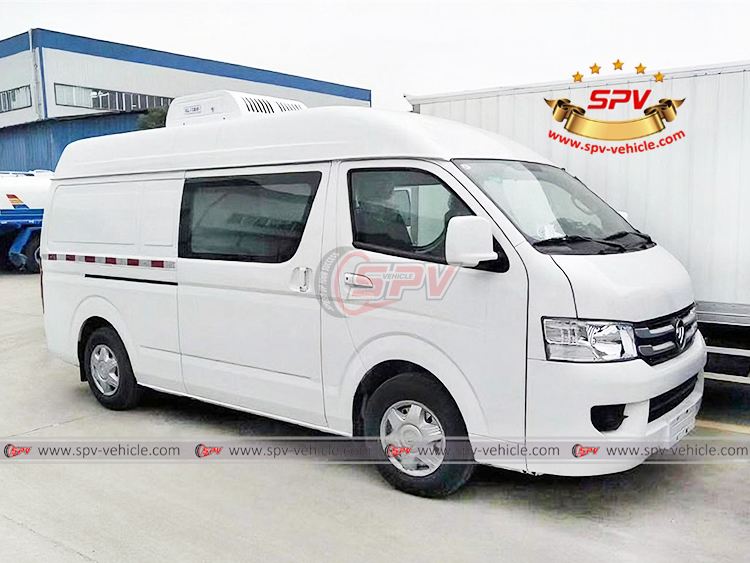

Foton Freezer Vans - Rear Left FOTON Chiller Vans - Front Right
Foton Freezer Vans - Rear Left FOTON Chiller Vans - Front Right

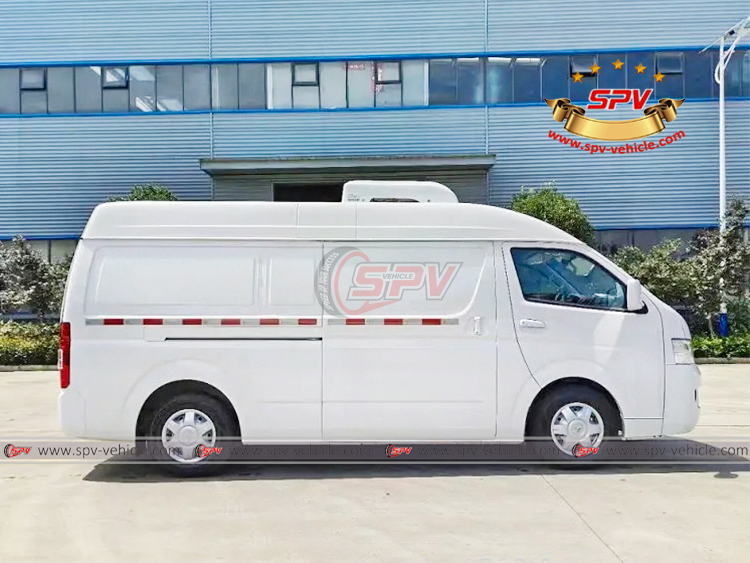

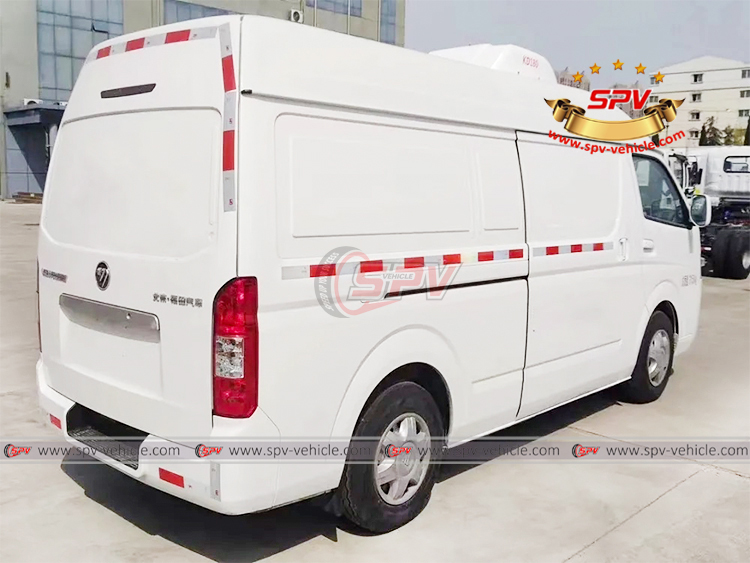

Panel Refrigerator Vans - Right Temperature Controlled Vans - Rear Right
Panel Refrigerator Vans - Right Temperature Controlled Vans - Rear Right

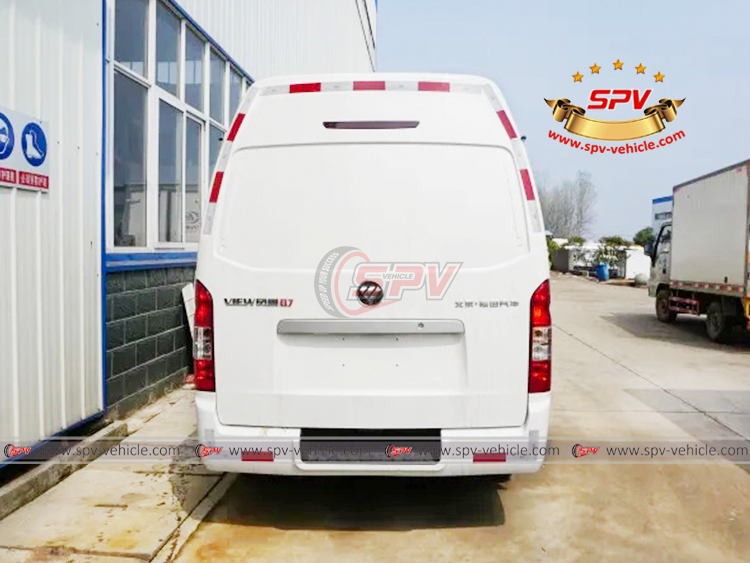

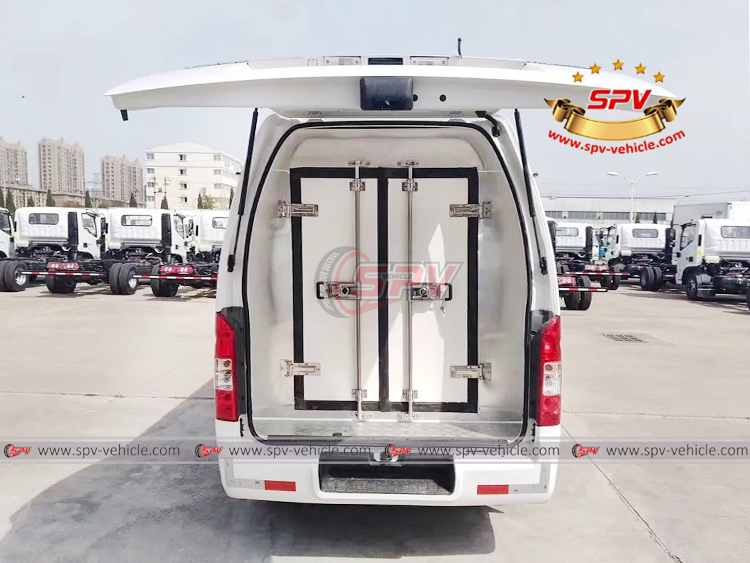

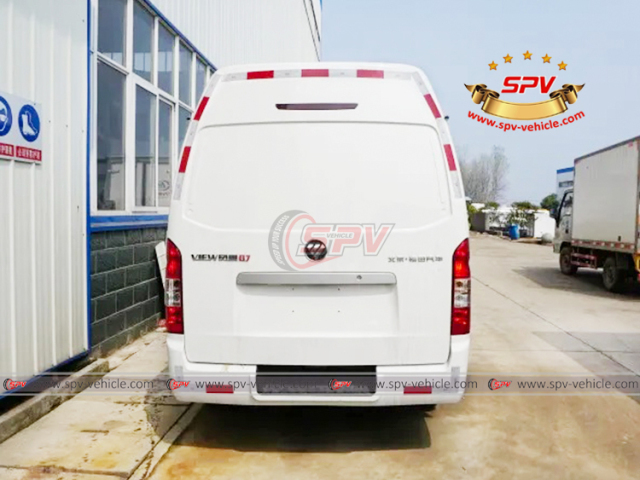

Foton Mini Reefer Vans - Rear Ambient Vans - Rear
Foton Mini Reefer Vans - Rear Ambient Vans - Rear

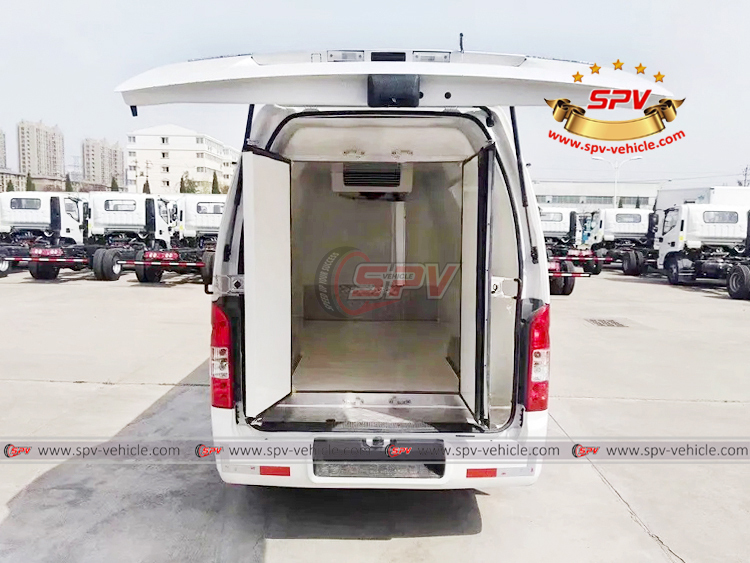

High Roof Refrigerated Cargo Van - Rear
High Roof Refrigerated Cargo Van - Rear
