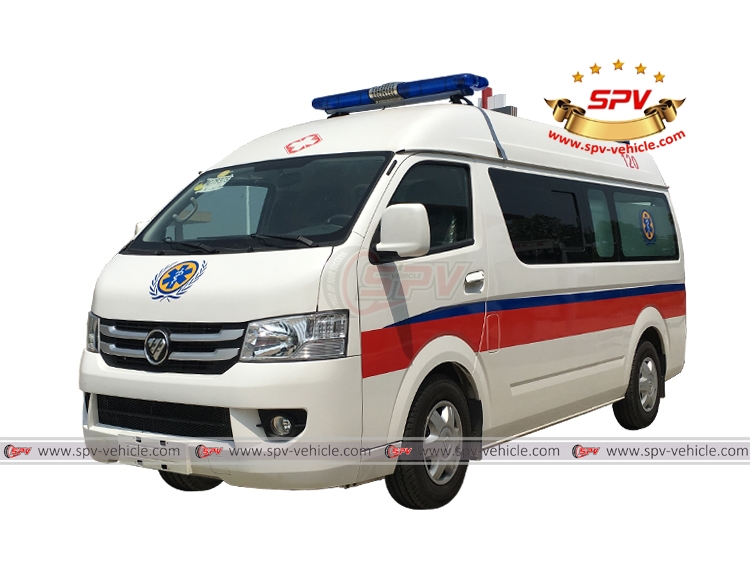

| Ambulance Vehicle FOTON |
|||
General |
Vehicle Brand | SPV | |
| Chassis Brand | FOTON | ||
| Overall Dimension | 5380×1920×2480 mm | ||
| GVW / Kerb Weight | 3,400 kg / 2,500 kg | ||
| Cab Capacity | 5-7 persons allowed | ||
| Air Conditioner | W/ air conditioner | ||
Engine |
Fuel Type | Diesel | |
| Engine Brand | FOTON engine | ||
| Power | 136 Hp (100 KW) | ||
| Displacement | 2378 ml | ||
| Emission Standard | Euro II | ||
Chassis |
Number of shaft | 2 | |
| Axle weight(kg) | 1630 /1770 kg | ||
| No. of Axles | 2 | ||
| Tyre Specification | 195R15C | ||
| Tyre Number | 6 tyres and 1 spare tyre | ||
| Max Speed | 145 km/h | ||
| Paint | Automative Metallic paint | ||
| Function |
Strip lights alarm platform | 1 set | |
| Long warning light | 1 set | ||
| Flashing lights around | 1 set | ||
| Widen car pedal | 4 sets | ||
| Partition (push-pull window) | 1 set | ||
| LG medical floor | 1 set | ||
| Left reclining seat | 1 set | ||
| Right single seat | 2 sets | ||
| Stainless steel medical cabinet | 3 sets | ||
| Small cabinet | 1 set | ||
| Transfusion hooks | 1 set | ||
| Stainless steel garbage bin | 2 sets | ||
| Ventilator | 1 set | ||
| Front and rear intercom | 1 set | ||
| 10 L oxygen tank and bracket | 1 set | ||
| Inverter power supply（1KVA） | 1 set | ||
| Vehicle wiring and cable protection sleeve | 1 set | ||
| Combination socket（220V/12V） | 1 set | ||
| Ultraviolet disinfection lamp | 2 sets | ||
| Light system | 1 set | ||
| Armrest | 4 sets | ||
| Automatic loading stretcher | 2 sets | ||
| Stretcher baffle | 1 set | ||
| Simple stretcher and stretcher warehouse | 1 set | ||
| Appearance | 1 set | ||
| Rear camera | 1 set | ||
| Auxiliary materials | 1 set | ||
 |
|
