Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

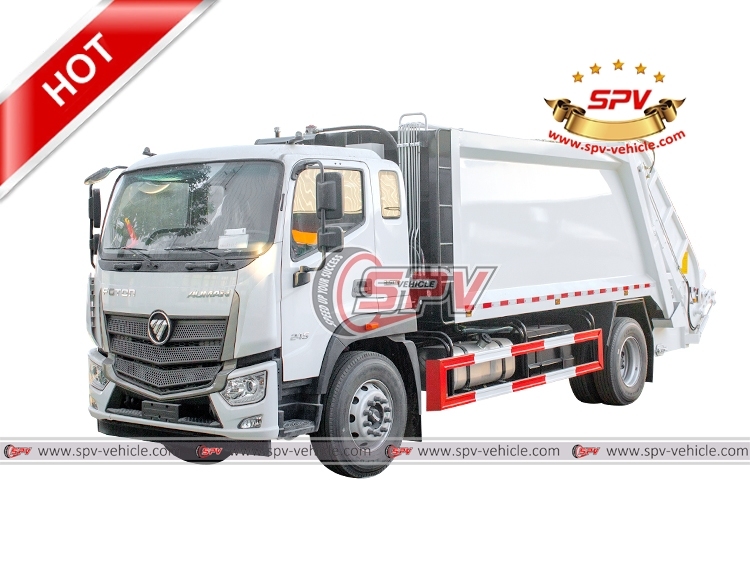

| Refuse Disposal Truck FOTON (12 m³ garbage truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | FOTON | |
| Overall Dimension | 8900 * 2500 * 3060 mm | |
| GVW / Kerb Weight | 18,000 kg / 10,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Yuchai engine | |
| Power | 240 Hp (176 KW) | |
| Displacement |
7255 ml | |
| Emission Standard |
Euro II | |
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 8-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
11R22.5 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
12 m³ |
| Waste Box Material |
Carbon steel | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

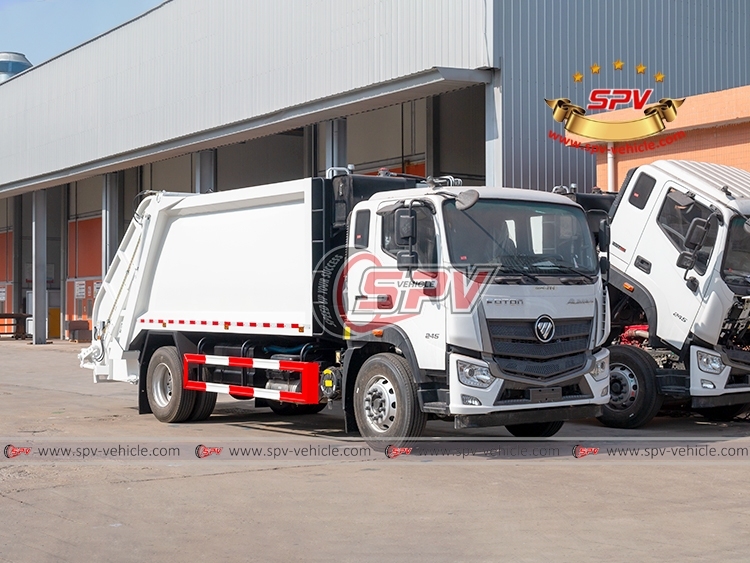

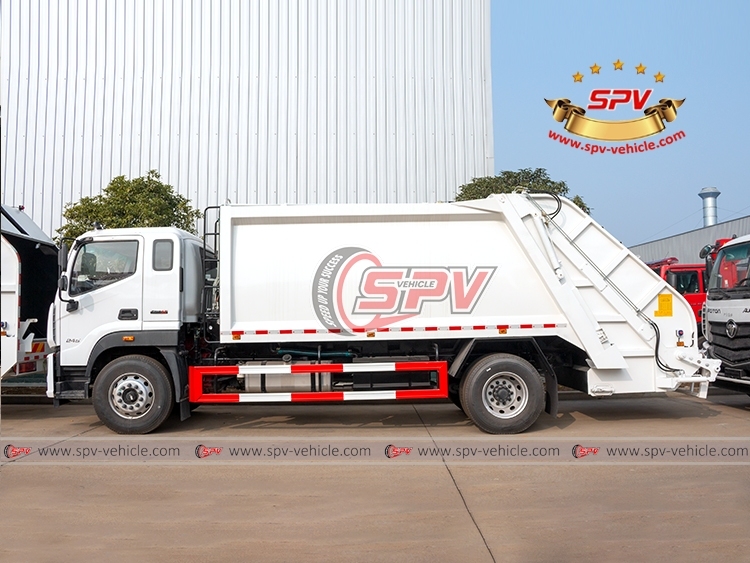

| FOTON 12 CBM Trash Collection Truck - Left | FOTON 12 CBM Garbage Delivery Truck - Front Right |
 |
|

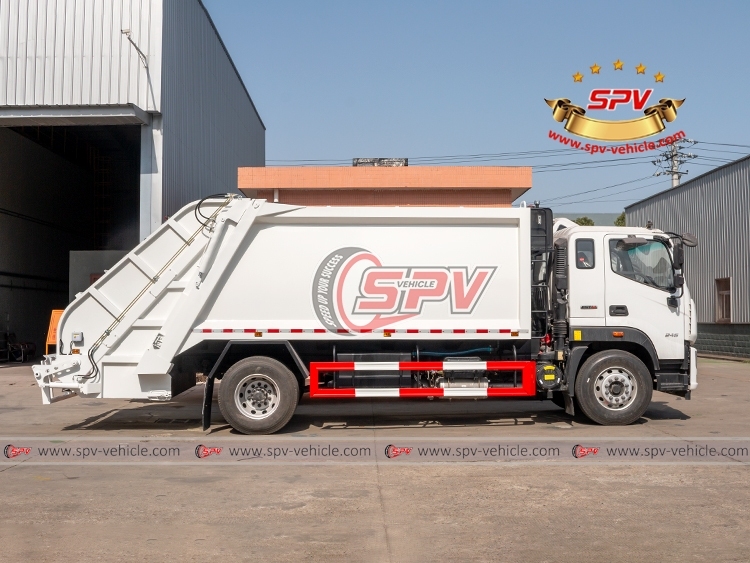

| FOTON 12 CBM Junk Delivery Truck - Right |
