Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

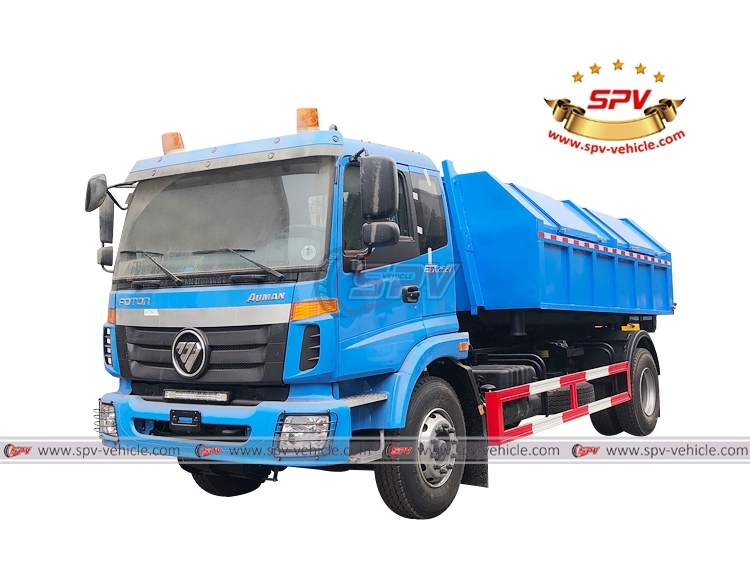

| Hook Lift Refuse Truck FOTON (12 m³ Hook Lift Garbage Truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | FOTON | |
| Overall Dimension | 8600 * 2500 * 3100 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,600 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | YUCHAI engine | |
| Power | 240 Ps (176 KW) | |
| Displacement |
7255 ml | |
| Emission Standard |
Euro III |
|
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 8-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
11R22.5 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
12 m³ |
| Self-discharging Incline Angle | 50° | |
| Lifting Time | ≤60S | |
| Unloading Time | ≤60S | |
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system …….. |
||
 |
 |

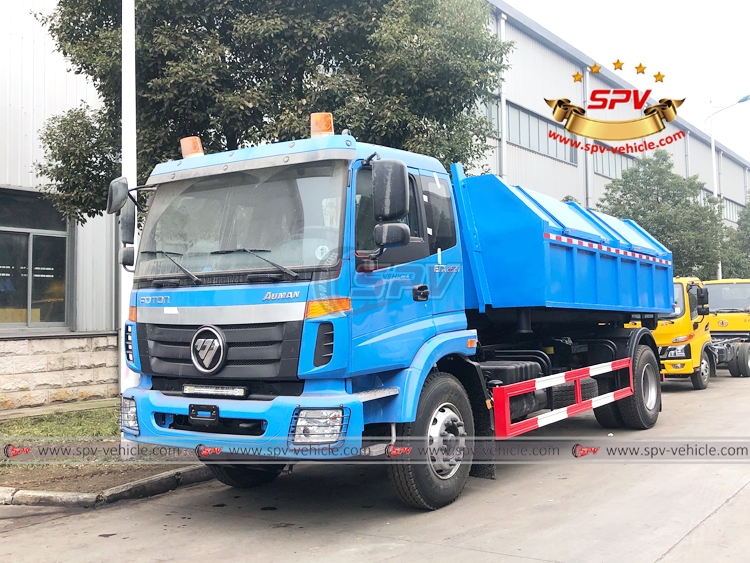

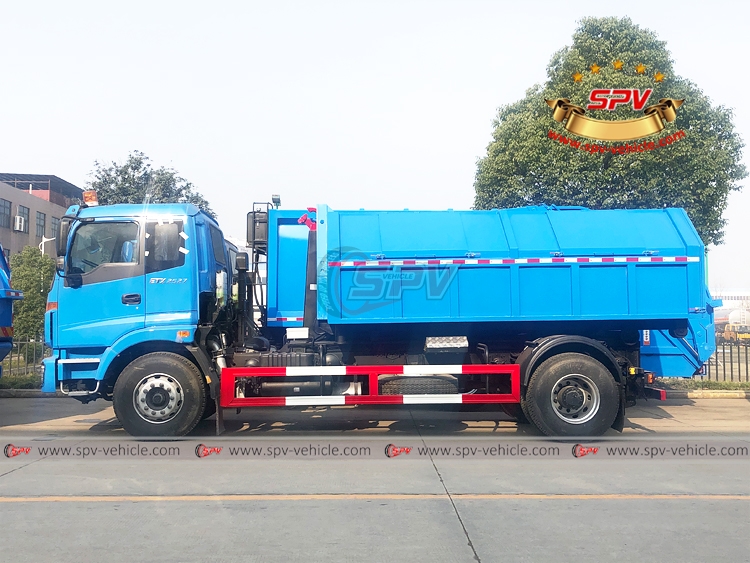

| FOTON 12 CBM Hook Lift Garbage Truck - Front Left | FOTON 12 CBM Hook Arm Trash Truck - Left |
 |
 |

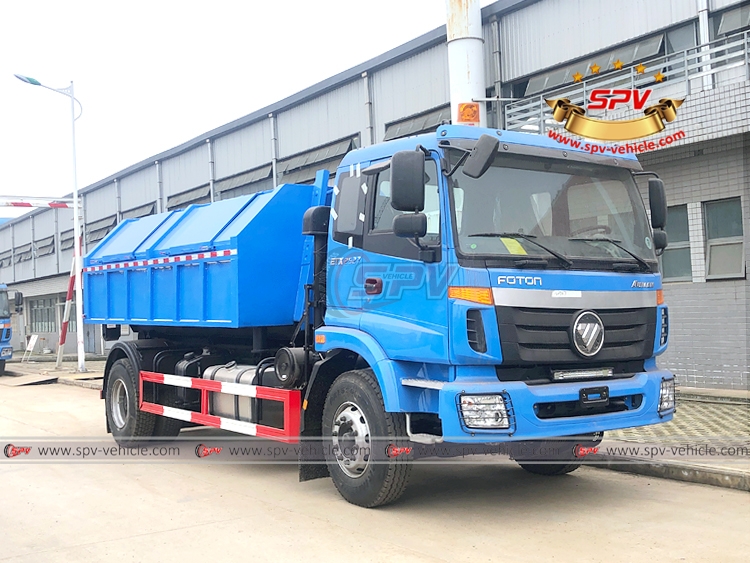

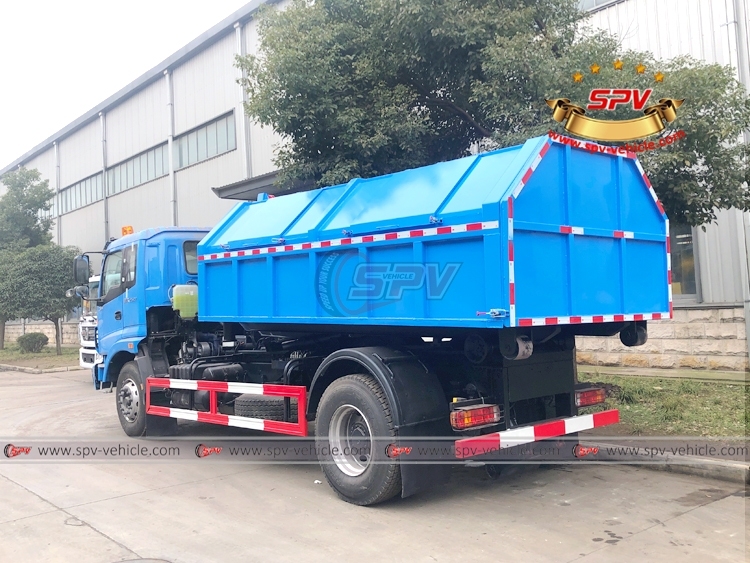

| FOTON 12 CBM Hook Lift Rubbish Truck - Rear Left | FOTON 12 CBM Hook Arm Refuse Truck - Front Right |
 |
 |

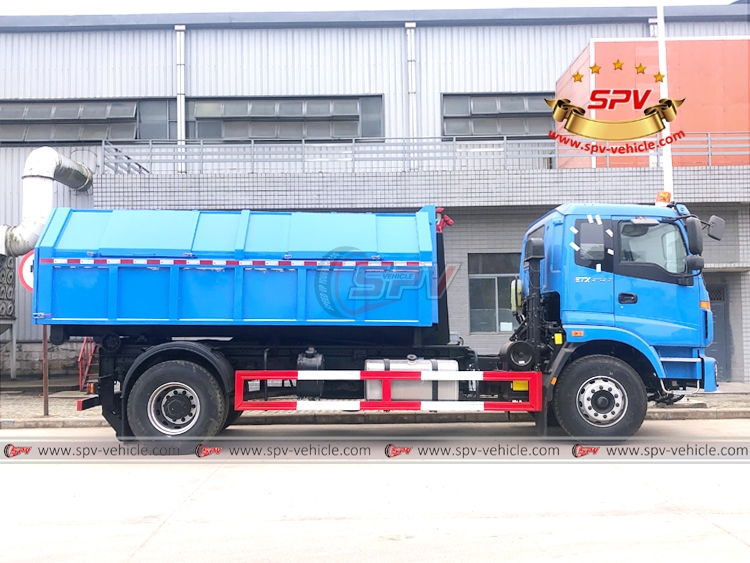

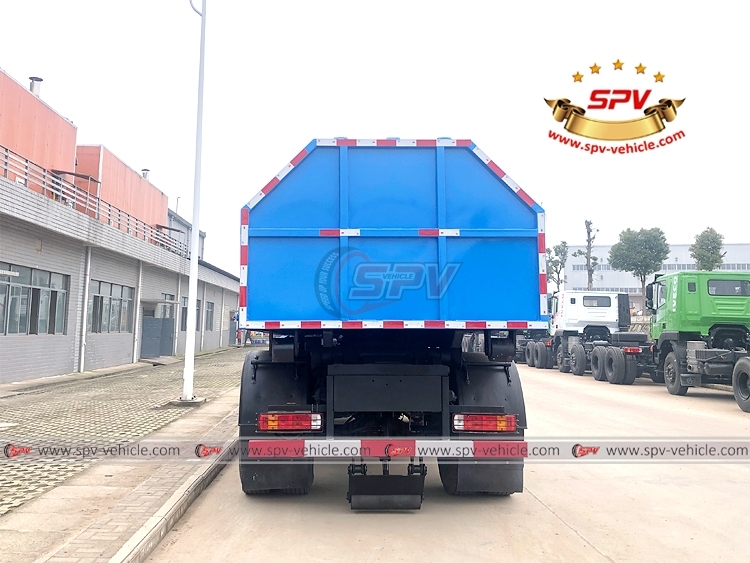

| FOTON 12 CBM Hook Arm Junk Truck - Right | FOTON 12 CBM Hook Lift Rubbish Truck - Rear |
