The truck uses a high-power vacuum pump to suck up dust, sand, ash, cement powder, and other dry materials quickly and efficiently.
Dust vacuum trucks help clean roads, industrial plants, warehouses, tunnels, ports, and construction areas, improving environmental cleanliness and reducing air pollution.
It can collect industrial dry waste materials such as metal powder, coal dust, grain residue, and factory debris safely and efficiently.
By removing loose dust and fine particles, the truck helps reduce airborne pollution and improves workplace safety and public health.
The sealed tank design prevents dust leakage during transportation, ensuring clean and safe waste handling.
Dust vacuum trucks are suitable for:
Compared with manual cleaning, dust vacuum trucks provide faster cleaning efficiency, reduce labor costs, and improve productivity.
Dust vacuum trucks are essential vehicles for modern environmental protection and industrial cleaning operations, providing a reliable solution for dust control and dry waste management.
| Road Vacuum and Washing Truck FOTON (11 CBM) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | FOTON | |
| Overall Dimension | 8580 * 2500 * 3100 mm | |
| GVW / Kerb Weight | 16,000kg / 11,350 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | LOVOL | |
| Power | 180 Ps (132 KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4x2, left hand drive |
| Transmission | Manual, 6 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 9.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Dustbin Material | Stainless Steel |
| Dustbin Capacity | 9 CBM, stainless steel | |
| Water Tank Capacity | 2 CBM | |
| High Pressure Pump | Imported Italian high pressure water pump, 154L/min @ 160 bar |
|
| Working speed | 3-20 km/h | |
| Sweeping Capacity | 70.000 m³/h | |
| Sweeping Speed | 3-25 km/h | |
| Working Width | 3.5 m | |
| Suction Plate | Big diameter 180mm, Hydraulic controll | |
| Brooms | 2 sets at each side | |
| Auxiliary Engine | Cummins engine (American brand), 170 HP (125 KW), super powerful |
|
| Vacuum |
Created by powerful air blower driven by auxiliary engine
|
|
| Suctions | Wet suction and dry suction Middle suctions |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
 |
|

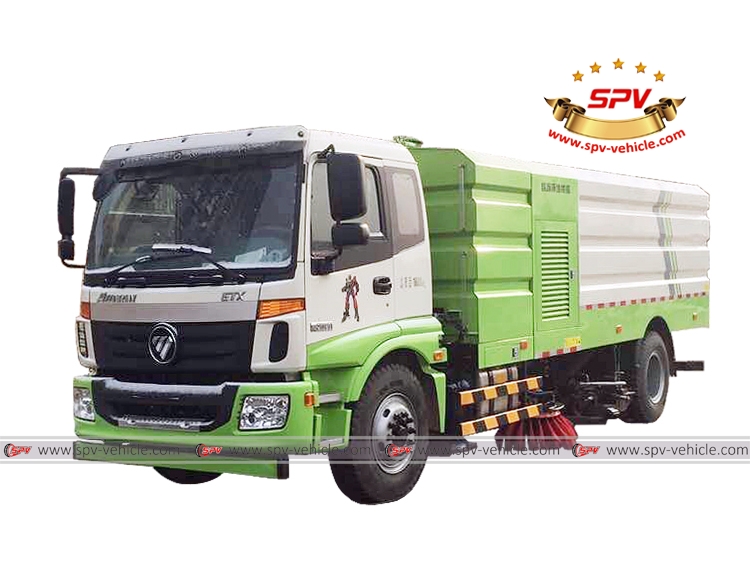

| FOTON 11 CBM Street Vacuum and Washing Truck |
