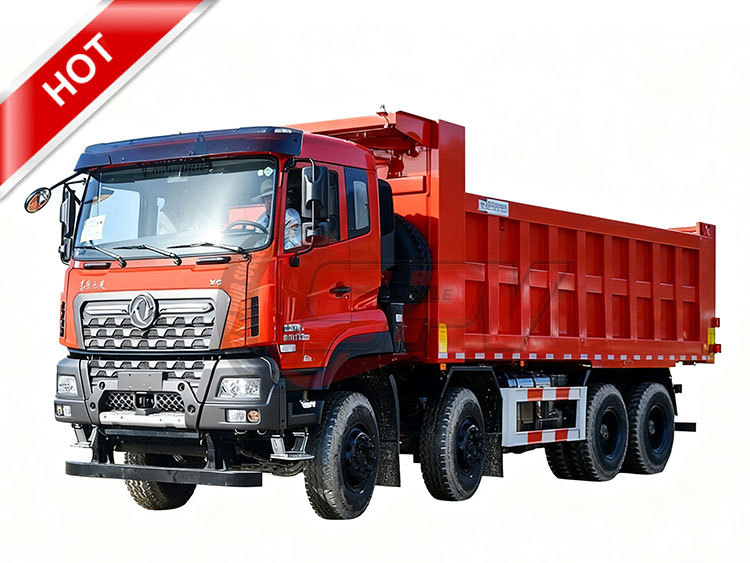

Name: DONGFENG 8x4 Hydraulic Tipper Truck
Brand: SPV Group Limited.
Rating: 5 (1 reviews)

Function:
Hydraulic Tipper Truck (also called tipper truck, dump truck, tipper truck, tipper lorry, construction dump truck, construction tipper truck, dump tipper, mining dump truck, sand hauling truck, Hydraulic dump truck, Heavy-duty dump truck, side-turn tipper, aggregate transport truck, dump truck tipping, tipper and lorry, dumper, quarry dump truck, gravel transport truck, earthmoving truck, dump tipper, tip truck, side-turn tipper, dump truck tipping, Rock dump truck, tipper and lorry, dumper, tipper lorry) the cargo area of such vehicles can be turned up and unloaded by the hydraulic cylinder driven by the engine.and this truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.

Features:
---- DONGFENG chassis, perfect performance.
---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life

Specitfication:

Hydraulic Tipper Truck DONGFENG ( 18 CBM Dump Truck )
General	Vehicle Brand	SPV
	Chassis Brand	DONGFENG
	Overall Dimension	85752550 3450 mm
	GVW / Kerb Weight	31,000 kg/15,500 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	CUMMINS engine
	Power	385 Hp (283 KW)
	Displacement	9726 ml
	Emission Standard	Euro VI
Chassis	Drive Type	8X4, left hand drive or right hand drive
	Transmission	Manual, 14-speed forward, 2 reverse
	No. of Axles	4
	Tyre Specification	12.00R20 18PR radial tyre, super wearable
	Tyre Number	12 tyres and 1 spare tyre
	Max Speed	80 km/h
	Paint	Metallic paint
Superstructure	Box Volume	18 CBM
	Box Dimension	6200 2300 1450 mm
	Hydraulic piston	Hyva or Chinese reliable brand
	Bottom Board Thickness	10 mm
	Side Board Thickness	8mm
	All other standard accessories: Tool kit, English manual...
Optional	Box thickness could be nominated. Box height could be nominated. ** Tip way: back or side.

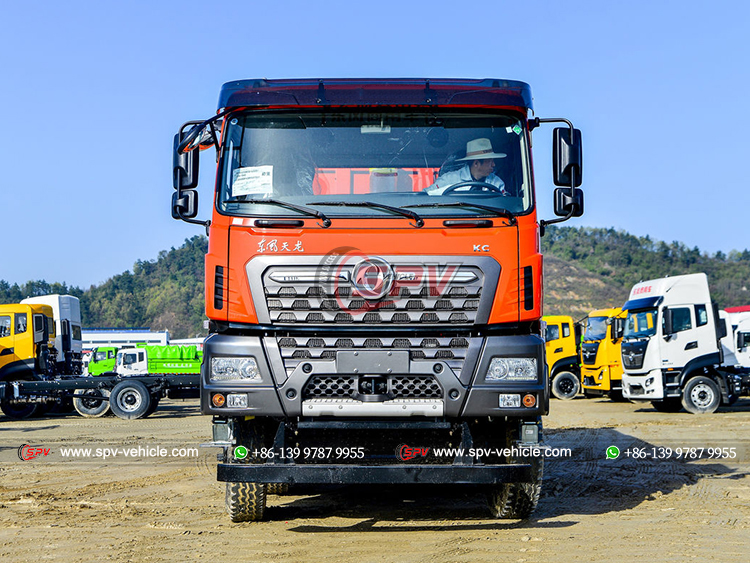

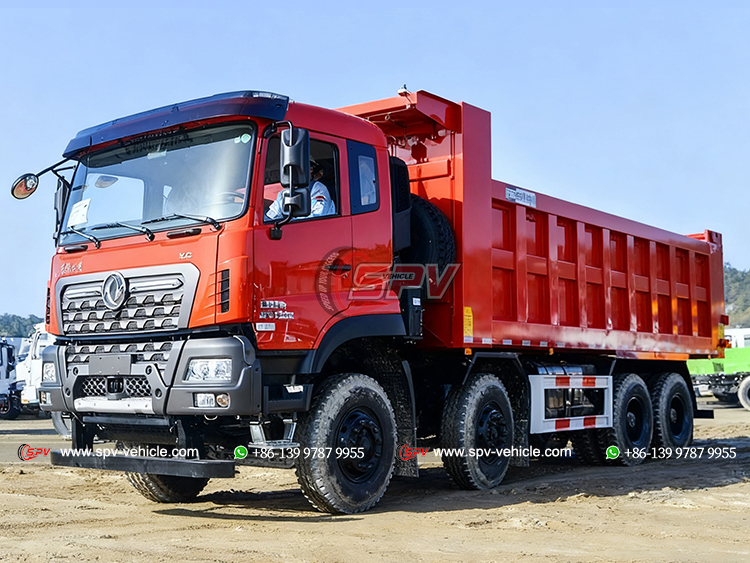

DongFeng 8x4 Aggregate Transport Truck - Front	DONGFENG 4 Axles Dumper Truck - Front Left

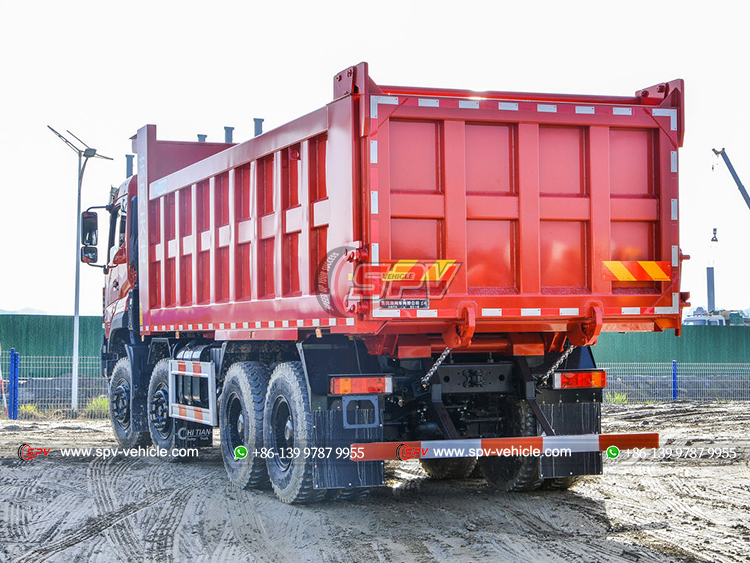

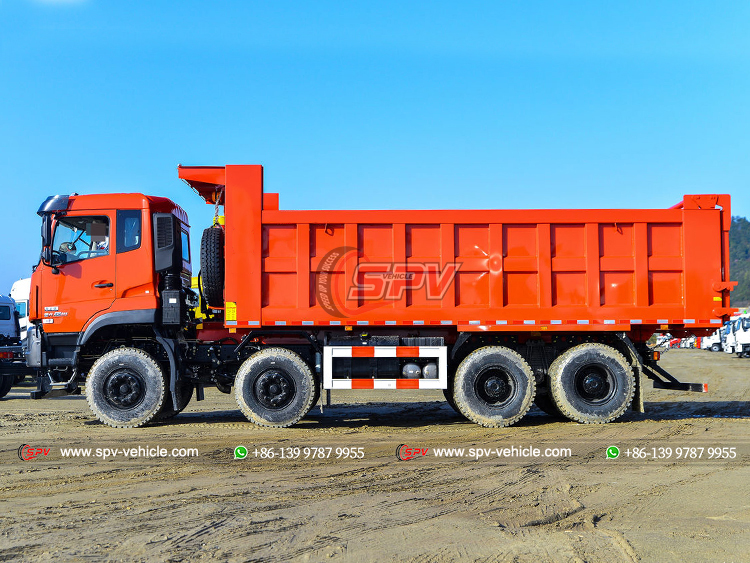

DONGFENG KC 8x4 Dumping Truck - Left	DONGFENG 8x4 Hydraulic Tipper Truck - Rear Left

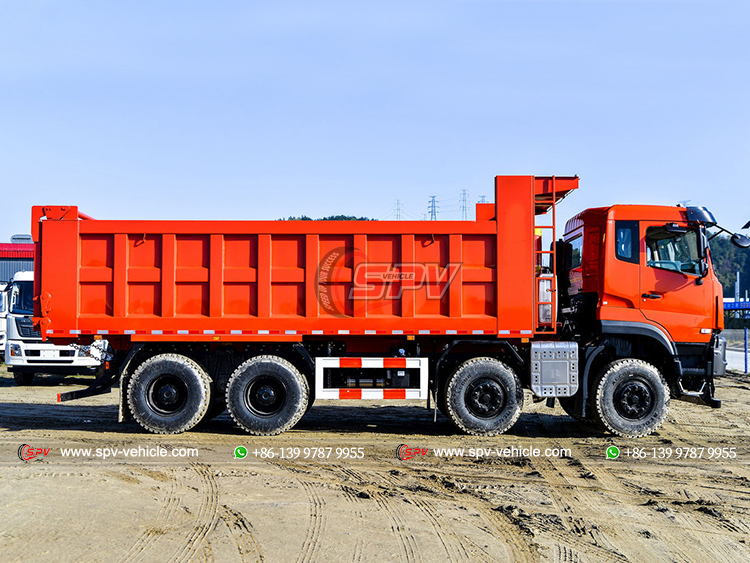

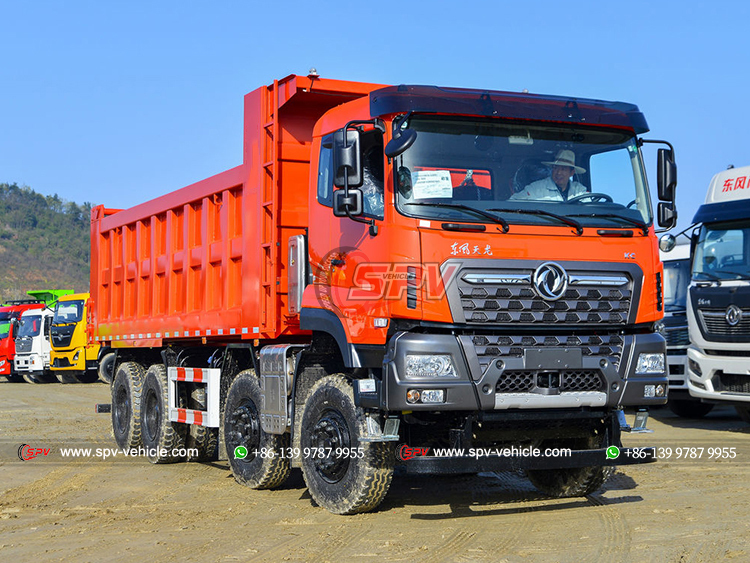

DONGFENG 8x4 Heavy-duty Dump Truck - Front Right	Dongfeng KC 8x4 Tipping Truck - Right

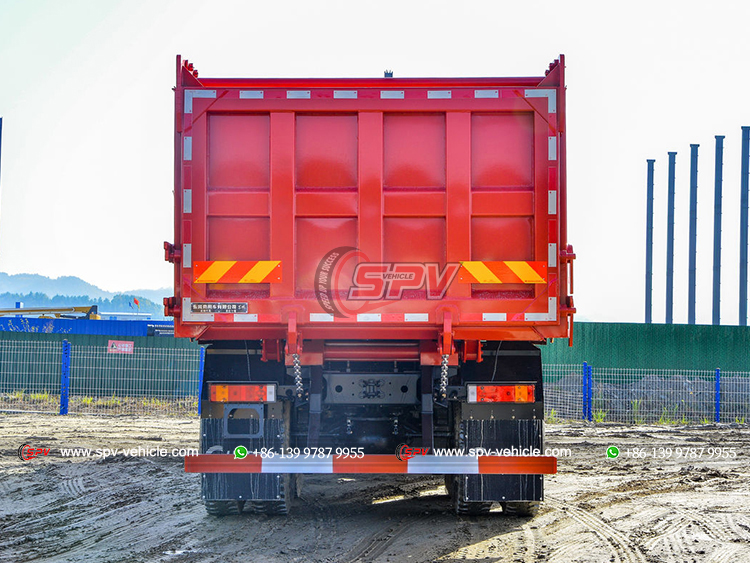

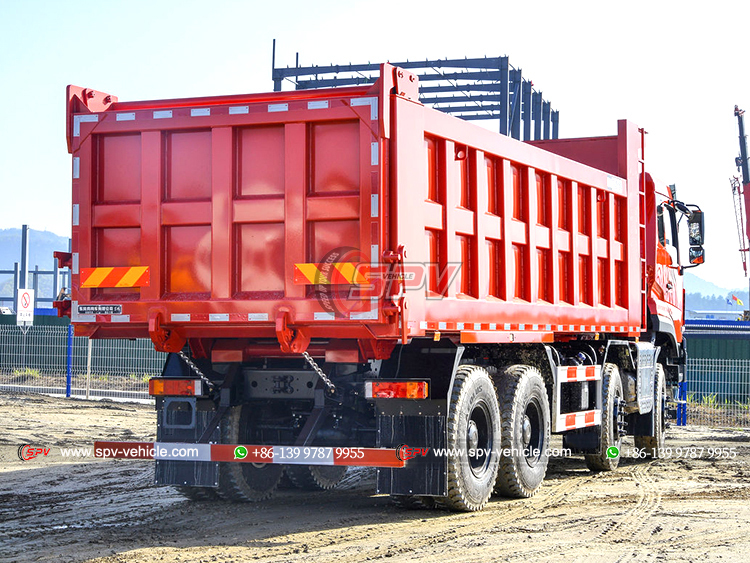

DONGFENG 8x4 Soil Hauling Truck - Rear Right	DONGFENG Construction Dump Vehicle - Rear
