Articulated Aerial Working Truck DONGFENG
(14-16 Meters Aerial Platform Truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 7650 x 1980 x 3150 mm | |
| GVW / Kerb Weight | 7,300 kg / 6,975 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | DONGFENG engine | |
| Power | 95Ps (70KW) | |
| Displacement |
3856 ml | |
| Emission Standard |
Euro III | |
| Chassis | Drive Type |
4X2, left hand drive |
| Transmission |
Manual, 5 -forward speed & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
7.00R16 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Automative metallic paint |
|
| Superstructure | Cage Rated Capacity |
200 kg capacity, anti-slip floor |
| Working Height |
14-16 m |
|
| Outriggers | 4pcs, H-type; Hydraulically extend and retract | |
| Slewing |
360° continuous rotation with base turntable | |
| Control |
Control both on the ground and in the cage | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
|
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground |
|
| Optional | Insulated cage; Wireless remote control system | |
 |
 |

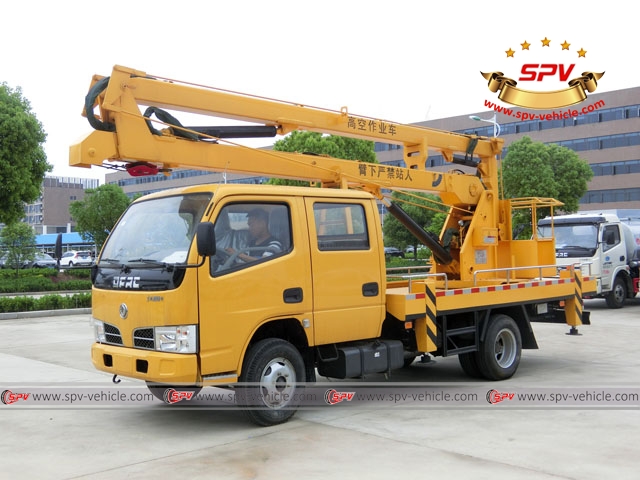

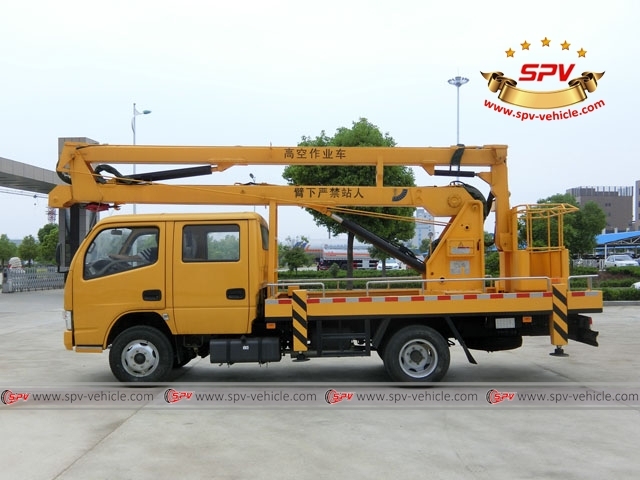

| DONGFENG 4x2 Articulated Boom Aerial Platform Truck - Front Left | ISUZU 14-16M Articulated Aerial Working Truck - Left |
 |
|

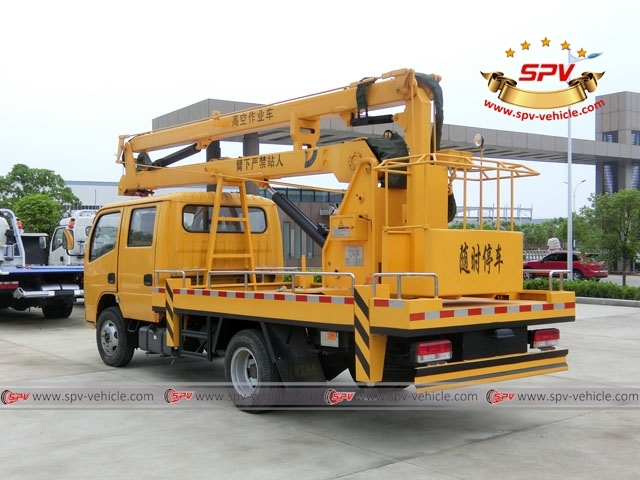

| DONGFENG Articulated Boom Manlift Vehicle - Rear Left |
