Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Hook Arm Trash Truck DONGFENG (12 m³ Hook Lift Garbage Truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 7200 * 2500 * 2980 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,200 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS engine | |
| Power | 170 HP (125 KW) | |
| Displacement |
5900 ml | |
| Emission Standard |
Euro III |
|
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 6-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
9.00-20 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
12 m³ |
| Self-discharging Incline Angle | 50° | |
| Lifting Time | ≤60S | |
| Unloading Time | ≤60S | |

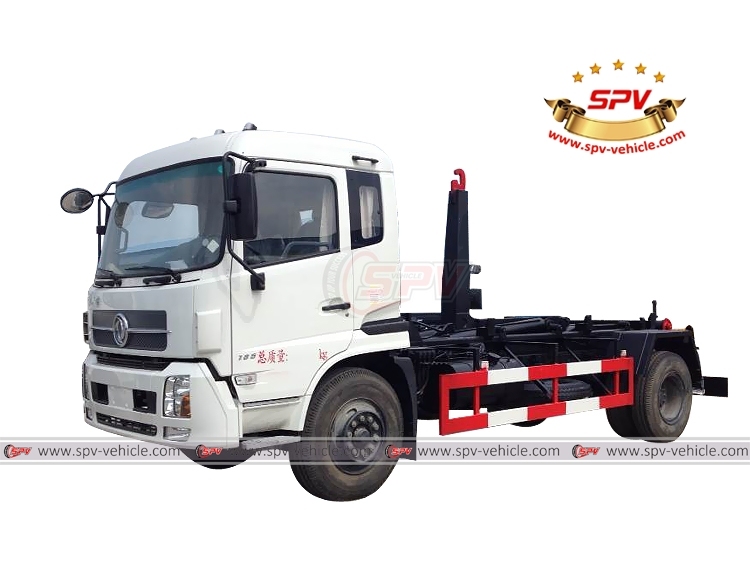

| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system …….. |
||
 |
 |

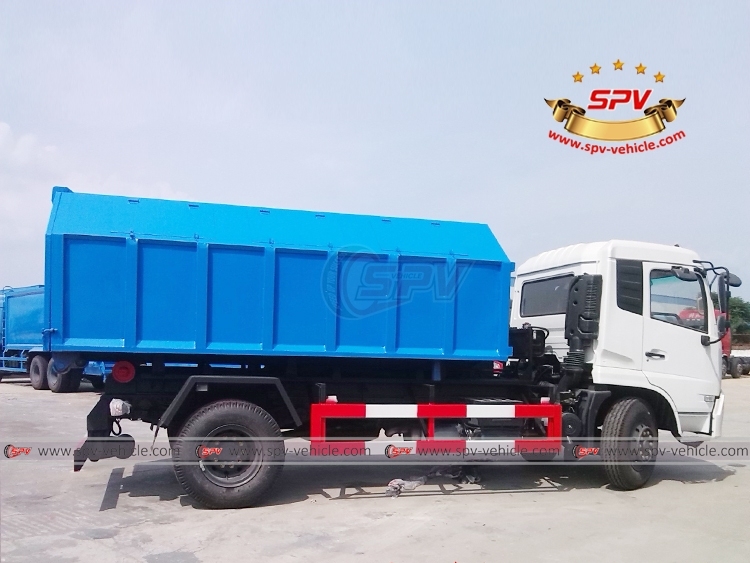

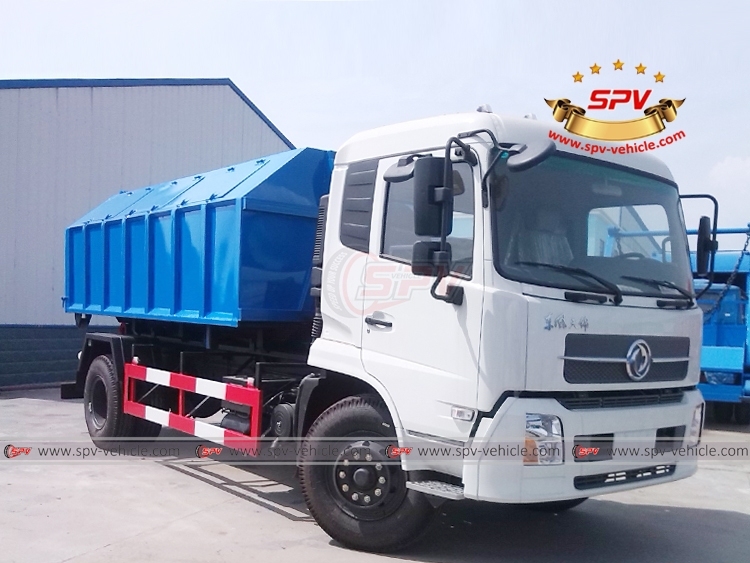

| DONGFENG 12 CBM Hook Loader Trash Truck - Right Front | DONGFENG 12 CBM Hook Loader Lift Rubbish Truck - Right |
