Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Detachable Garbage Truck DONGFENG (10 m³ Hook Lift Garbage Truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 8900 * 2500 * 3200 mm | |
| GVW / Kerb Weight | 16,000 kg /10,800 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 170 HP (125 KW) | |
| Displacement |
5900 ml | |
| Emission Standard |
Euro III |
|
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 6-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
10.00-20 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
10 m³ |
| Container Dimension | 5850 * 2500 * 2700 mm | |
| Container Weight | 4.5 Tons | |
| Operation Voltage | 380 V | |
| Hopper Capacity | 2 CBM | |
| Compressor Power | 5500 W | |
| Compressor Force | 250 KN | |
| Compression Room | 1.2 CBM | |
| Recycle Time | 35 – 45 s | |
| Max. Working Capacity | 100 tons / day | |
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system …….. |
||
 |
 |

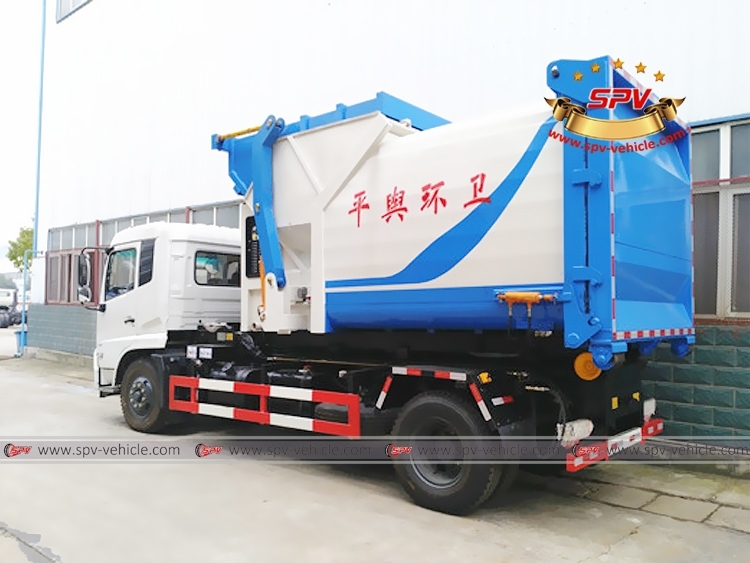

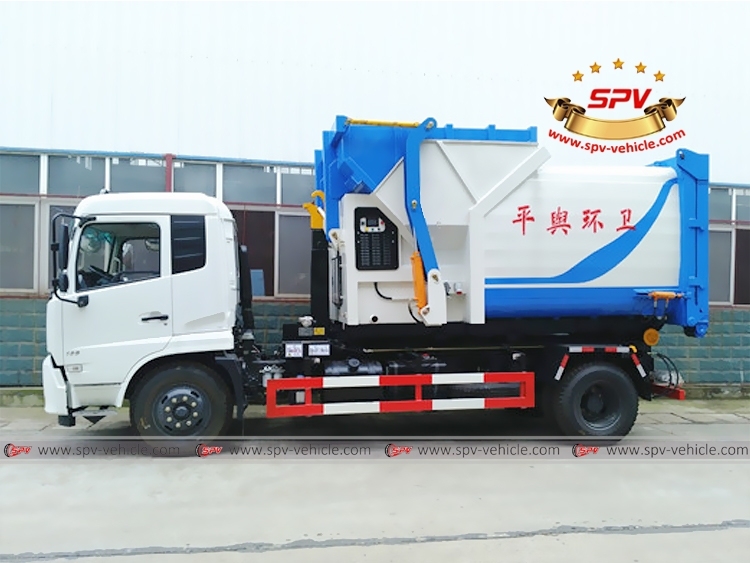

| DONGFENG 10 CBM Hook Loader Garbage Truck - Left | DONGFENG 10 CBM Trash Delivery Truck - Rear Left |
