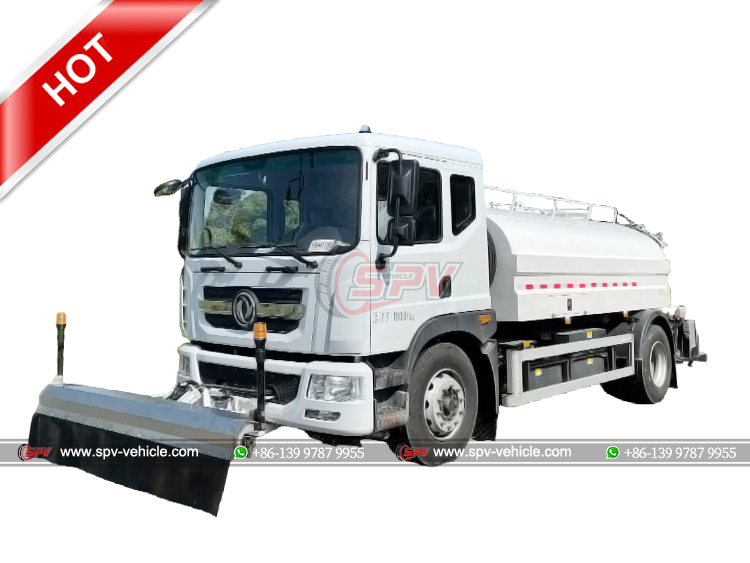

| DONGFENG Road Jetting Truck (8,000L) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 7950 *2550 *3150 mm | |
| GVW / Kerb Weight | 14,000 kg / 7,560 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS engine | |
| Power | 220 Ps (162 KW) | |
| Displacement | 4500 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual, 6 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h |
|
| Paint | Metallic paint | |
| Superstructure | Water Tank Capacity | 5,000 Litres (About 1,600 gallons) |
| High Pressure Pump | Imported Italian high pressure plunge pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 120 L/min @ 10MPa | |
| Cleaning Speed | 3-20 km/h | |
| Cleaning Width | 2.5-3.5 m | |
| Deflection Angle |
30°(left and right)
|
|
| Auxiliary Engine | Jiangxi engine (ISUZU technology)77 Hp /57 KW | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Stainless steel water tank.. ** Elevating Platform. ** High cannon. |
|
 |
 |

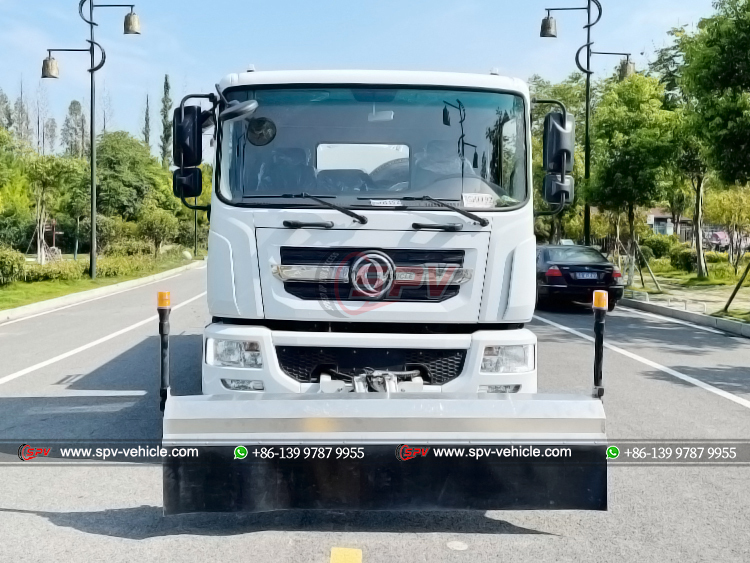

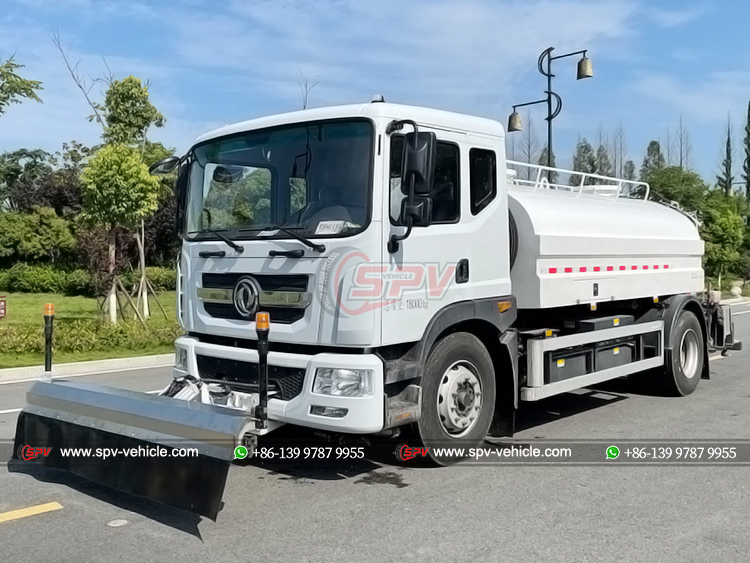

| DONGFENG Urban Street Cleaning Truck - Front | DONGFENG Highway Flushing Truck - Front Left |
 |
 |

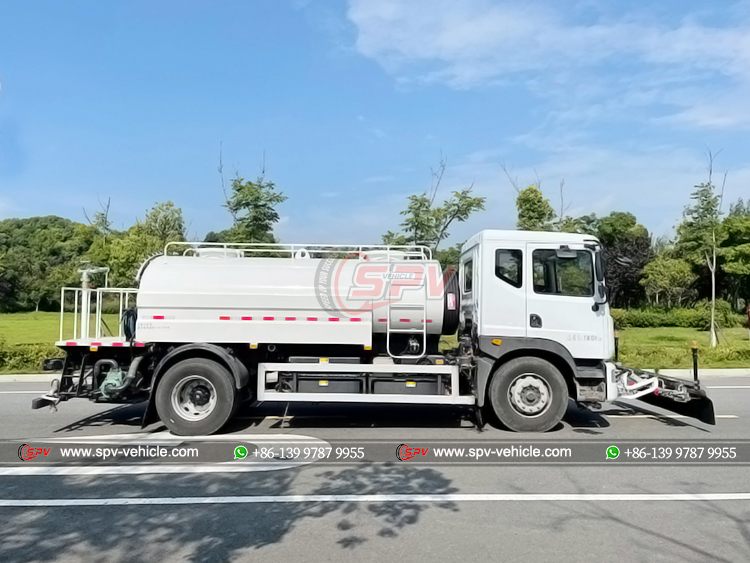

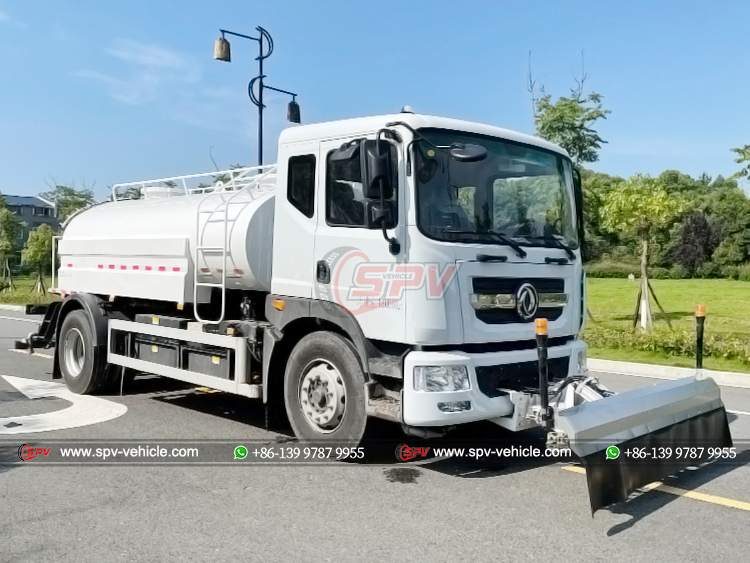

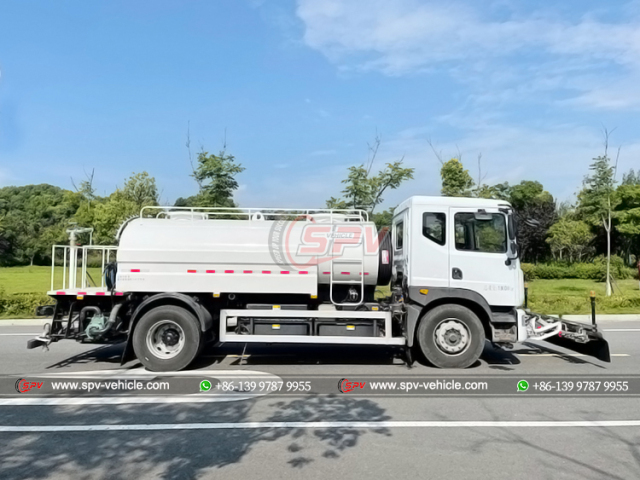

| DONGFENG Road Sanitation Vehicle - Front Right | DONGFENG D9 Pavement Washing Truck - Left |
 |
|

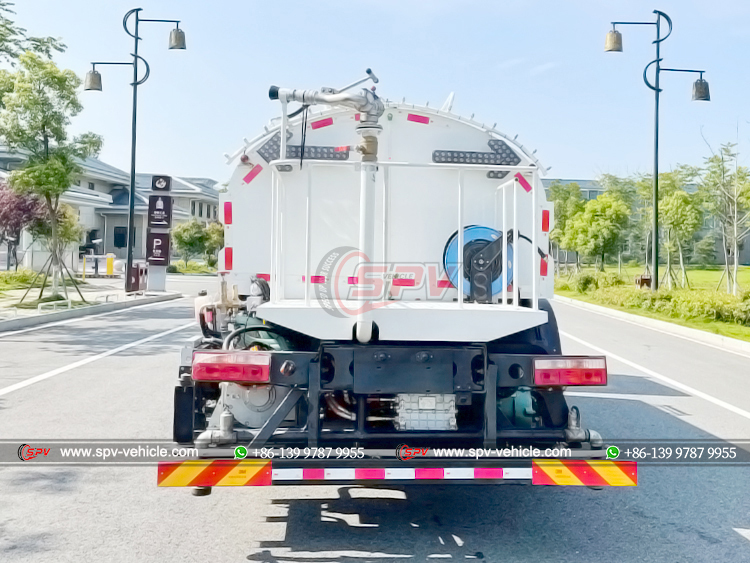

| DONGFENG 4x2 Street Washing Truck - Rear |
