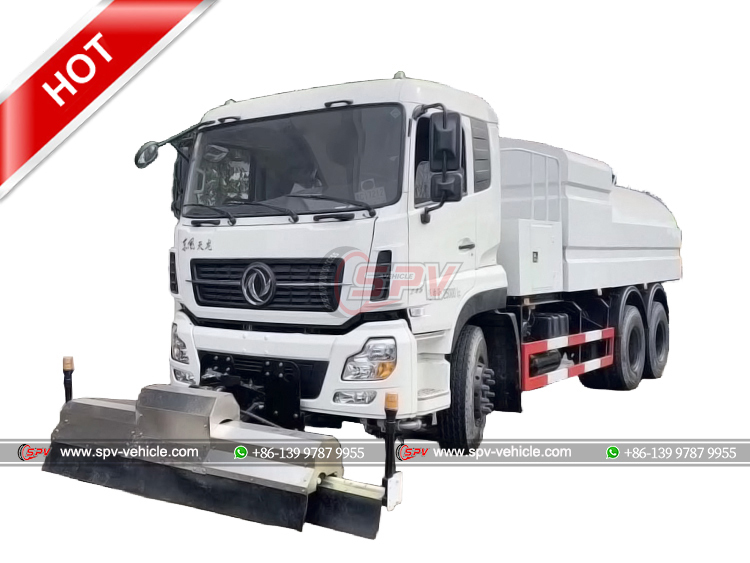

| High-pressure Road Jetting Truck DONGFENG (10,000L) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 8950 *2550 *3450 mm | |
| GVW / Kerb Weight | 25,000 kg /13,800 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS engine | |
| Power | 210 Ps (154 KW) | |
| Displacement | 6200 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | Manual, 9 speed forward, 2 reverse | |
| No. of Axles | 3 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h |
|
| Paint | Metallic paint | |
| Superstructure | Water Tank Capacity | 10,000 Litres (About 3,200 gallons) |
| High Pressure Pump | Imported Italian high pressure plunge pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 120 L/min @ 10MPa | |
| Cleaning Speed | 3-20 km/h | |
| Cleaning Width | 2.5-3.5 m | |
| Deflection Angle |
30°(left and right)
|
|
| Auxiliary Engine | Jiangxi engine (ISUZU technology)77 Hp /57 KW | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Stainless steel water tank.. ** Elevating Platform. ** High cannon. |
|
 |
 |

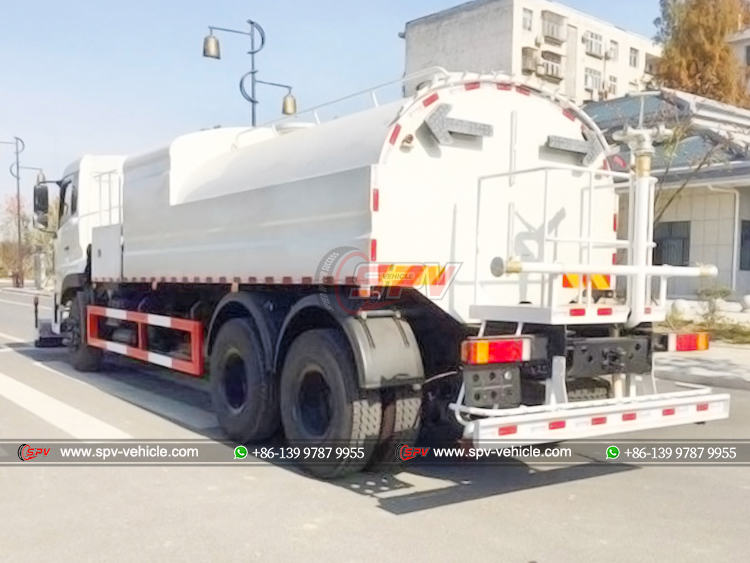

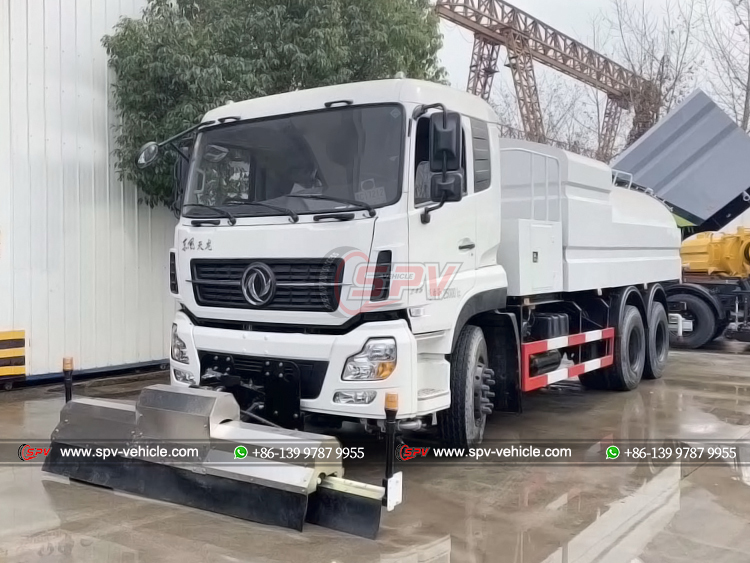

| DONGFENG 3 Axles Street Jetting Truck - Front Left | DONGFENG Heavy-duty Street Maintantion Truck - Rear Left |
 |
 |

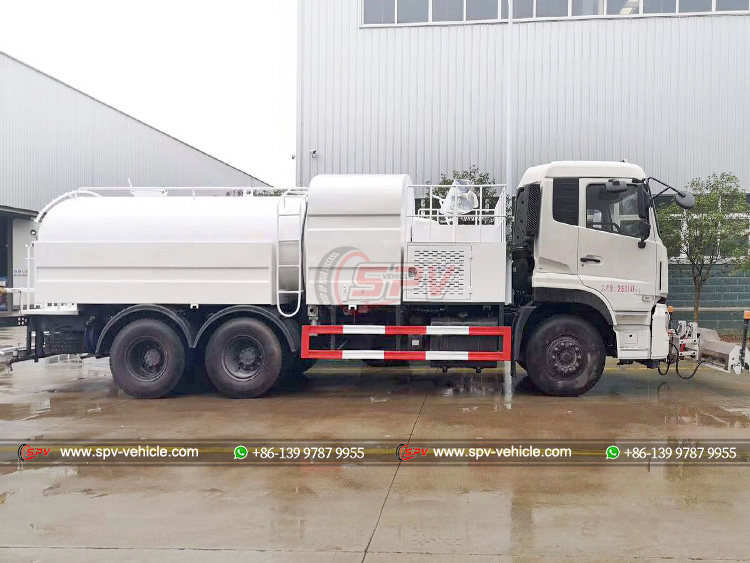

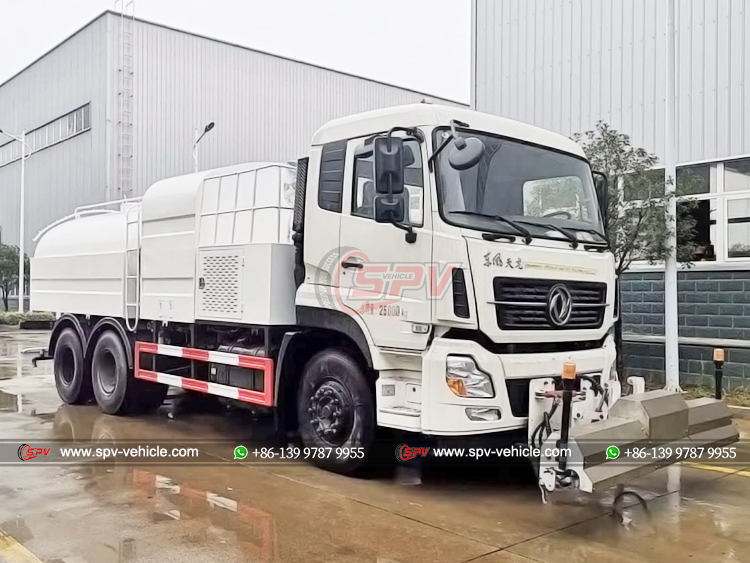

| DONGFENG 6x4 Pavement Flushing Truck - Front Right | DONGFENG High-pressure Road Washer - Right |
 |
 |

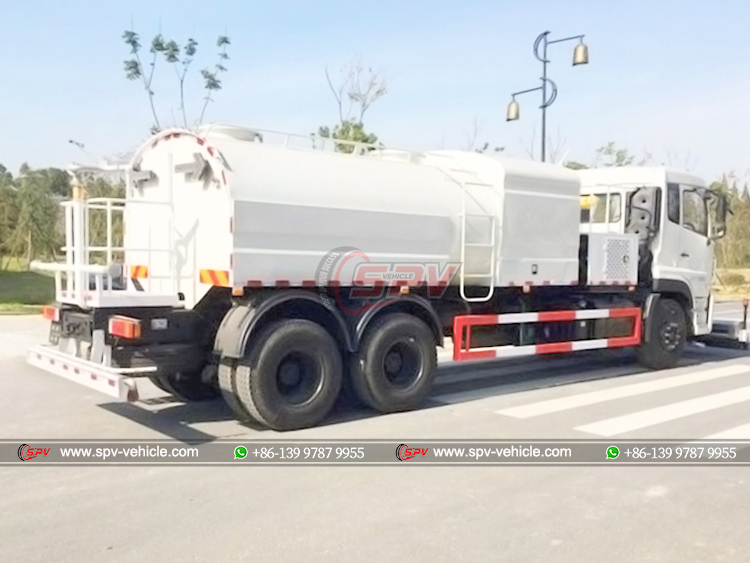

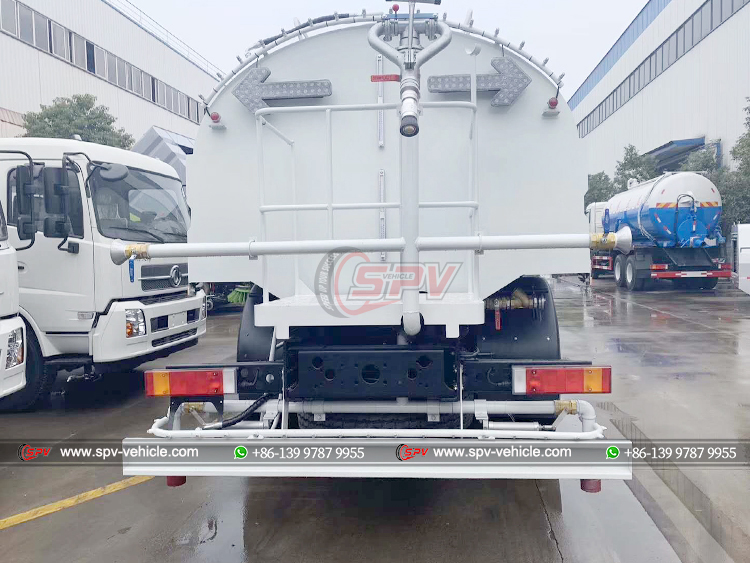

| DONGFENG 6x4 High Jetting Road Cleaning Truck - Rear Right | DONGFENG 10 Wheels High Pressure Road Flushing Vehicle - Rear |
