Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| 6 Tons Hook Lift SKD | ||
| Superstructure |
Loading Capacity | 6 Tons |
| Self Weight | 630 kgs | |
| Truck GVW Should be | At least 8 Tons | |
| Container Length(LR) | Around 3.5-4.0 m | |
| Hook Height(H) | 930 mm | |
| G-Length(L) | 3250 mm | |
| Sliding Distance(S) | 600 mm | |
| Self-discharging Incline Angle | 48° | |
| Lifting Time | ≤60S | |
| Unloading Time | ≤60S | |

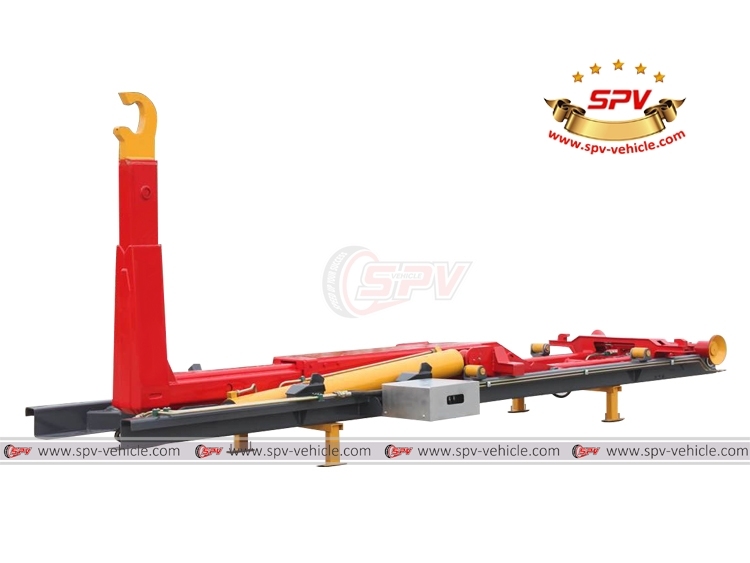

| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system …….. |
||
 |
 |

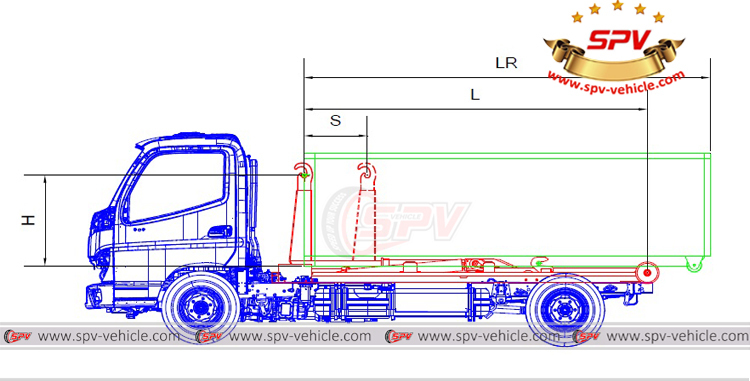

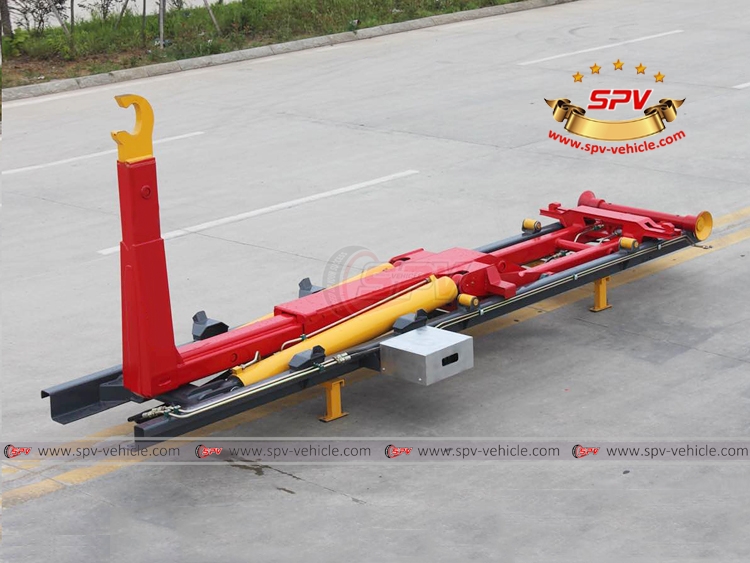

| 6 Ton Hook Loader Truck Drawing | Hook Lift SKD - Front Left |
 |
|

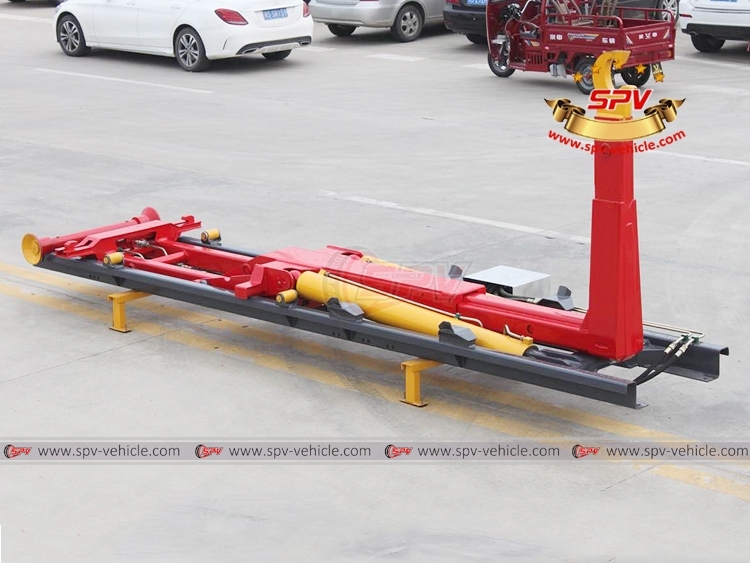

| Hook Arm SKD - Front Right |
