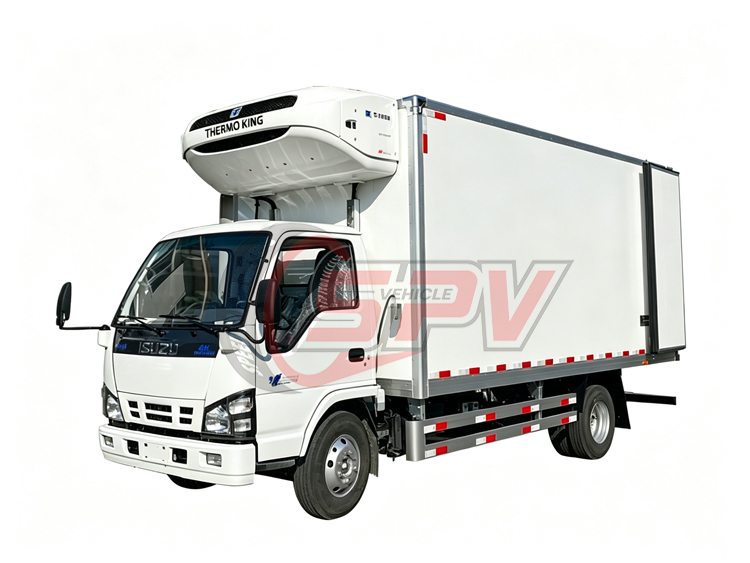

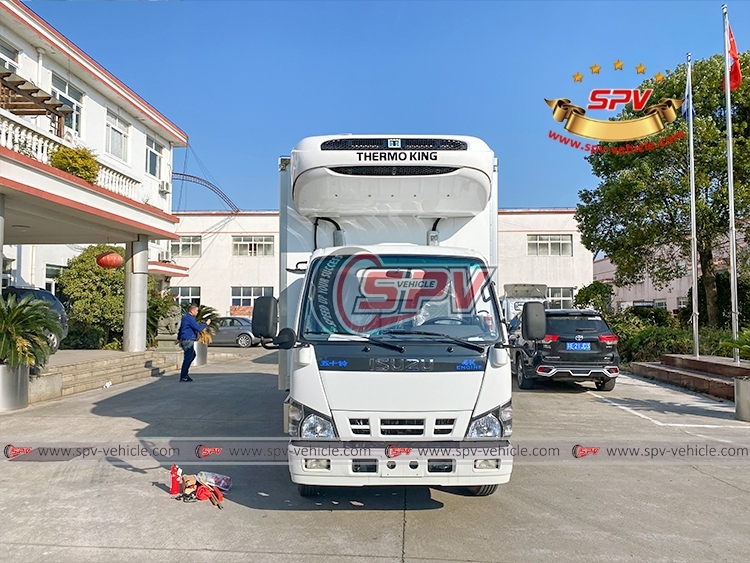

Name: 5 Ton Refrigerator Truck ISUZU
Brand: SPV-Vehicle - A Professional Special Purpose Vehicle Manufacturer from

Function:
Refrigerator Truck (also called refrigerated wagon, chiller van truck, cold room truck, reefer box truck, refrigerated truck, refrigerated truck, freezer truck, refrigerator lorry, refrigerated box car, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle, cold chain logistics truck, ice truck, ice van truck.) is used to carry perishable stuff at specific temperatures.
The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -20°) for your option.

our refrigerator wagons use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.

Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:

Refrigerator Truck ISUZU ( 5 Tons Cooling System Truck)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	6660 * 2220 * 3150 mm
	GVW / Kerb Weight	7,300 kg / 3,400 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	130 Hp (95 KW)
	Displacement	2999 ml
	Emission Standard	Euro V
Chassis	Drive Type	4x2, left hand drive, power assisted steering
	Transmission	Manual 5-speed forward, 1 reverse
	No. of Axles	2
	Tyre Specification	7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Box Capacity	5 Tons
	Box Internal Dimension	420022002300mm
	Box Material	Sandwich type, inside and outside fibreglass with 78mm polyurethane foaming, with aluminium trimming
	Van Doors	Two rear doors, fully openable and one side door
	Refrigerator Machine	World famous Thermo King brand, indpendent diesel engined driving, with electric standby and in cabin control Refrigerant: R-404A
	Van Inside	Double Temperature Movable partition inside container divided by equal compartment with temperature control to maintain first compartment -18°C and second compartment 0°C to +5°C, digital controller inside the driver cabin, Polar curtains with stainless steel rail, hooks for the door and Drain points with tap shall be provided. Lights.
	Lowest temperature	-20°
	All other standard accessories: Tool kit, English manual……
Optional	Box material could be fibreglass, aluminum or stainless steel. Refrigerator brand: International brand such as: Thermo King, Carrier; Chinese top brand : Kexue, Hanxue, Xinhuatai, Bingsen as well...... Refrigerator type: non-independent and independent type. Temperature data logger, printer and temperature alarm. Slide rail and meat hook for special use. Extra side door. Backup system: Tail lift** 1 ton, 1.5 tons......

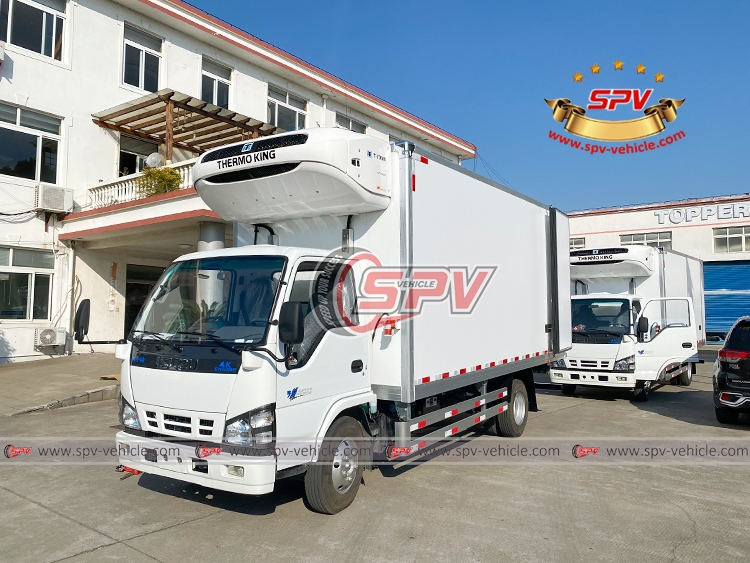

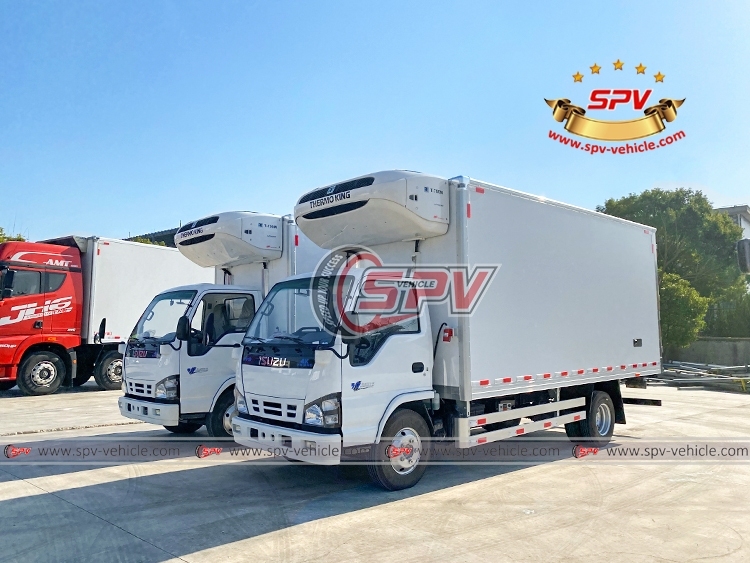

2 Units of Freezer Box Trucks ISUZU - Front Left	5 Ton Reefer Delivery Truck ISUZU - Front Left

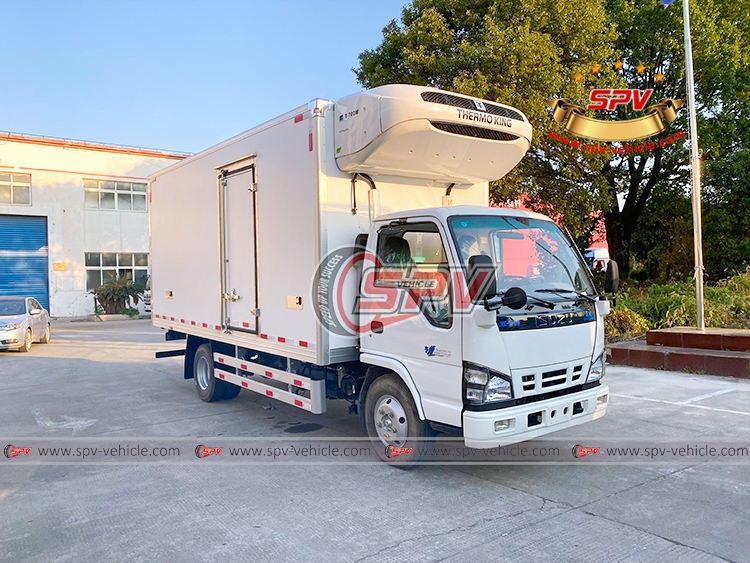

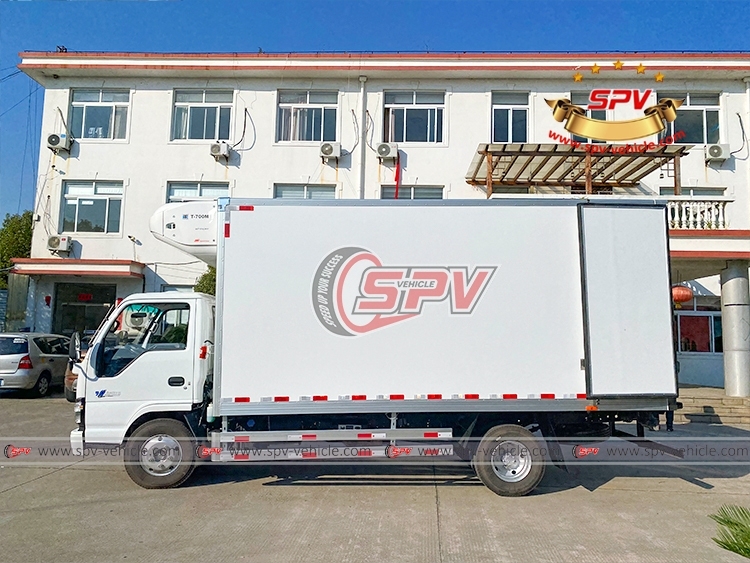

5 Ton Chiller Van Truck ISUZU - Left	Truck With Refrigeration Unit ISUZU - Front Right

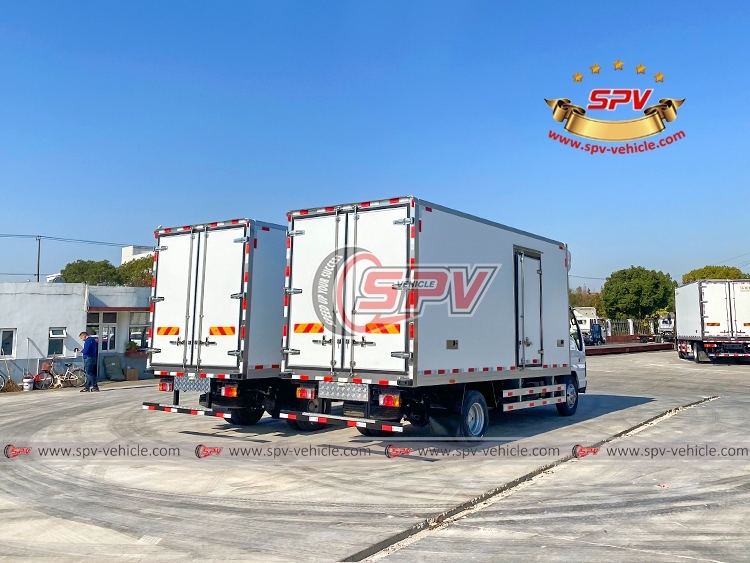

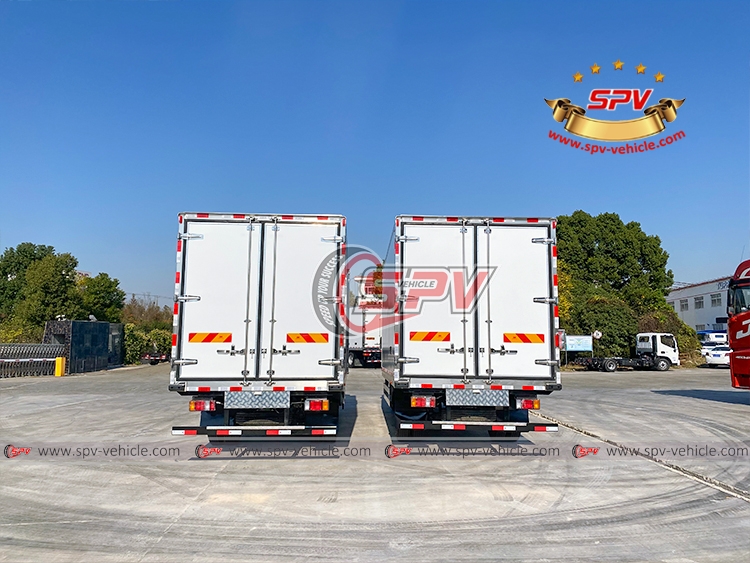

5 Ton Temperature Control Truck ISUZU - Rear Right	2 Units 5 Ton Refrigerated Truck ISUZU - Rear

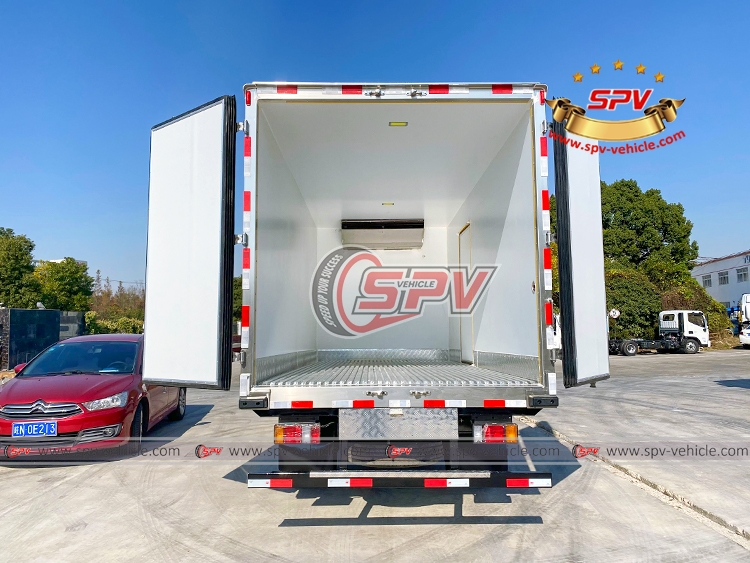

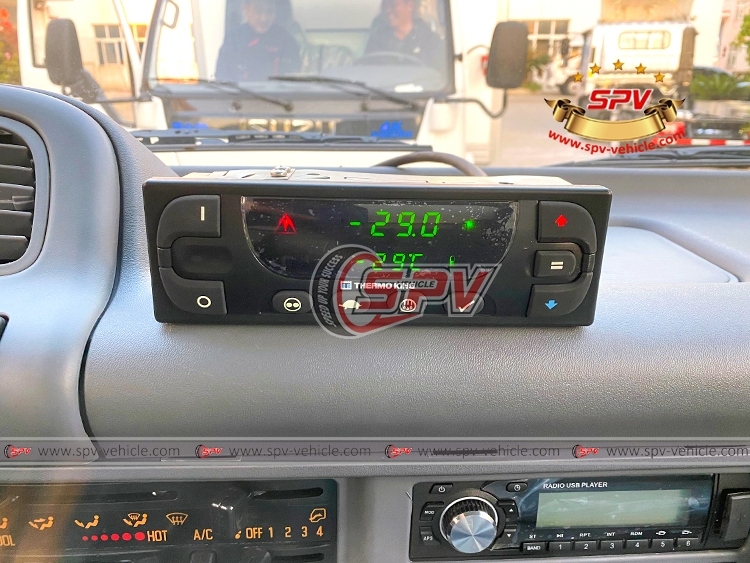

5 Ton Reefer Van Truck ISUZU - Van Inside	Refrigerator Truck ISUZU - Temperature Pannel
