| Fueling Truck for Helicopter SINOTRUK (5,000 litres fuel supply truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 8500 * 2500 * 3210 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,850 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Sinotruk engine | |
| Power | 266 Hp ( 196 KW ) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4x4, left or right hand drive |
| Transmission | Manual, 10 speed forward, 2 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 12.00R20, Radial tyre, super wearable | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres (About 1,300 gallons) |
| Tank Material | Stainless Steel or Aluminium | |
| Pump | Fuel pump equipped for overhead delivery | |
| Liquid to be loaded | Helicopter Kerosene for helicopter | |
| Tank Top | 1. Top Euro-standard Explosion Proof Manhole, preventing fuel leakage in case the tanker is over rolled. 2. Pressure/vacuum vent integrated, adjusting air pressure in the tank to keep tank safe. 3. Anti-fill sensor. Aluminium handrail on tank top. |
|
| Loading | From top manhole or bottom loading system API. With vapor recovery system. | |
| Tank Bottom | Emergent bottom valve(stainless stee) equipped. Preventing fuel leakage in case of accident. | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
 |
 |

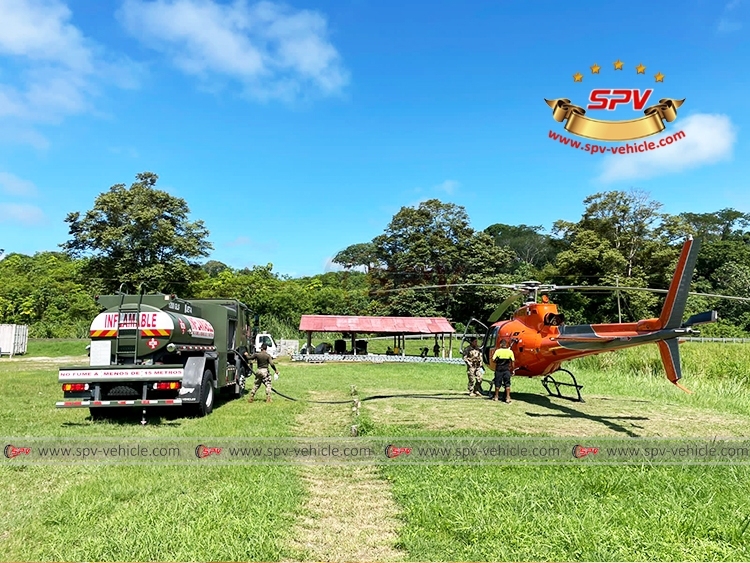

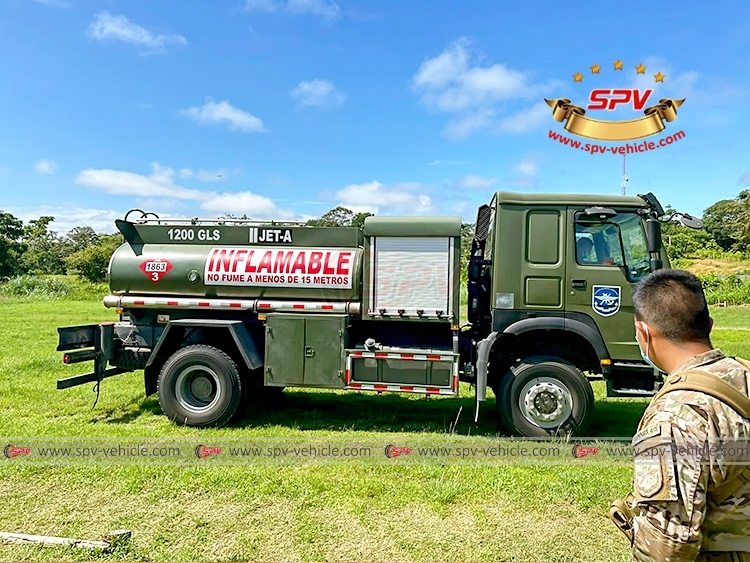

| SPV Helicopter DispensingTruck Working in Panama | SPV 4x4 Helicopter Refueling Truck Sinotruk in Panama |
 |
 |

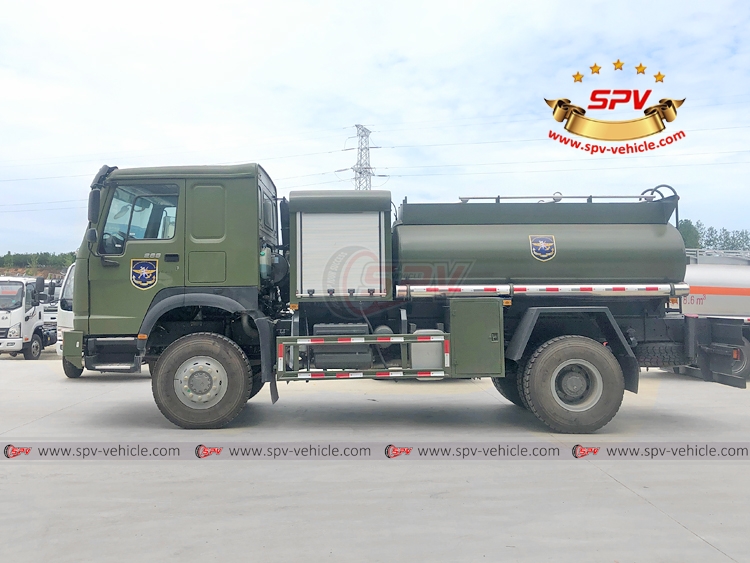

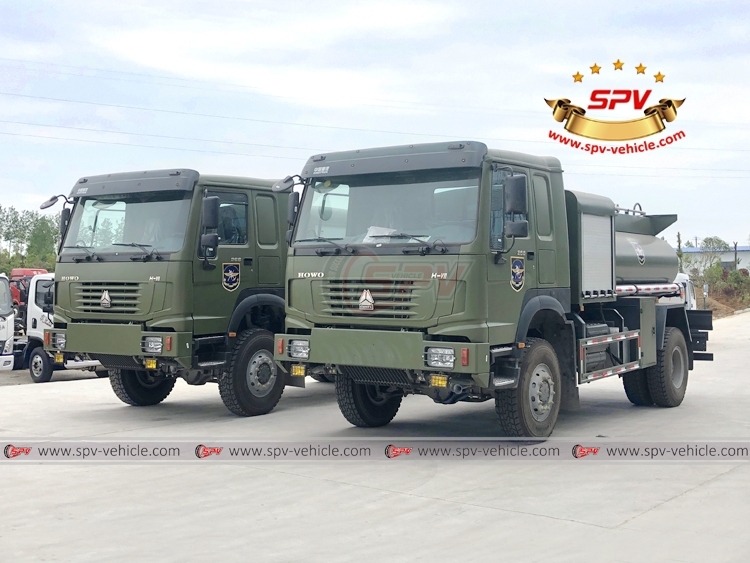

| 5,000 Litres Fuel Truck for Helicopter Sinotruk Off-road - Front Left | 4x4 Off-Road Helicopter Refueler Truck Sinotruk - Left |
 |
 |

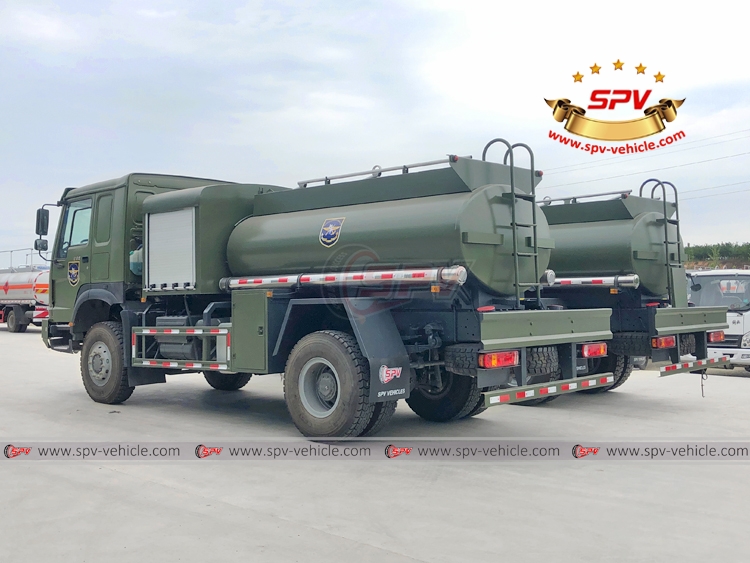

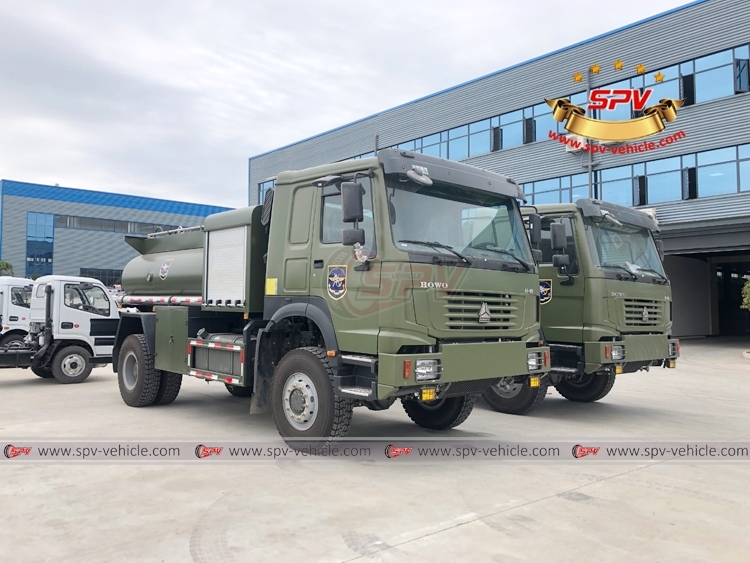

| 4x4 Sinotruk Fuel Supply Truck for Helicopter - Rear Left | 4x4 Fuel Delivery Truck for Helicopter 5,000 Liters - Front Right |
 |
 |

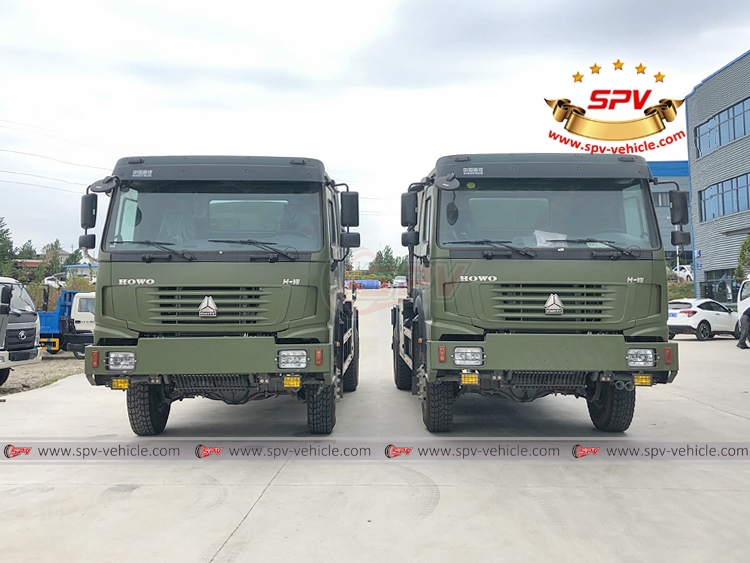

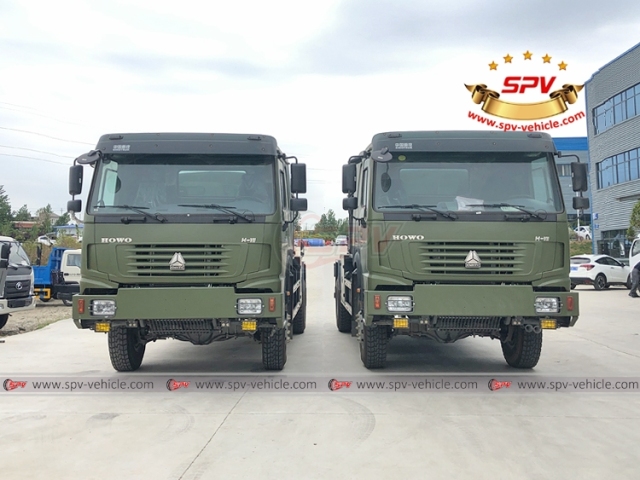

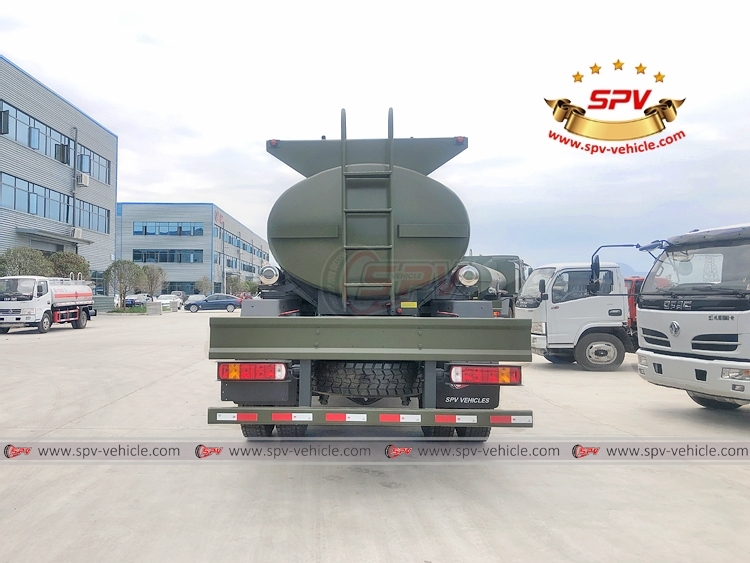

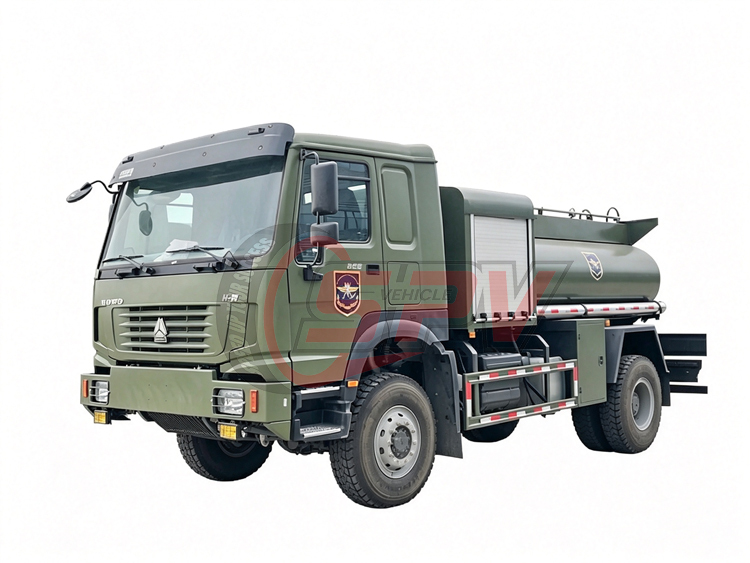

| 5,000 Litres Helicopter Refueling Trucks SINOTRUK 4x4 - Front | 5,000 Litres Helicopter Dispensing Vehicle Sinotruk 4x4 - Rear |
 |
 |

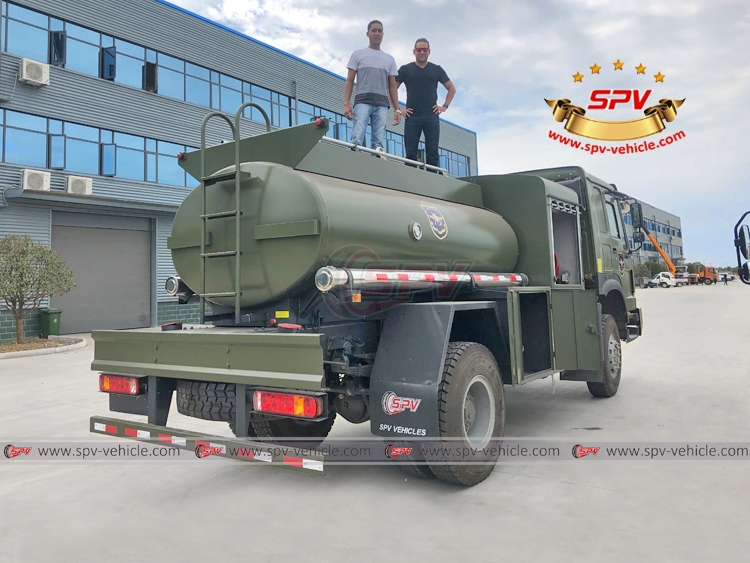

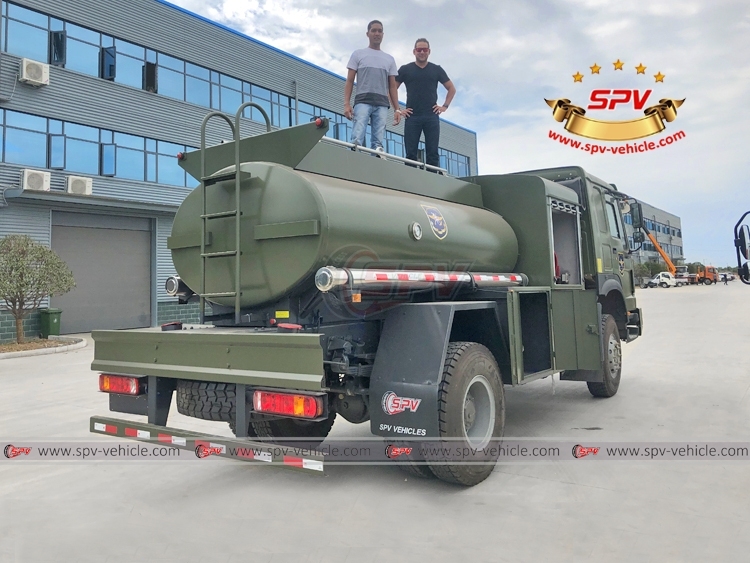

| Clients Inspection SPV for 4x4 Refuler Truck Sinotruk | Clients Inspection SPV for Helicopter Refueling Truck Sinotruk |
 |
 |

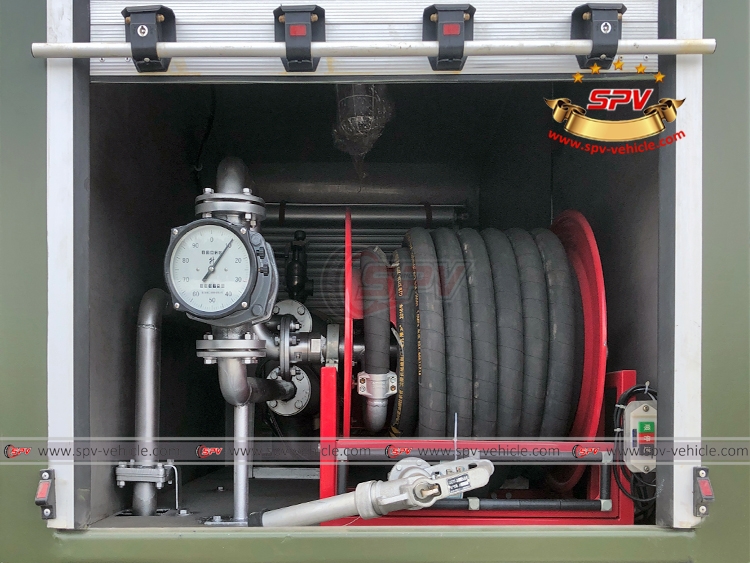

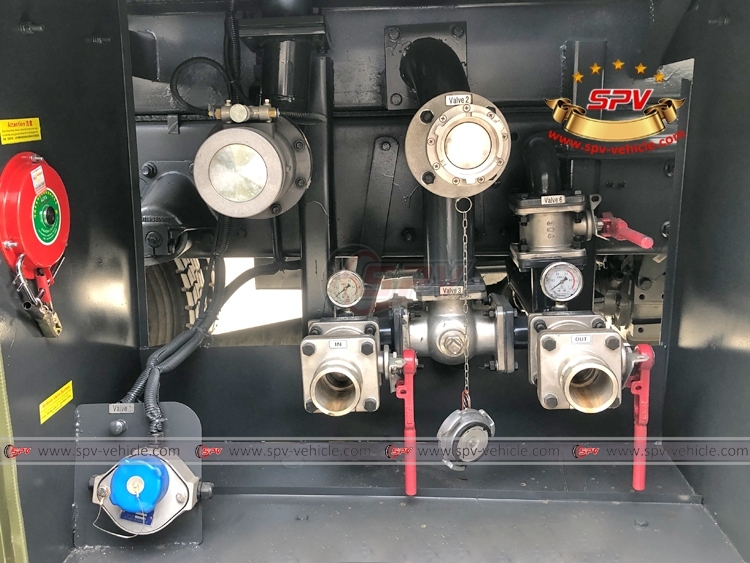

| 5,000 Litres Helicopter Refueling Truck Sinotruk(4x4) - Discharging Box | 5,000 Litres Helicopter fuel Truck Sinotruk (4x4) - Hose Reel |
 |
 |

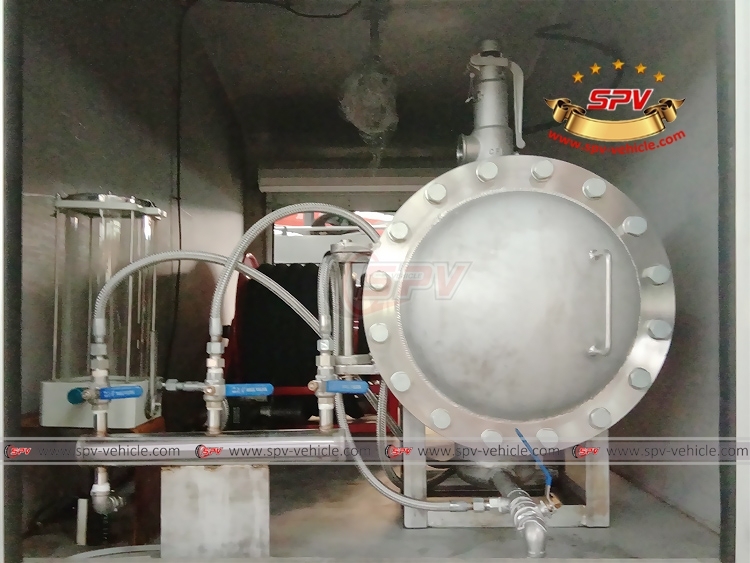

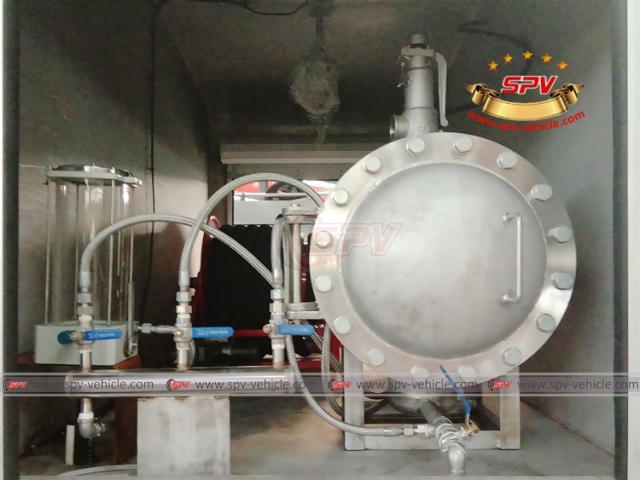

| 4x4 Helicopter Refueling Truck - Filteration System, Filter Valve and Sample Valve | 2 Units of Sinotruk 4x4 Helicopter Refueling Trucks - Loading into RORO Vessel |
