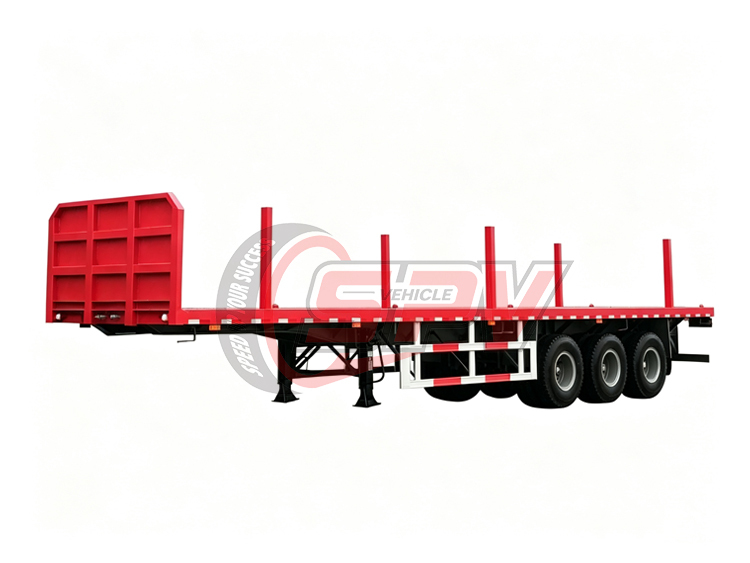

| 40 Ton Flatbed Semi-trailer with Stake | ||
General |
Trailer Brand | SPV |
| Overall Dimension | 12500 * 2500 * 1600 mm | |
| GVW / Kerb Weight | 48,000 kg / 7,500 kg | |
Superstructure |
Payload | 40,000kg |
| Floor | 8 mm thickness strengthened steel | |
| Twist Locks |
Twelve retractable ISO standard type twist locks | |
| Hooks |
Eleven hooks on each side | |
| Kingpin | 2 or 3.5 inch | |
| Landing Gear | 28 Ton capacity, JOST optional | |
| Suspensions | Multi-leaf spring suspensions | |
| Brake System | Dual air brake system WABCO relay emergency valve |
|
| Axles | 3 axles, FUWA or BPW brand | |
| Tyre | 12R22.5 | |
| No. of Tyres | 12 tyres with 1 spare tyre | |
| Paint | Automotive metallic paint | |
| Optional | ** Platform could be flat steel plate or checked steel plate. ** BPW axles, JOST landing gears, Air suspension, ABS… ** Tube or tubeless tyres, off-road single tyre for bad roads. |
|
 |
 |

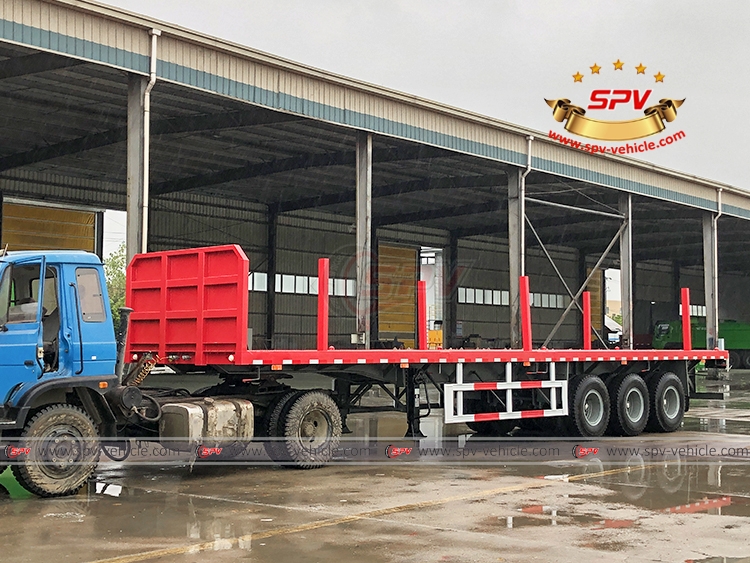

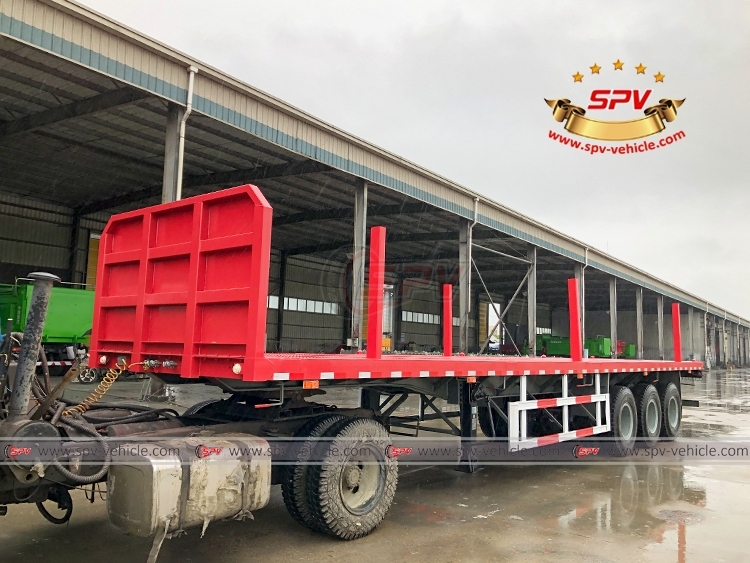

| 3 Axles Semitrailer with Stakes - Front Left | 3 Axles Removable Stake Trailer |
 |
 |

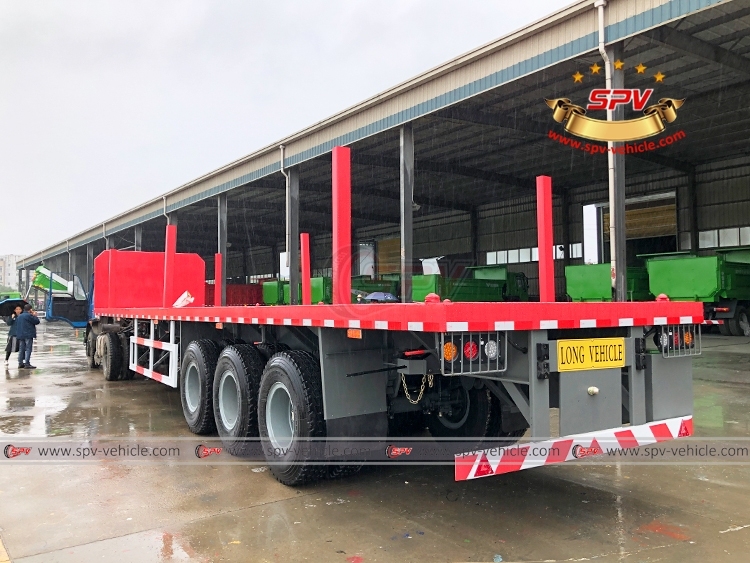

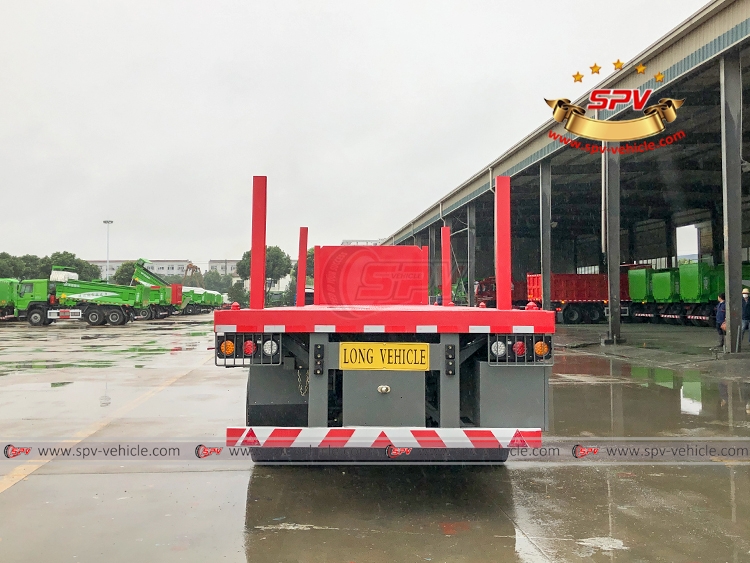

| 3 Axles Stake Flatbed Trailer - Rear Left | 3 Axles Flatbed Semitrailer with Stakes - Rear |
