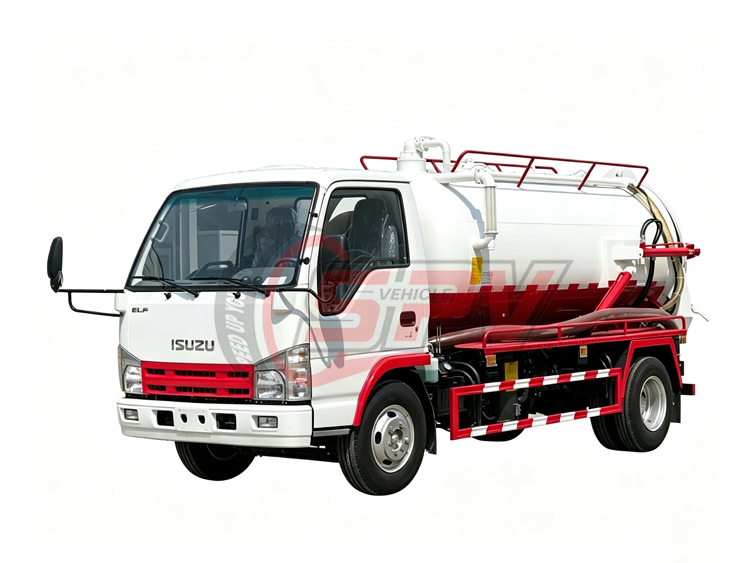

| Wastewater Suction Truck ISUZU (4,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5900 x 1900 x 2400 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,620 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 98 HP / 72 kw | |
| Displacement |
2771 ml |
|
| Emission Standard |
Euro IV |
|
| Chassis | Drive Type |
4x2, left hand drive |
| Transmission |
ISUZU Manual, 5 forward,1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
7.00R16 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Tank Capacity |
4,000 litres (about 1,000 gallons) |
| Tank Material |
Carbon steel |
|
| Suction Head |
6 m |
|
| Vacuum Pump |
High efficiency, vacuum rare up to 93%, quick suction and discharge |
|
| Hose |
High quality, wire strengthened hose |
|
| Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. |
||
| Rear door can be hydraulic opened for complete discharge of solid stuff. |
||
| All other standard accessories: Tool kit, English manual…… |
||
| Optional | ** Tank material could be mild steel, stainless steel… ** Italy vacuum pump is available. |
|
 |
 |

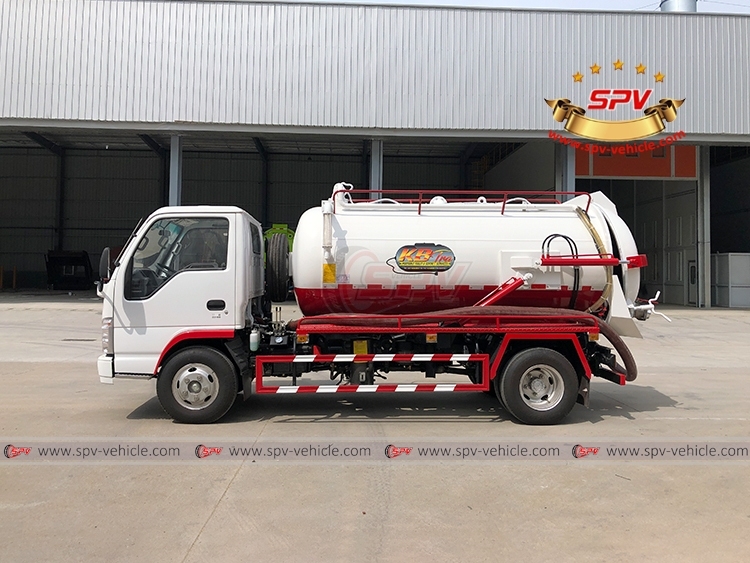

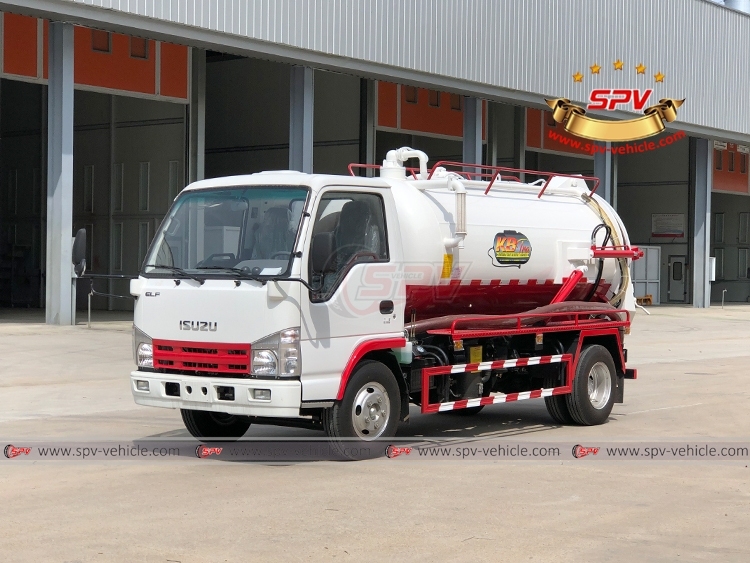

| 4,000 Litres Sewer Maintenance Truck ISUZU - Front Left | 4,000 Litres Cesspit Emptying Truck ISUZU - Left |
 |
 |

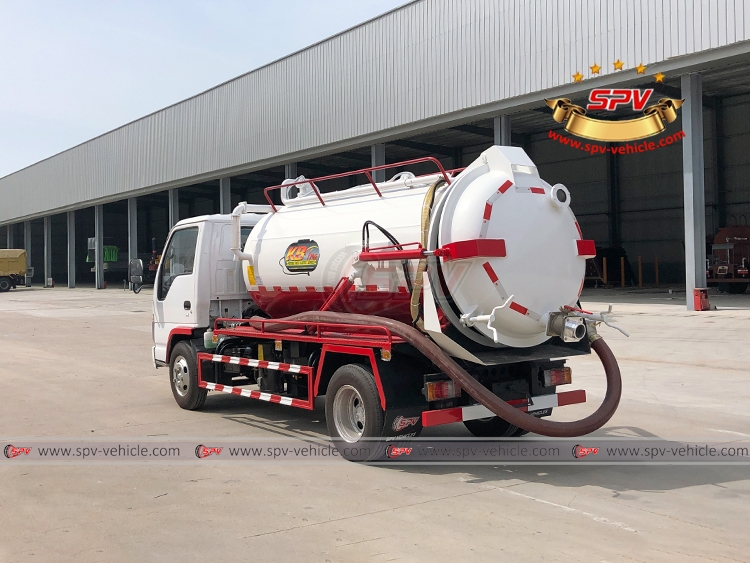

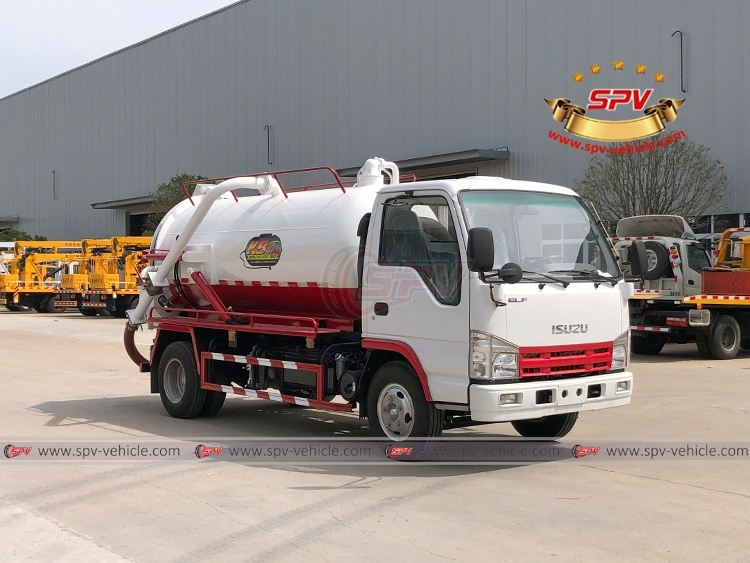

| 4,000 Litres Industrial Vacuum Tanker ISUZU - Rear Left | 4,000 Litres Sewage Suction Tanker ISUZU - Front Right |
 |
 |

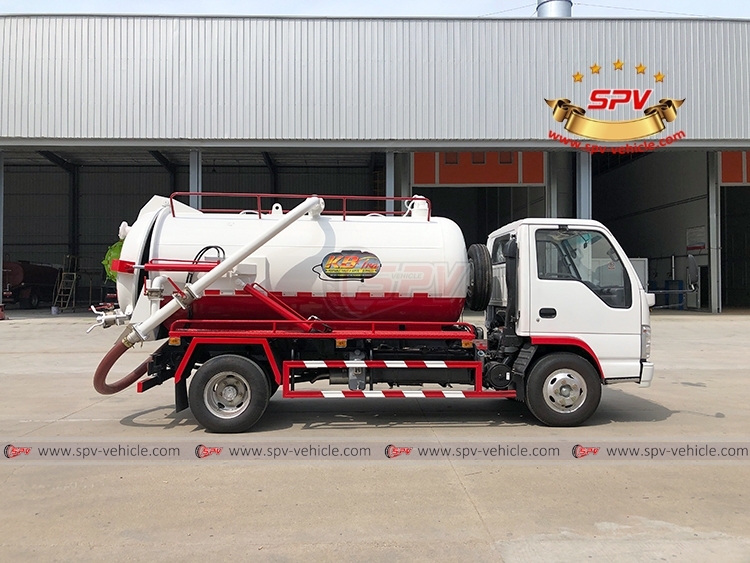

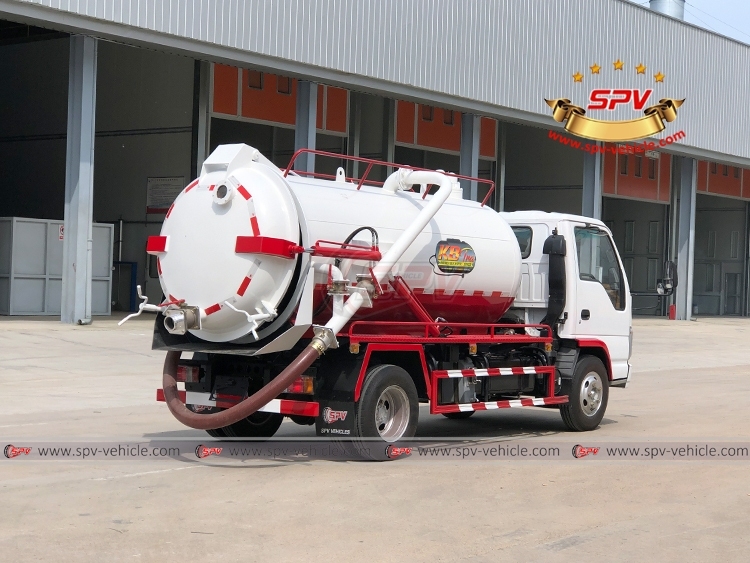

| 4,000 Litres Wastewater Collection Vehicle ISUZU - Right | 4,000 Litres Drain and Sewer Service Truck ISUZU - Rear Right |
 |
 |

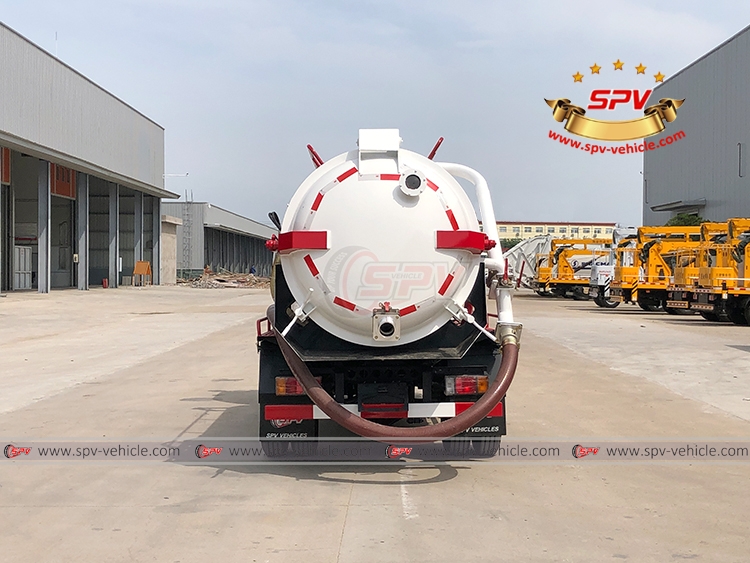

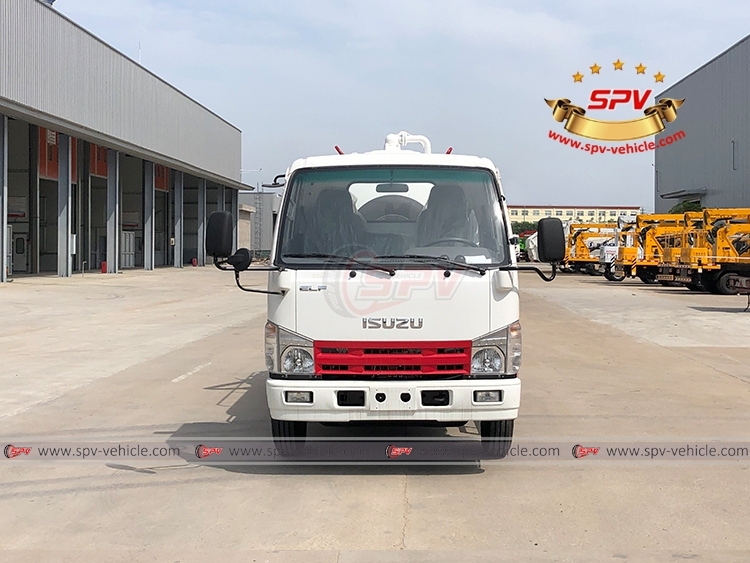

| 4,000 Litres Sludge Removal Truck ISUZU - Front | 4,000 Litres Sludge Vacuum Truck ISUZU - Rear |
 |
 |

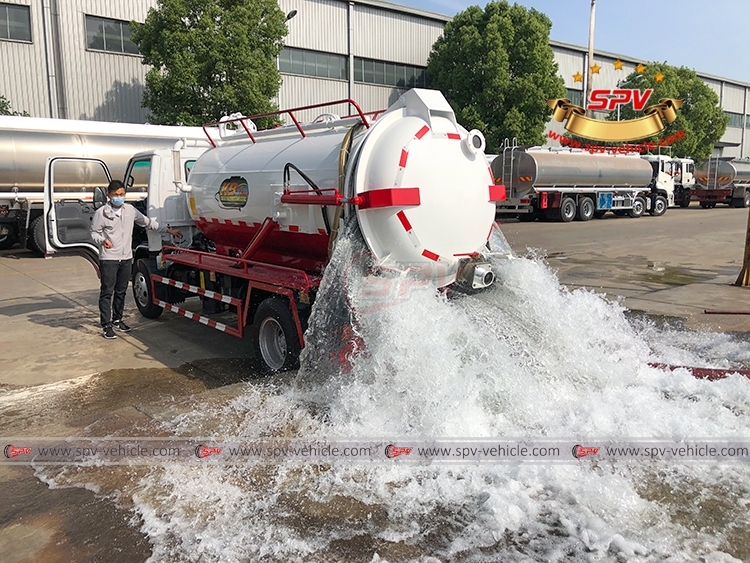

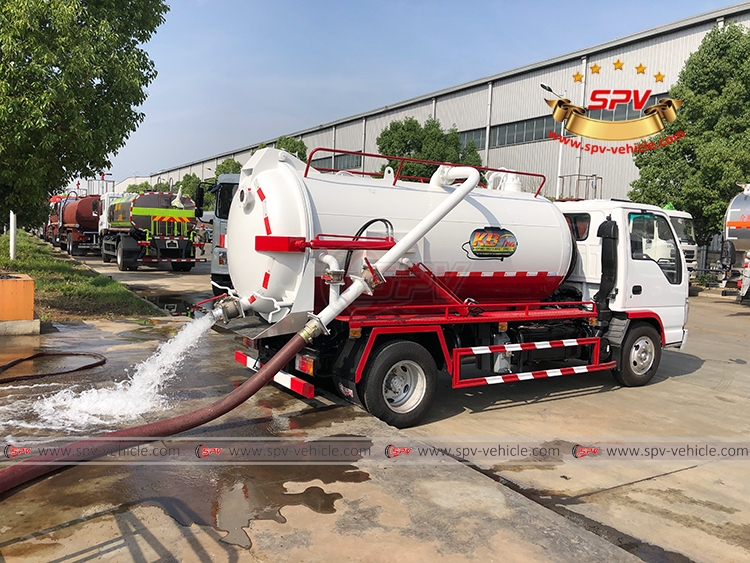

| 4,000 Litres Sewage Tanker Truck ISUZU - Discharging from Rear Lid | 4,000 Litres Sewage Pumping Truck ISUZU - Discharging from Valve |
 |
 |

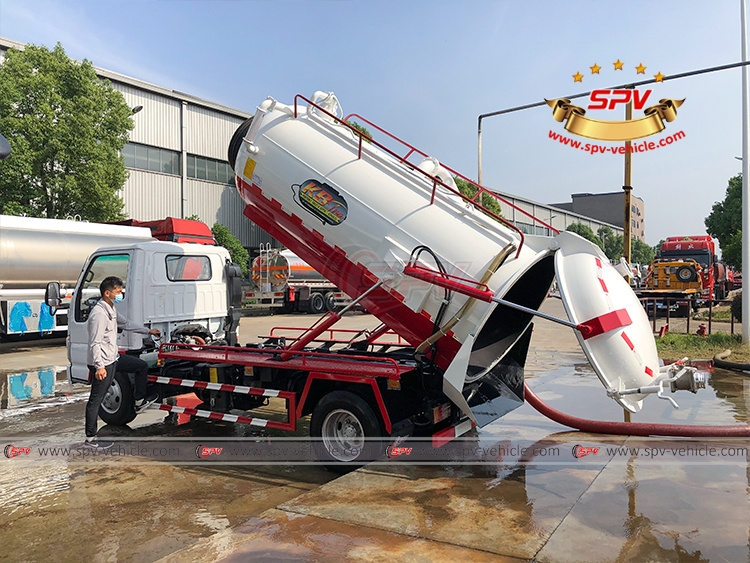

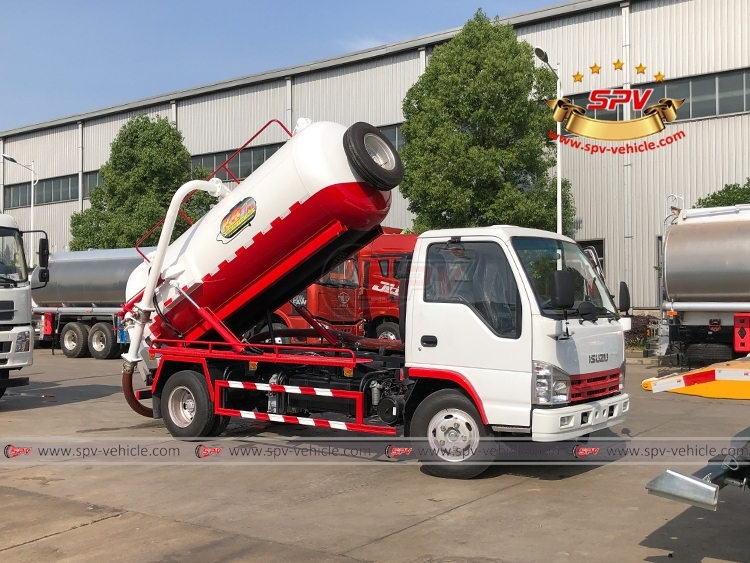

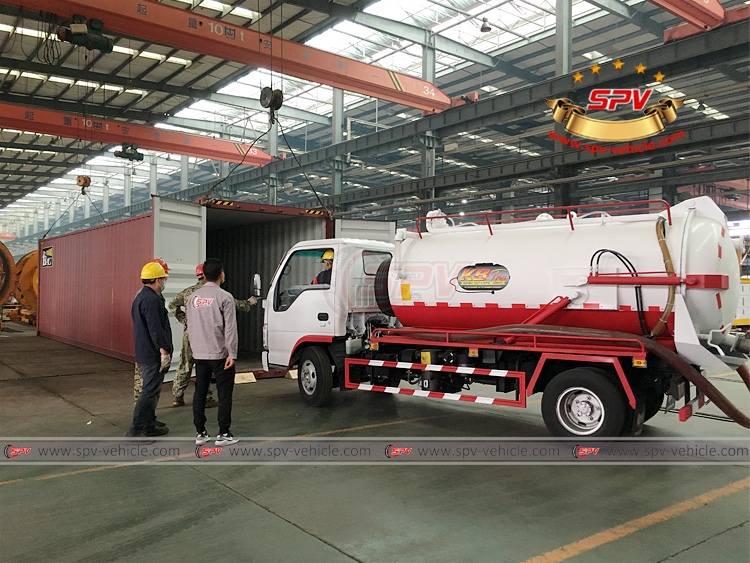

| 4,000 Litres Sewer Vacuum Extraction Truck ISUZU - Tank Lifting | 4,000 Litres Sewer Cleaning Truck ISUZU To St. Vincent and the Grenadines |

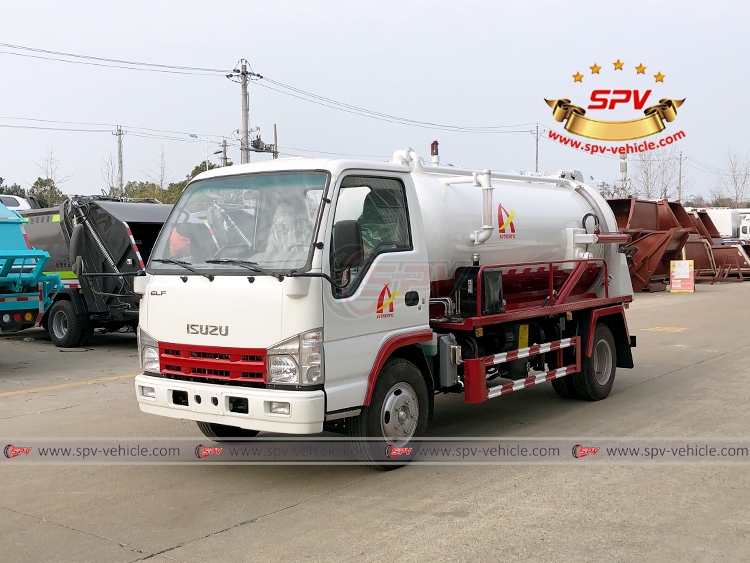

| To Myanmar 4,000 Litres Sewage Suction Truck ISUZU | |
 |
 |

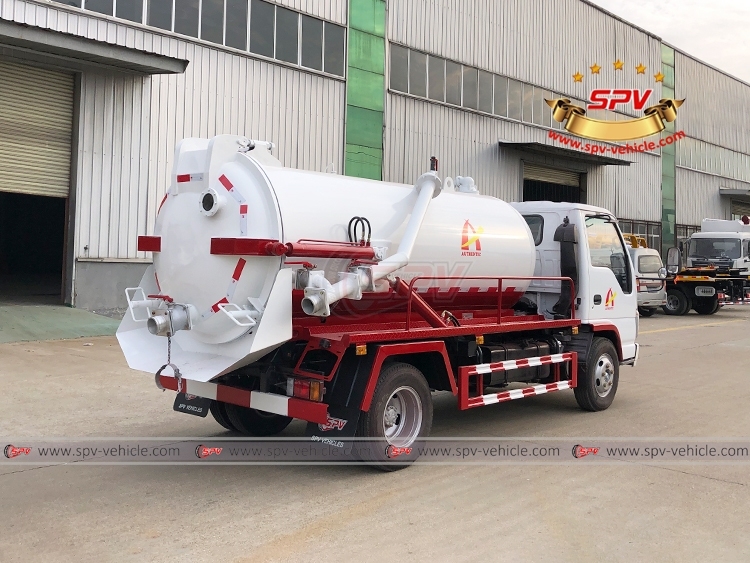

| 4,000 Litres Sewer Vacuum Truck ISUZU - Front Left | 4,000 Litres Sewage Suction Truck ISUZU - Rear Right |
