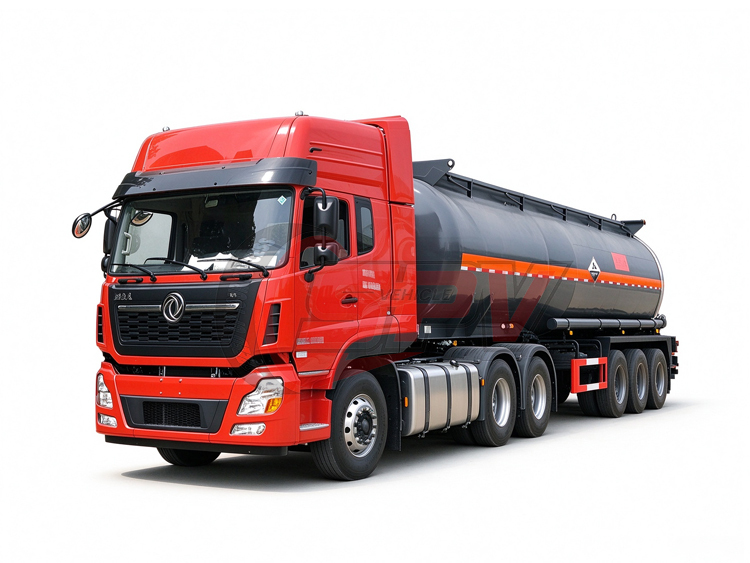

| Nitric Acid Tank Truck Trailer ( 35,000 litres) |
||
| General | Vehicle Brand | SPV |
| Overall Dimension | 10700 * 2500 * 3870 mm | |
| GVW / Kerb Weight | 40,000 kg / 8,400 kg | |
| Superstructure |
Tank Capacity | 35,000 Litres (9,200 gallons) |
| Tank Material | Stainless steel 5 mm for tank body, 6 mm for tank dished ends, 3 mm for inner baffles | |
| Manhole | Φ 500 mm, 2 sets | |
| Discharge Valve | 2 sets of Φ 4" stainless steel ball valve | |
| Discharge Outlet | 2 sets of Φ 3" discharge outlets | |
| Emergent Cut Vlave | Φ 4" stainless steel emergent cut valve at tank bottom to keep tank sealed in case accident. Much safer | |
| Piping | Φ 4" stainless steel seamless piping | |
| Discharge Hose | 2 pcs x 6 meters plastic hose(diameter 3") with stainless steel quick coupling | |
| Kingpin | 2” or 3.5” | |
| Landing Gear | 28 Ton capacity | |
| Suspension | Mechanical suspension, leaf springs | |
| Axles | 3 axles, 13Ton, FUWA brand | |
| Tyre | 11.00R20 | |
| No. of Tyres | 12 tyres + 1 spare tyre | |
| Electric System | 24 V, 7-pin socket, LED lamp, rear lighting direction lamp oragne, brake lamp red, warning lamp white, at rear left and right. Side orange lamps at interval for warning. | |
| Paint | Automotive metallic paint | |
| Inner baffles inside tank for prevention of longitudinal wave during moving. |
||
| All standard accessories: warning posters, side protection bar, rear bumpers, 2 spare tyre carriers, 1 tool box, lamps, mudguard, 3M reflective stickers... | ||
| Optional | ** Tank material could be stainless steel, aluminum, plastic…… ** It can be divided into many compartments to load different types of chemical liquid. ** Pump, pneumatic valve, level gauge, floating balll…. ** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS. ** Tube or tubeless tyres, off-road single tyre for bad roads, aluminum rim… |
|
 |
 |

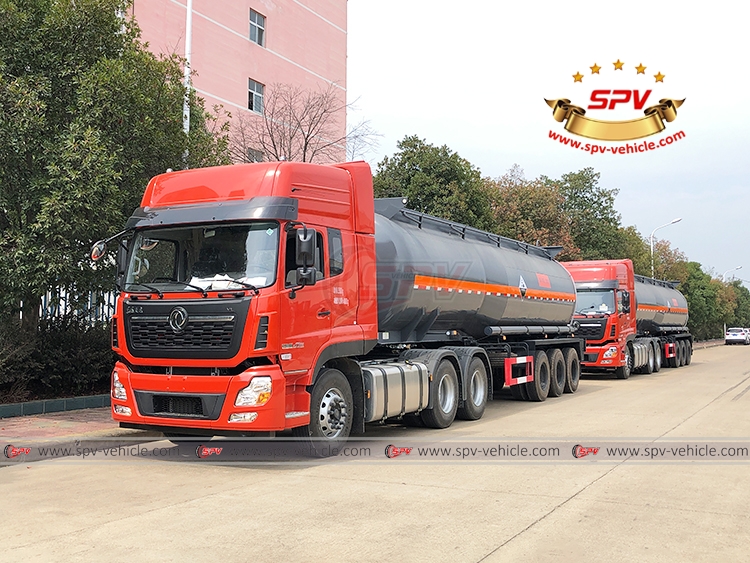

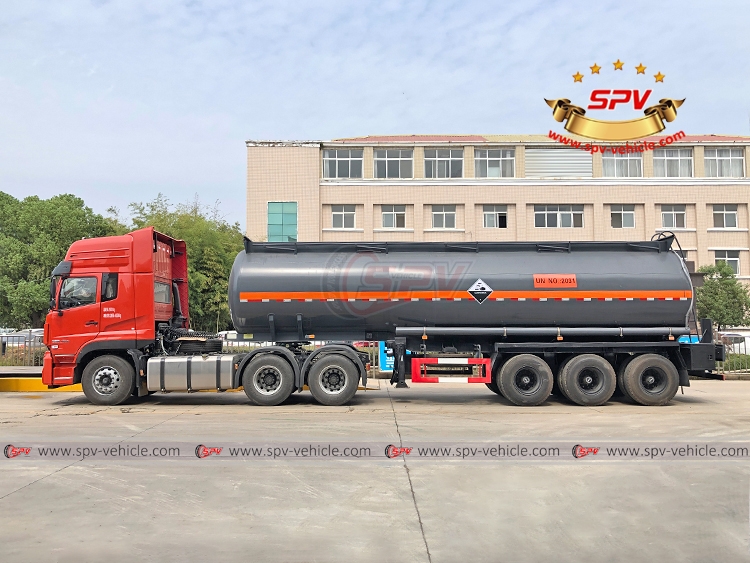

| 4 Axles Dilute Acid Tanker Trailer DONGFENG | 35,000 Litres Acid Tanker Semi-trailer DONGFENG - Left |
 |
 |

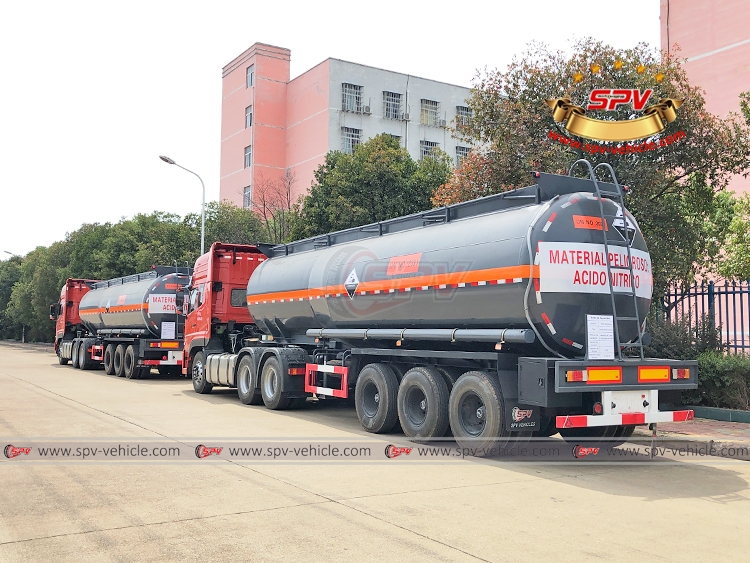

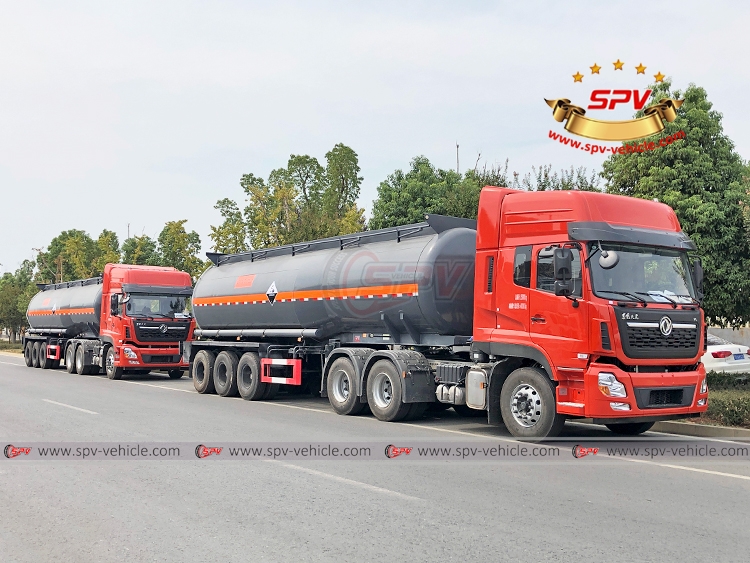

| Nitric Acid Transport Trailer Dongfeng 8x4 - Rear Left | 35,000 Litres Chemical Liquid Transport Trailer - Front Right |
 |
 |

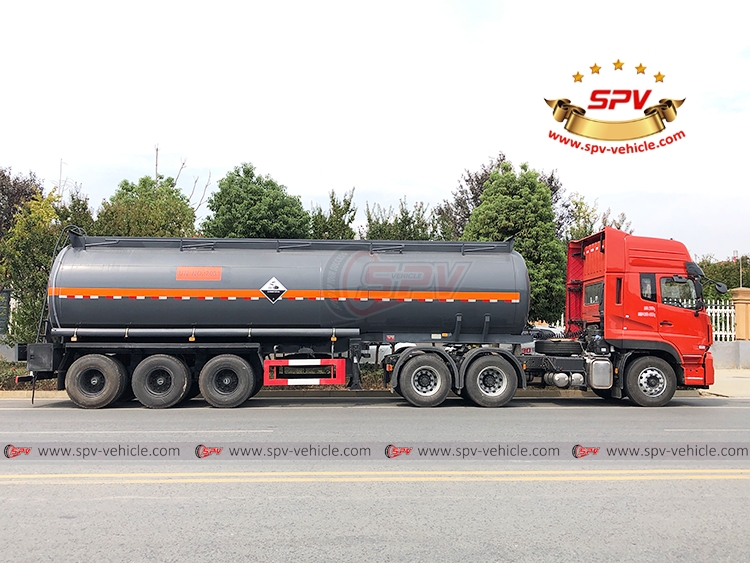

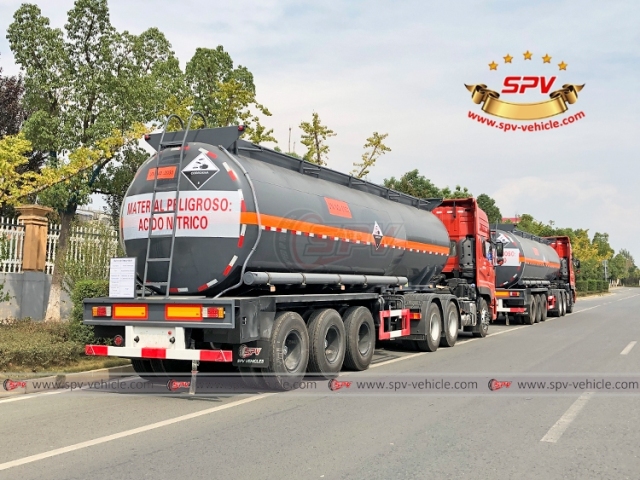

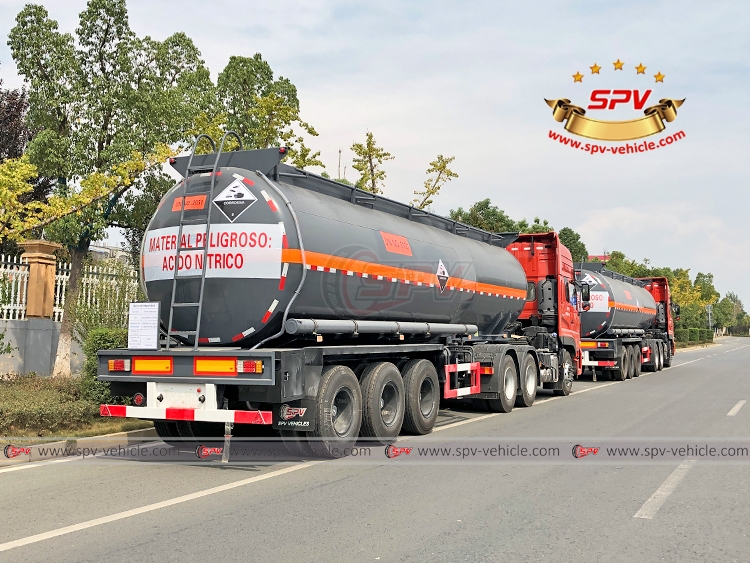

| 35,000 Litres Nitric Acid Tank Semitrailer DONGFENG - Right | 35,000 Litres Dilute Nitric Acid Tank Semitrailer - Rear Right |
 |
 |

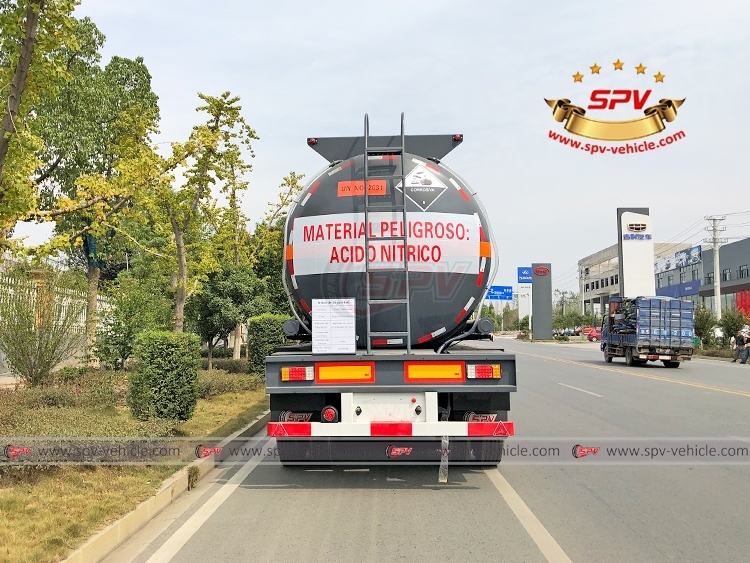

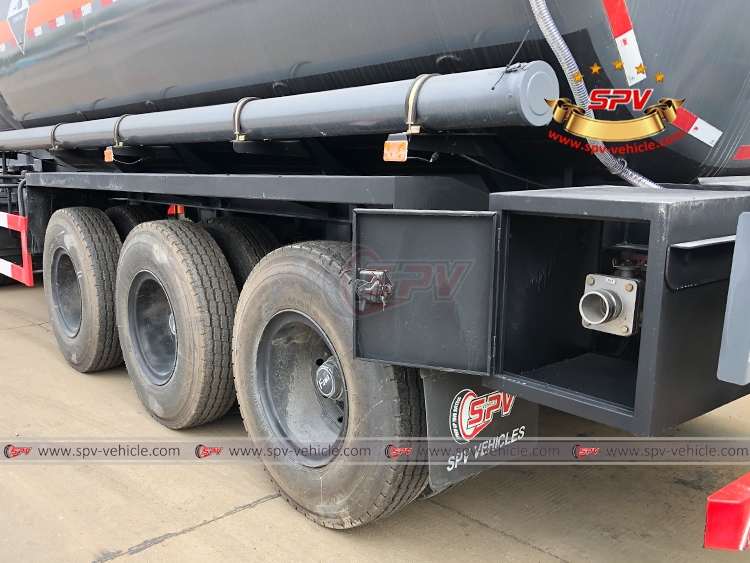

| Dilute Nitric Acid Tank Semitrailer - Discharge Box | 35,000 Litres Acid Tanker Semitrailer DONGFENG - Rear |
