Function:
Chemical distribution truck (also called Chemical transport truck, Chemical tank lorry, Liquid chemical truck, Hazardous chemical tanker, Stainless steel chemical tanker truck, Chemical delivery truck, Chemical liquid transport vehicle, Industrial chemical tanker, Chemical storage and transport truck, Acid transport truck, Alkali transport tanker, Chemical carrying truck, Chemical distribution truck,) is a special purpose vehicle designed for the safe transportation, storage, and delivery of liquid chemicals and hazardous materials. These trucks are widely used in the chemical industry, petroleum industry, water treatment plants, factories, and industrial transportation.
The primary function of an LPG tank truck is to transport liquefied gas from refineries, storage terminals, or filling plants to end users. These trucks are equipped with pressure-resistant tanks, safety valves, pumping systems, and emergency shut-off devices to ensure secure transportation.
Key functions include:
Transport Liquid Chemicals SafelyCarry acids, alkalis, solvents, industrial liquids, and other chemical products from factories to storage facilities or customers.
Prevent Leakage and ContaminationThe tank is specially designed with corrosion-resistant materials such as stainless steel or coated carbon steel to ensure safe transportation.
Efficient Loading and UnloadingEquipped with pumps, valves, and pipelines for fast filling and discharge of liquid chemicals.
Maintain Product QualitySome chemical tank trucks include insulation or special linings to maintain chemical stability during transport.
Handle Hazardous MaterialsDesigned according to safety regulations for transporting dangerous goods and flammable or corrosive liquids.
Features:
---- IVECO China chassis, perfect performance
---- IVECO engine, super powerful; reliable performance, no overhaul within 500,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
Chemical Distribution Truck IVECO China
( 8,000 litres)
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
IVECO China |
| Overall Dimension |
7800 * 2500 * 3400 mm |
| GVW / Kerb Weight |
15,900 kg / 7,600 kg |
| Cab |
Cab Capacity |
2 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
IVECO engine |
| Power |
310 Hp (228 KW) |
| Displacement |
8709 ml |
| Emission Standard |
Euro IV |
| Chassis |
Drive Type |
8x4, left hand drive |
| Transmission |
Manual, 12-speed forward, 2 reverse |
| No. of Axles |
4 |
| Tyre Specification |
11.002-20 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
80 km/h |
| Paint |
Metallic paint |
Superstructure
|
Tank Capacity |
25,000 Litres ( 6,600 gallons) |
| Tank Material |
Carbon steel lined with plastic |
| Flow Speed |
1000 litres / min |
| Delivery Head |
90m |
| Suction Head |
6m |
| Optional |
Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. |
 |
 |

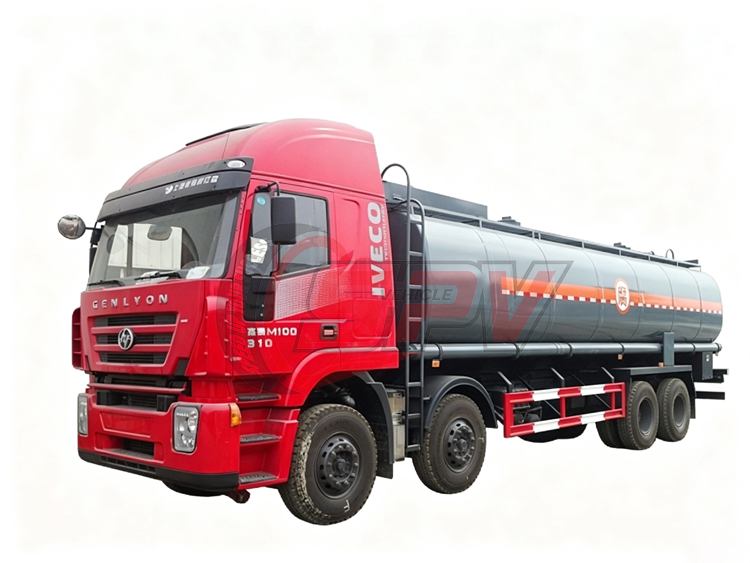

| 25,000 Litres Chemical Liquid Truck-IVECO - Front Left |

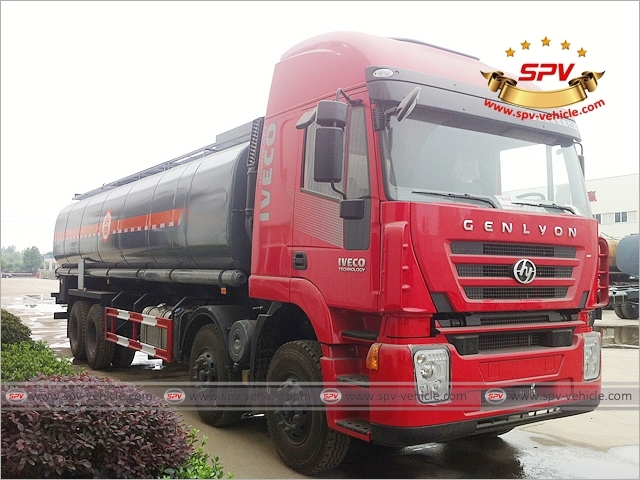

IVECO 8x4 Chemical Liquid Transfer Truck 25,000 Litres - Front Right |
