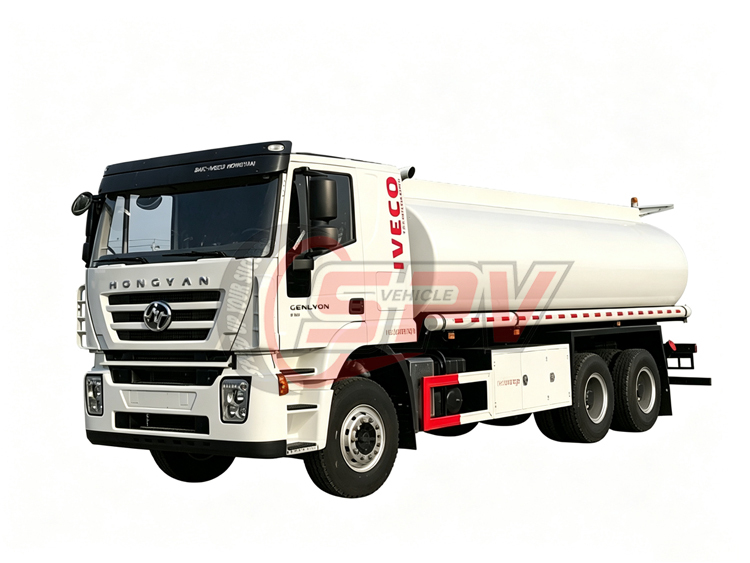

| Fuel Truck With Dispenser IVECO (18,000 litres fuel supply truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 9600 * 2500 * 3200 mm | |
| GVW / Kerb Weight | 25,000 kg / 12,760 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | IVECO CURSOR engine | |
| Power | 290 Ps (213 KW) | |
| Displacement | 8709 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 6x4, left or right hand drive |
| Transmission | Manual, 9 speed forward, 1 reverse | |
| No. of Axles | 3 | |
| Tyre Specification | 11.00R20, Radial tyre, super wearable | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 18,000 Litres (About 4,800 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Liquid to be loaded | Helicopter Kerosene for helicopter | |
| Tank Top | 1. Top Euro-standard Explosion Proof Manhole, preventing fuel leakage in case the tanker is over rolled. 2. Pressure/vacuum vent integrated, adjusting air pressure in the tank to keep tank safe. 3. Anti-fill sensor. Aluminium handrail on tank top. |
|
| Loading | From top manhole or bottom loading system API. With vapor recovery system. | |
| Tank Bottom | Emergent bottom valve(stainless stee) equipped. Preventing fuel leakage in case of accident. | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
| To Mali - 18,000 Litres Fuel Truck Mounted Dispenser IVECO | |
 |
 |

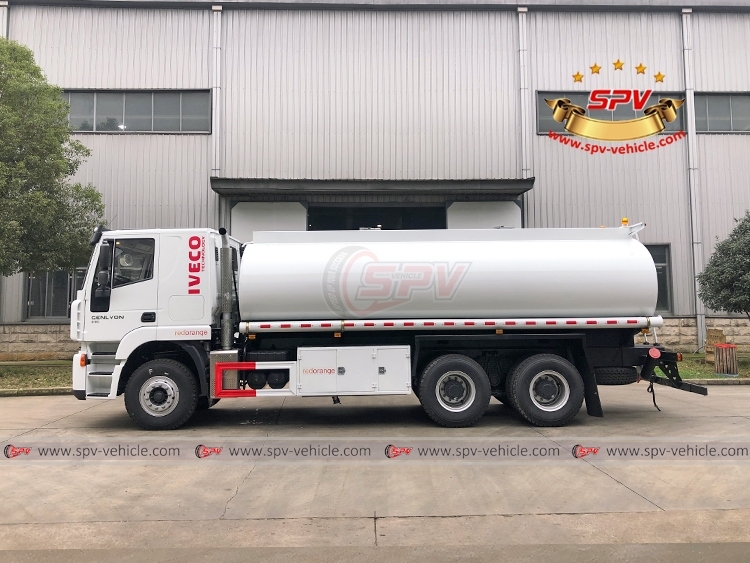

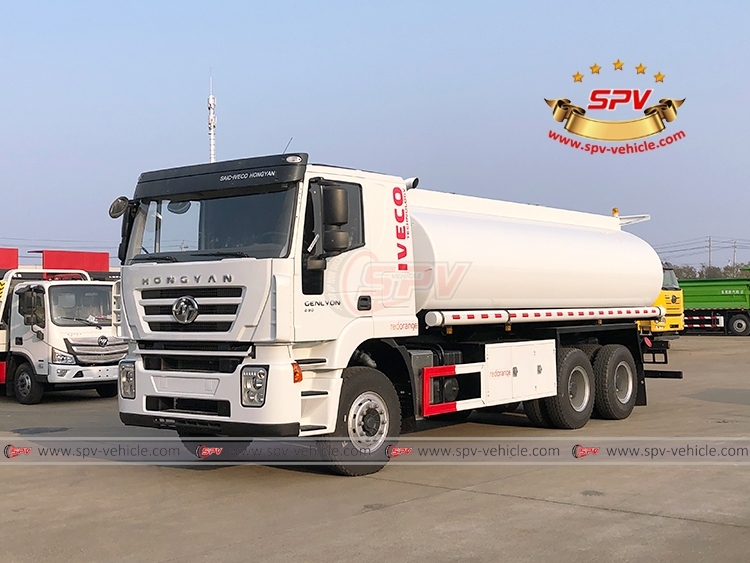

| 18,000 Litres Fuel Distribution Truck IVECO - Front Left | 18,000 Litres Fuel Tank Truck IVECO - Left |
 |
 |

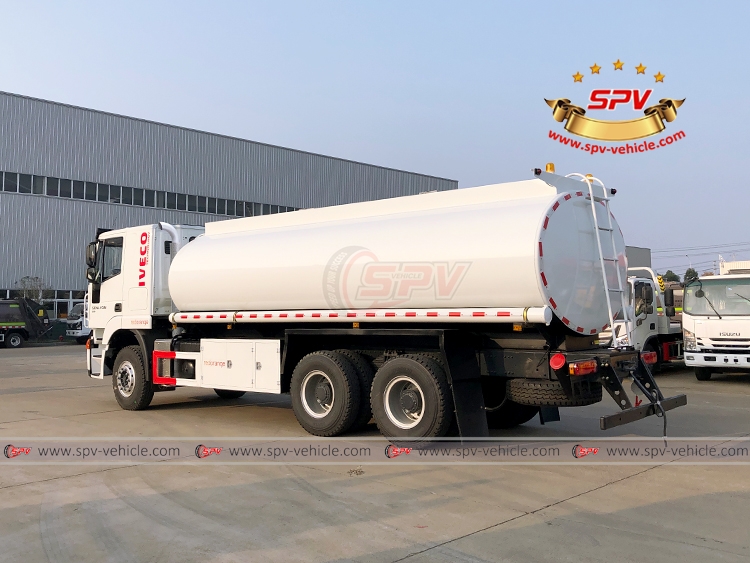

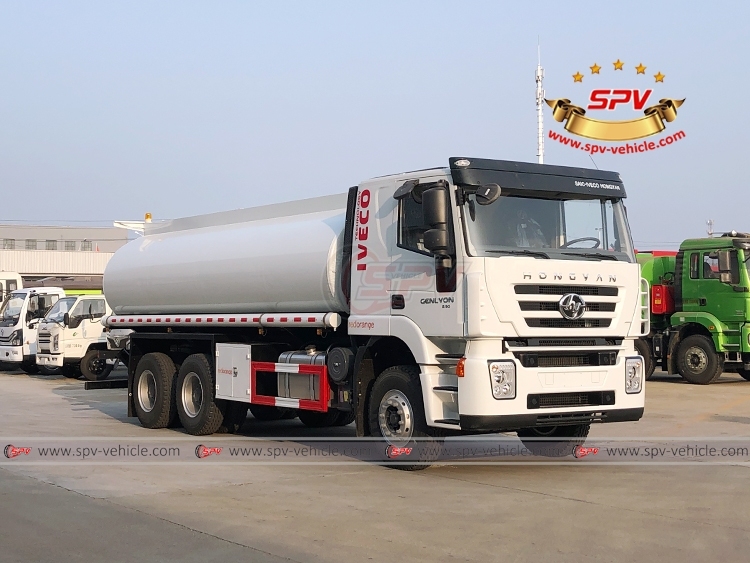

| 18,000 Litres Fuel Dispensing Truck IVECO - Rear Left | 18,000 Litres Fuel Supply Truck IVECO - Front Right |
 |
 |

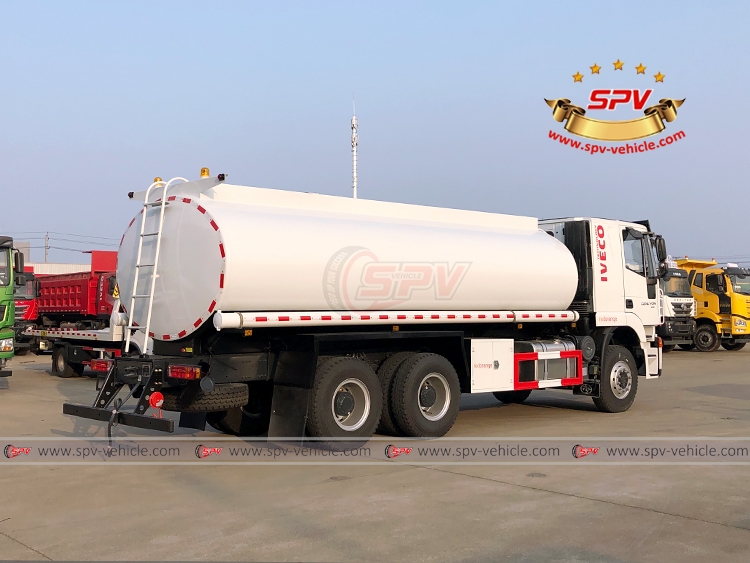

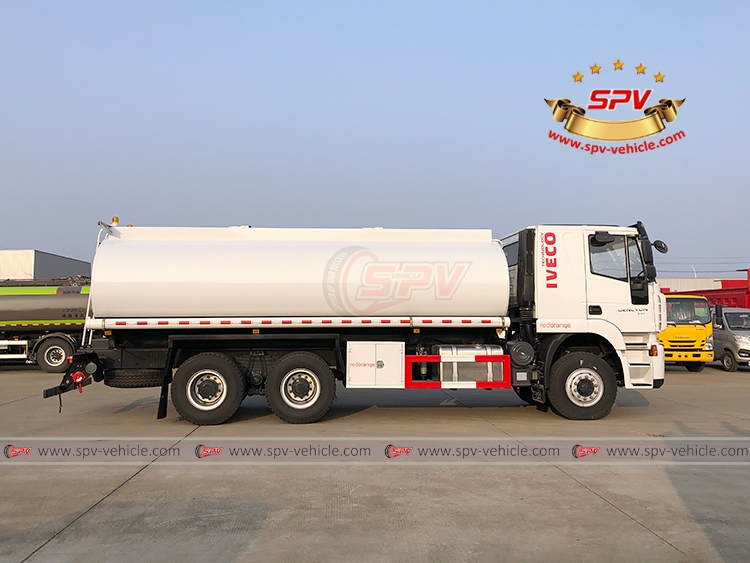

| 18,000 Litres Gasoline Transport Truck IVECO - Right | 18,000 Litres Petroleum Delivery Truck IVECO - Rear Right |
 |
 |

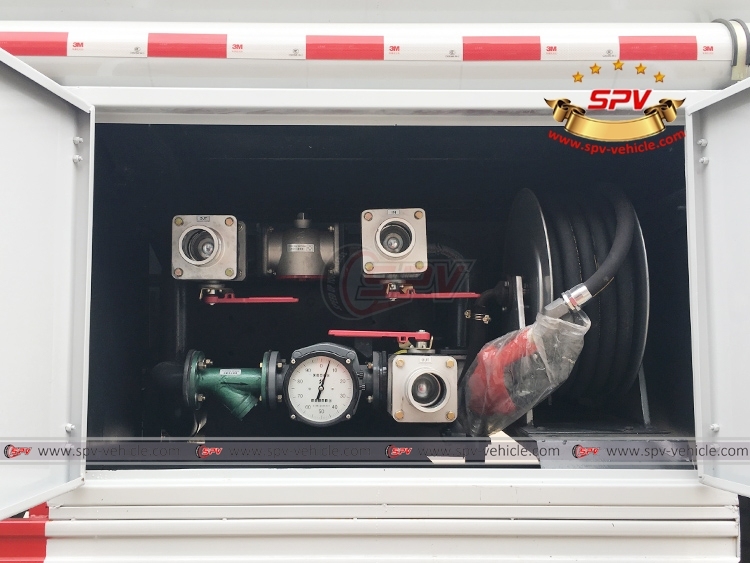

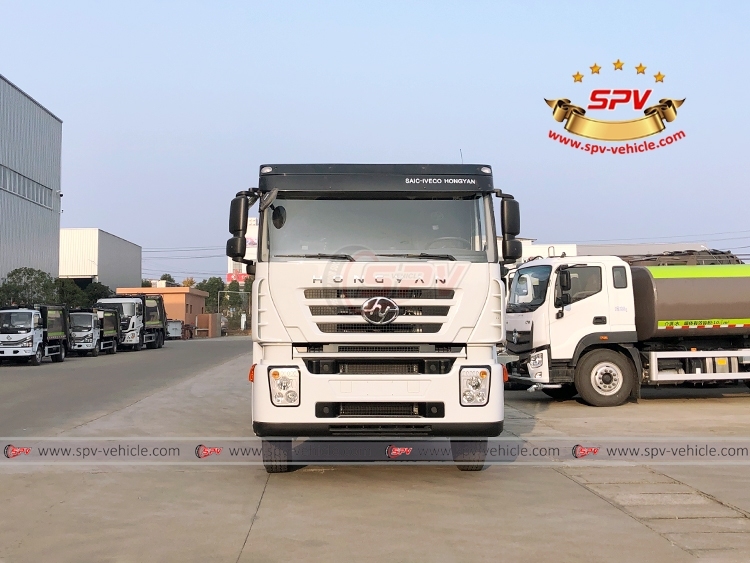

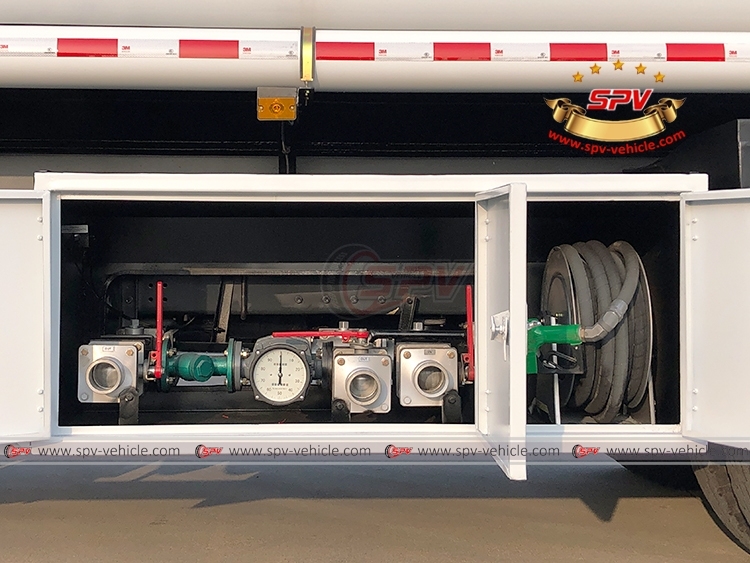

| 18,000 Litres Refueling Truck IVECO - Front | 18,000 Litres Refueling Truck IVECO - Discharge Box |
| To Djibouti in 2018 - 20,000 Litres Fuel Distribution Truck IVECO | |
 |
 |

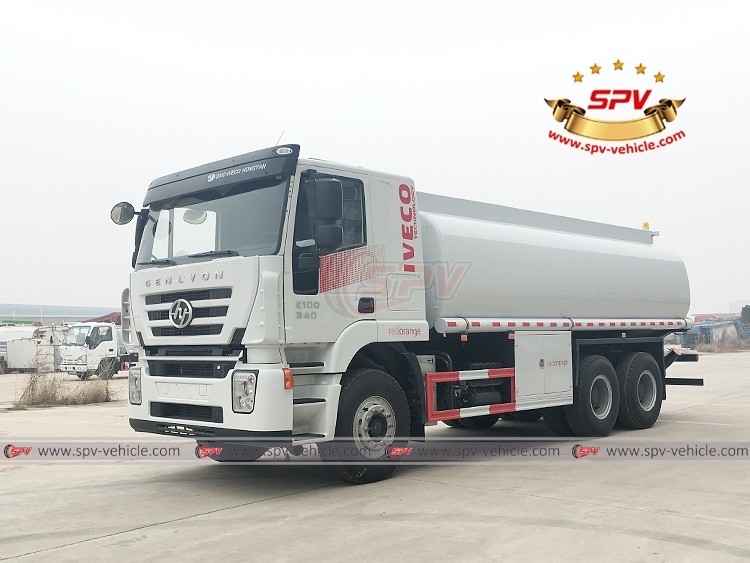

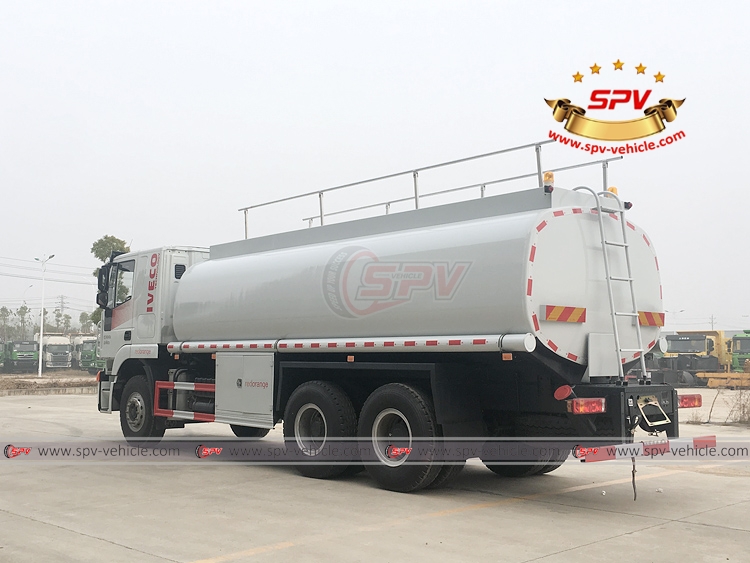

| 20,000 litres Fuel Delivery Truck IVECO - Front Left | 20,000 litres Fuel Bowser IVECO - Rear Left |

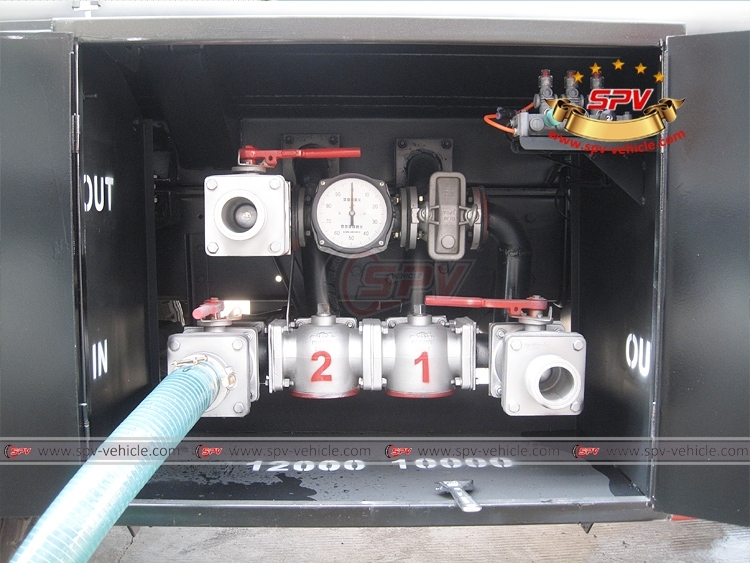

| To Angola in 2015 - 20,000 Litres Fuel Delivery Truck IVECO | |
 |
 |

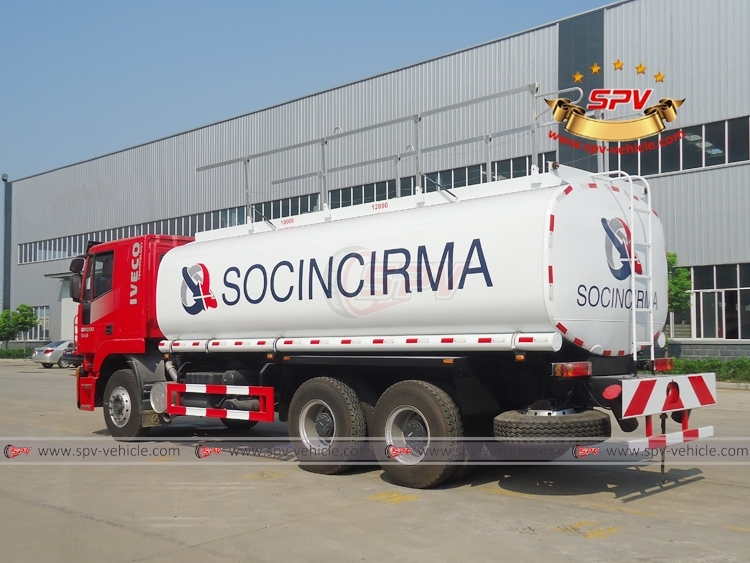

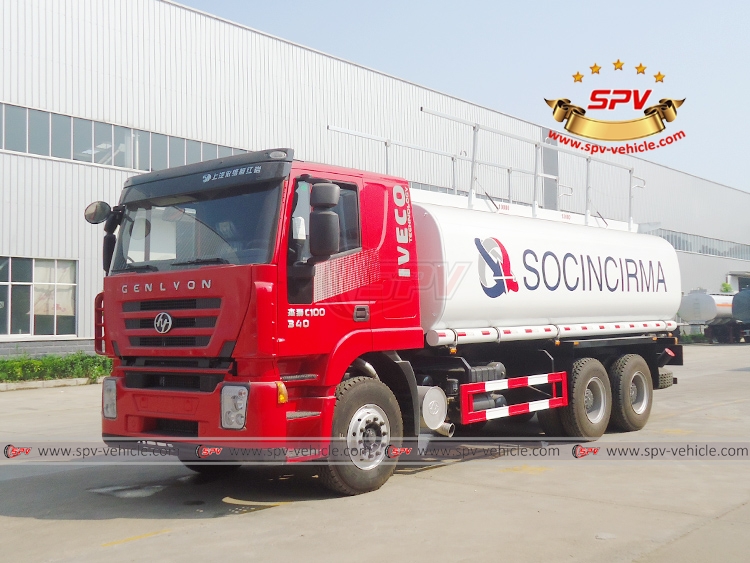

| 20,000 litres Fuel Hualing Truck IVECO - Front Left | 20,000 litres Fuel Carrier Truck IVECO - Rear Left |
