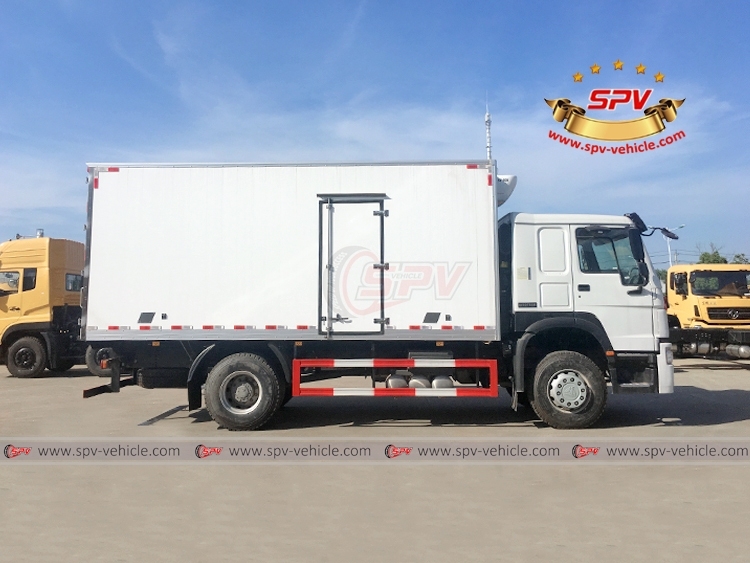

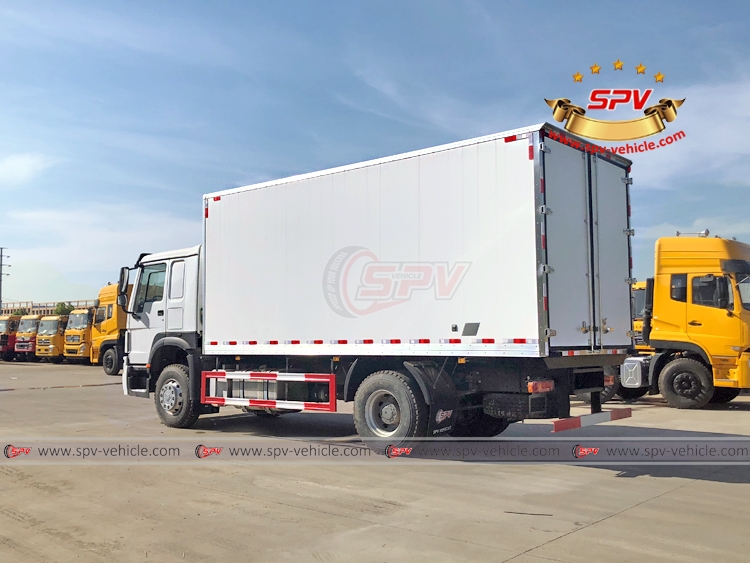

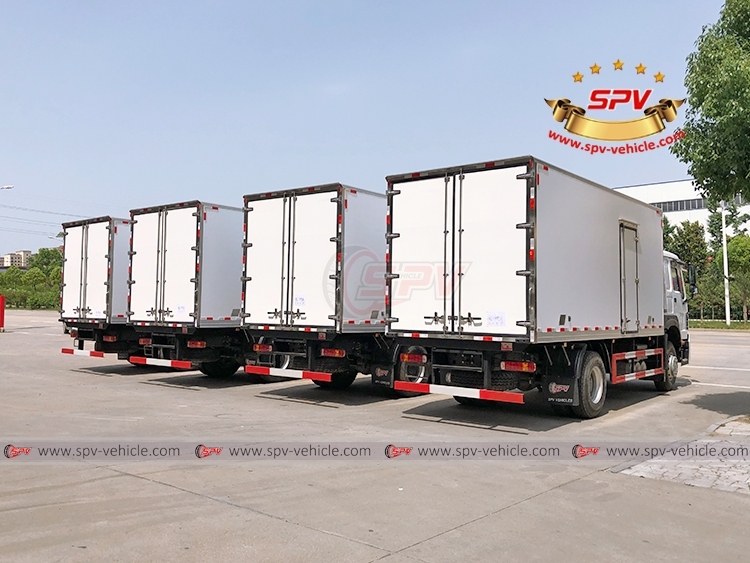

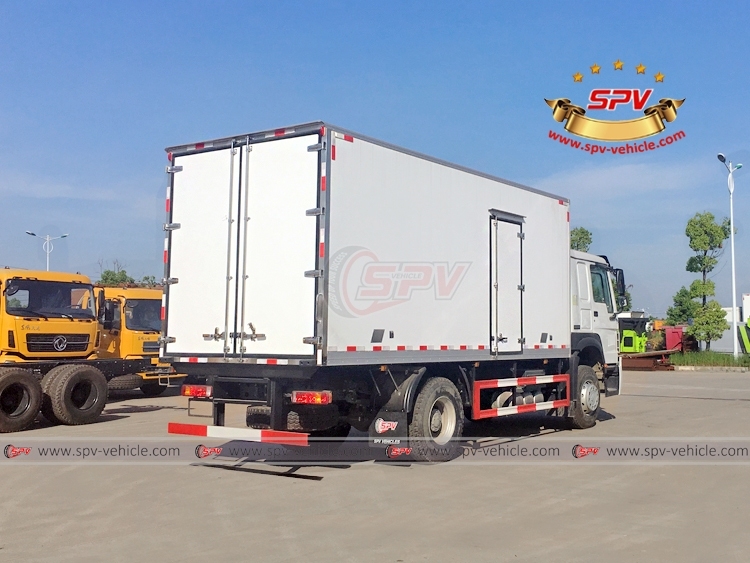

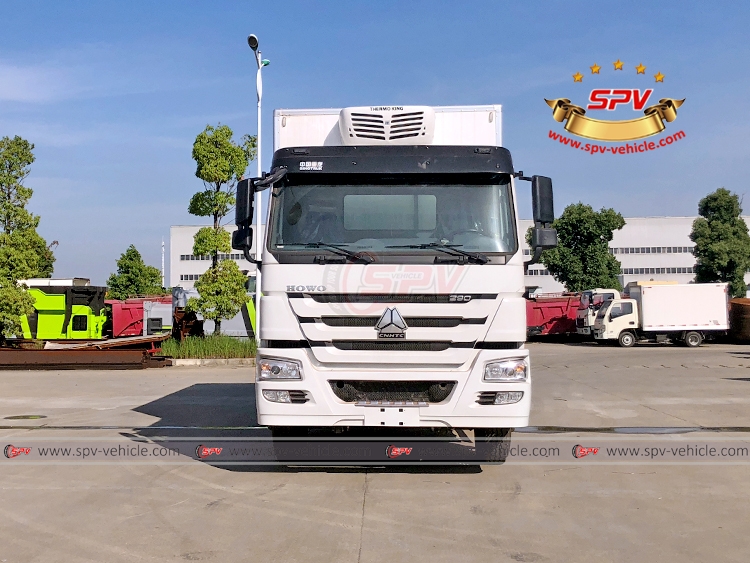

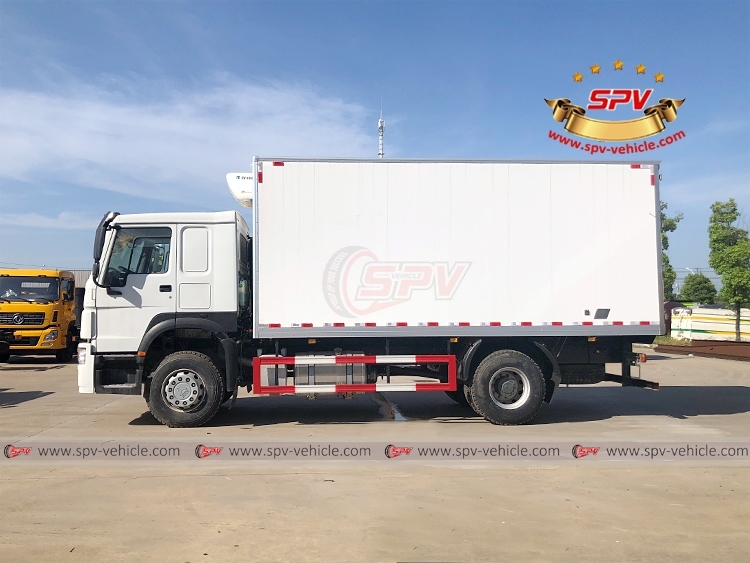

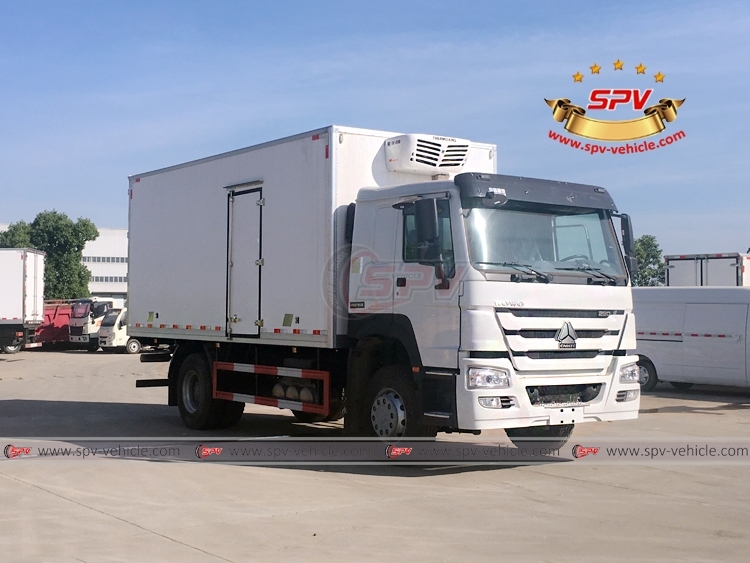

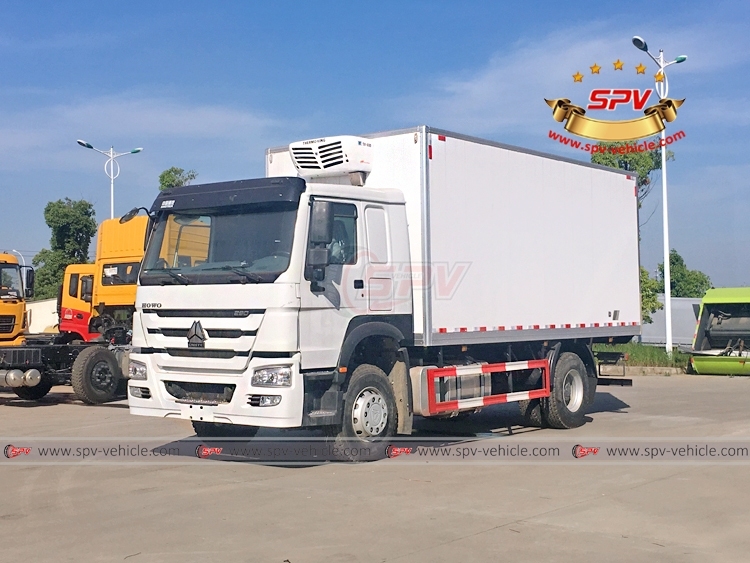

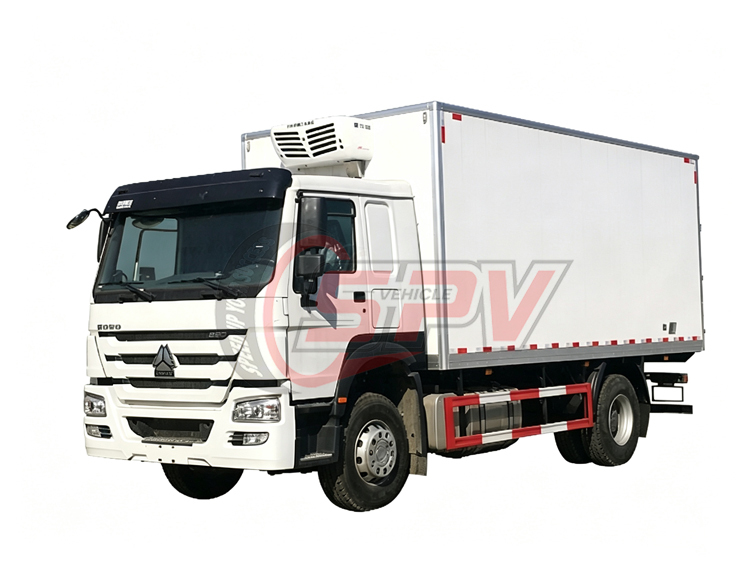

Name: 10 Tons Reefer Van Truck SINOTRUK
Brand: SPV-Vehicle - A Professional Special Purpose Vehicle Manufacturer from

Function:
Reefer van truck (also called refrigerated wagon, chiller van truck, cold room truck, reefer box truck, refrigerator truck, refrigerated truck, freezer truck, refrigerator lorry, refrigerated box car, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle, ice truck, ice van truck.) is used to carry perishable stuff at specific temperatures.
The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -20°) for your option.

our refrigerator wagons use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.

Features:
---- SINOTRUK chassis ensures perfect driving performance.
---- SINOTRUK engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:

Reefer Van Truck HOWO ( 10 Tons Cooling System Truck)
General	Vehicle Brand	SPV
	Chassis Brand	SINOTRUK
	Overall Dimension	8940 * 2580 * 3920 mm
	GVW / Kerb Weight	16,000 kg / 8,900 kg
Cab	Cab Capacity	2 persons allowed with 1 sleeper
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	SINOTRUK engine
	Power	266 Hp (213 KW)
	Displacement	9726 ml
	Emission Standard	Euro II
Chassis	Drive Type	4x2, left hand drive, power assisted steering
	Transmission	Manual 10-speed forward, 2 reverse
	No. of Axles	2
	Tyre Specification	12R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Box Capacity	10 Tons
	Box Internal Dimension	5800 * 2400 * 2400 mm
	Box Material	Fiberglass with 80 mm foaming

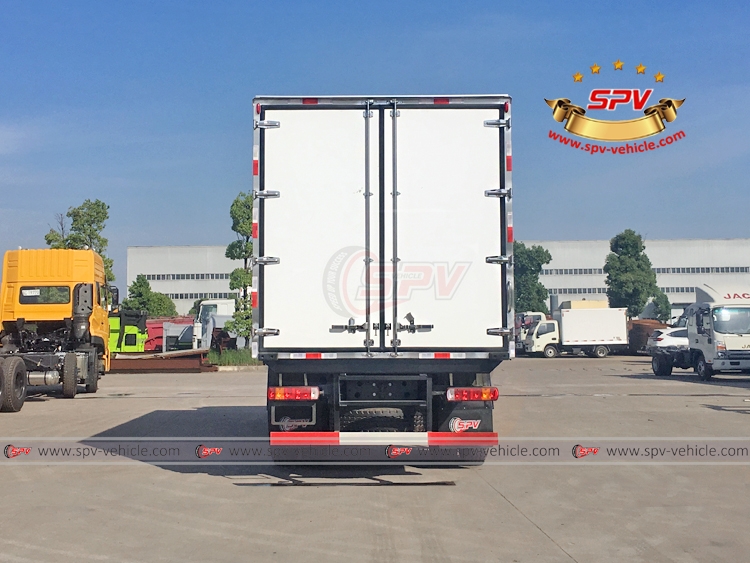

	Van Doors	Two rear doors, fully openable and one side door
	Refrigerator Machine	World famous Thermo King brand, indpendent diesel engined driving, with electric standby and in cabin control Refrigerant: R-404A
	Van Inside	Double Temperature Movable partition inside container divided by equal compartment with temperature control to maintain first compartment -18°C and second compartment 0°C to +5°C, digital controller inside the driver cabin, Polar curtains with stainless steel rail, hooks for the door and Drain points with tap shall be provided. Lights.
	Lowest temperature	-20°
	All other standard accessories: Tool kit, English manual……
Optional	Box material could be fibreglass, aluminum or stainless steel. Refrigerator brand: International brand such as: Thermo King, Carrier; Chinese top brand : Kexue, Hanxue, Xinhuatai, Bingsen as well...... Refrigerator type: non-independent and independent type. Temperature data logger, printer and temperature alarm. Slide rail and meat hook for special use. Extra side door. Backup system: Tail lift** 1 ton, 1.5 tons......
