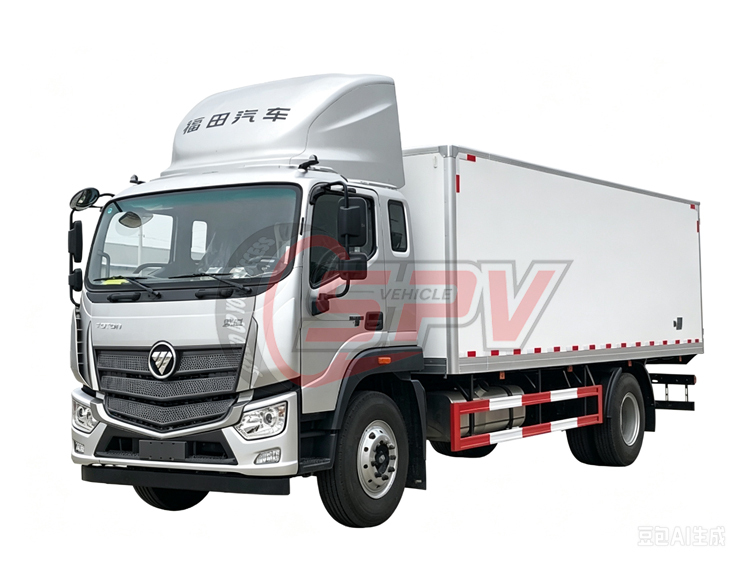

| Vaccine Refrigerated Truck FOTON ( 10 Tons Cooling System Truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | FOTON | |
| Overall Dimension | 9050 * 2470 * 3120 mm | |
| GVW / Kerb Weight | 16,000 kg / 6,800 kg | |
| Cab | Cab Capacity | 2 persons allowed with 1 sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 210 Hp (154 KW) | |
| Displacement | 4460 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4x2, left hand drive, power assisted steering |
| Transmission | Manual, 8-speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 10.00R20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Capacity | 10 Tons |
| Box Internal Dimension | 6500 * 2300 * 1800 mm | |
| Box Material | Fiberglass with 80 mm foaming | |
| Van Doors | Two rear doors, fully openable and one side door | |
| Refrigerator Machine | World famous Thermo King brand, indpendent diesel engined driving, with electric standby and in cabin control Refrigerant: R-404A | |
| Van Inside |
Double Temperature
Movable partition inside container divided by equal compartment with temperature control to maintain first compartment -18°C and second compartment 0°C to +5°C, digital controller inside the driver cabin, Polar curtains with stainless steel rail, hooks for the door and Drain points with tap shall be provided. Lights.
|
|
| Lowest temperature | -5° | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional | ** Box material could be fibreglass, aluminum or stainless steel. ** Refrigerator brand: International brand such as: Thermo King, Carrier; Chinese top brand : Kexue, Hanxue, Xinhuatai, Bingsen as well...... ** Refrigerator type: non-independent and independent type. ** Temperature data logger, printer and temperature alarm. ** Slide rail and meat hook for special use. ** Extra side door. ** Backup system: Tail lift 1 ton, 1.5 tons...... |
|
 |
 |

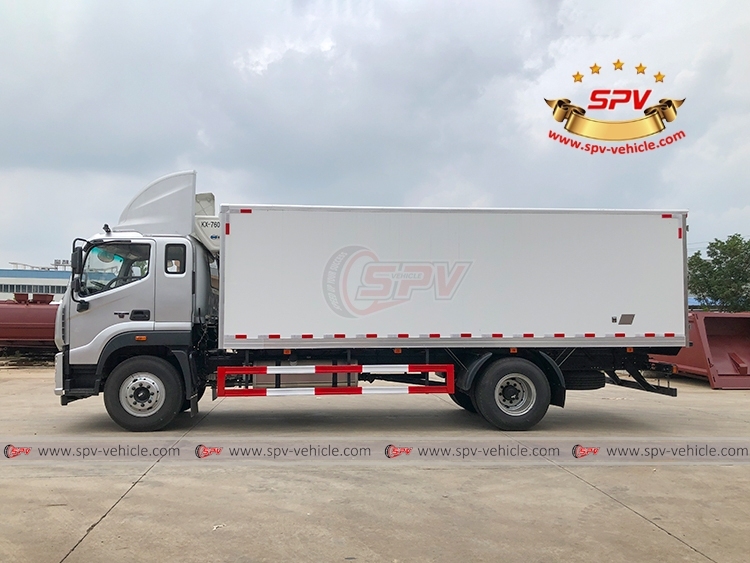

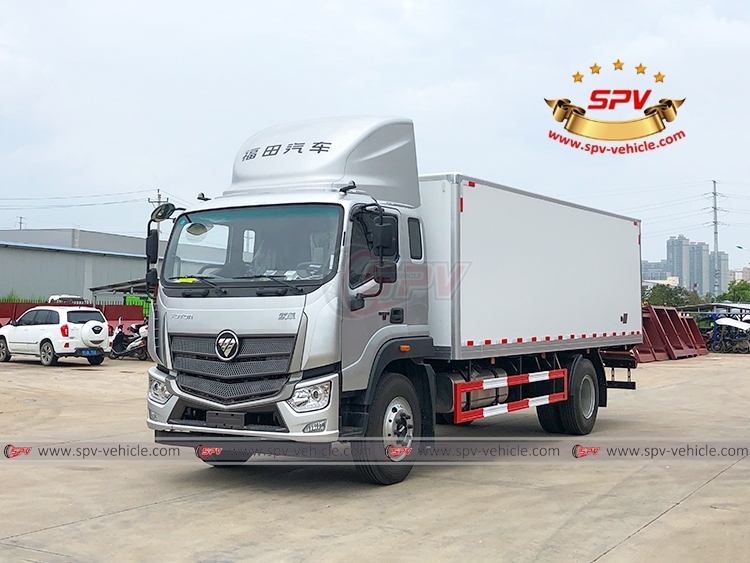

| Heavy‑duty Medicine Transport Truck FOTON - Front Left | 10 Tons Vaccine Logistics Truck FOTON - Left |
 |
 |

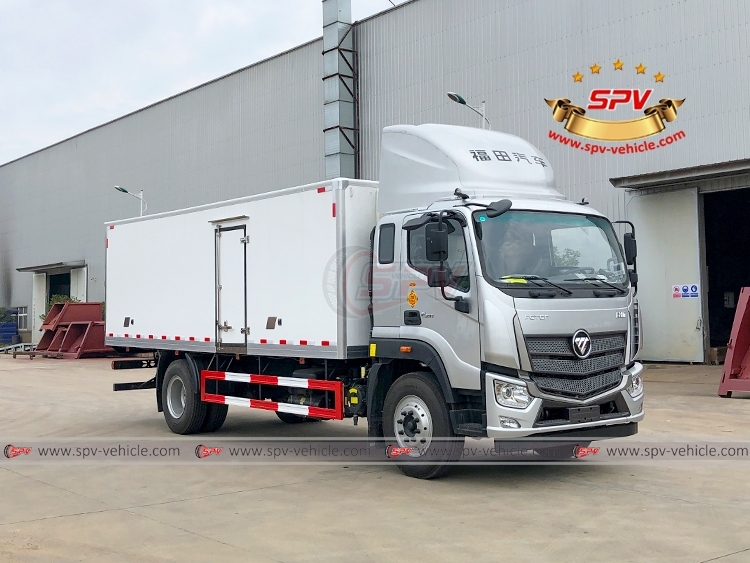

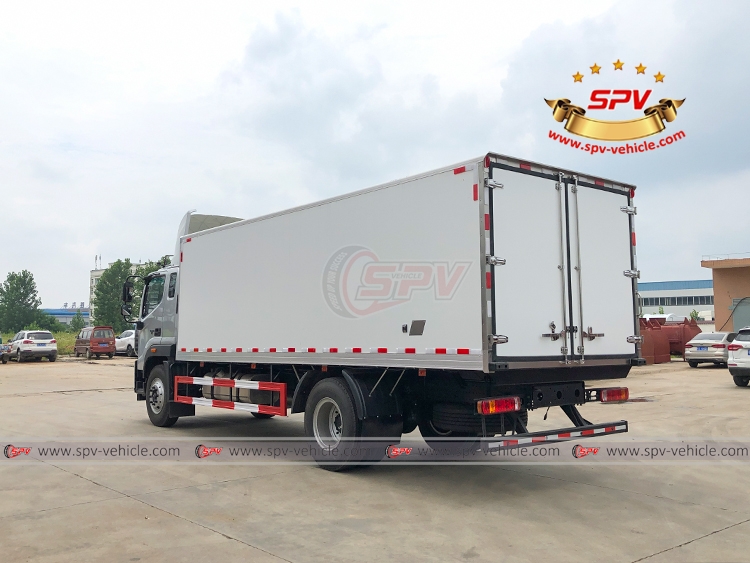

| 10 Ton Vaccine Transport Vehicle FOTON - Rear Left | 10 Ton Medical Cold Chain Truck FOTON - Front Right |
 |
 |

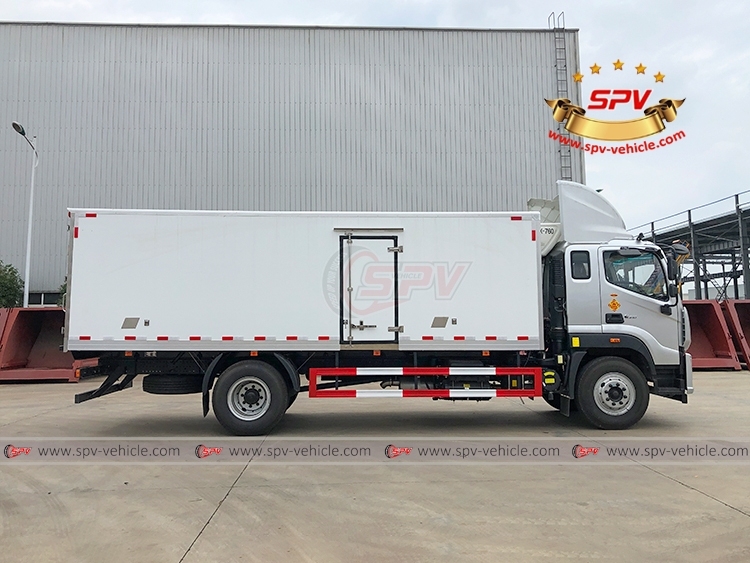

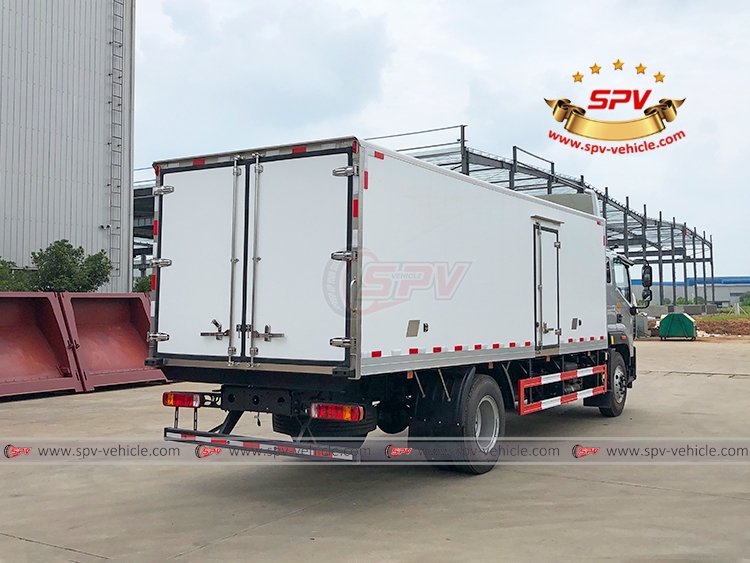

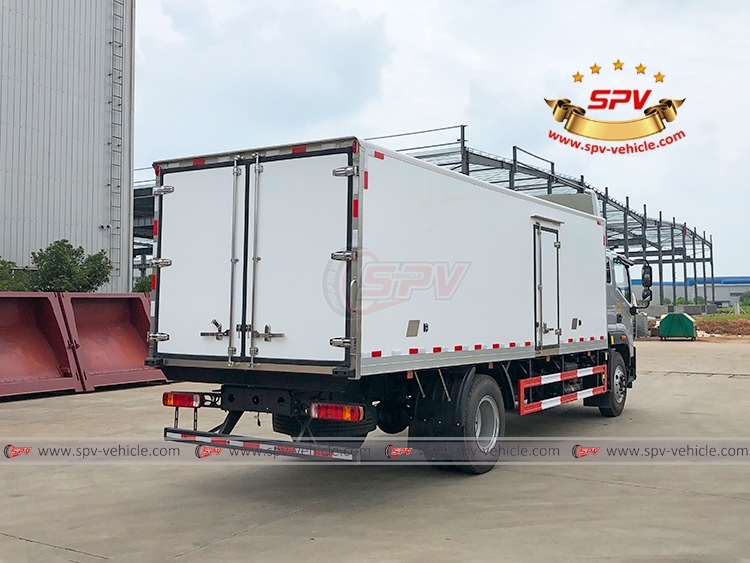

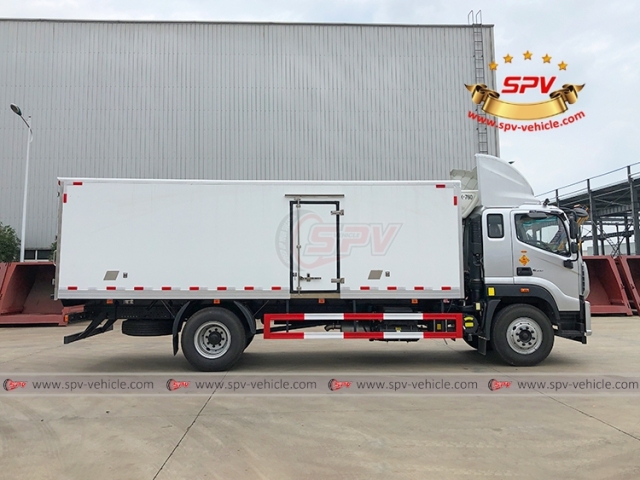

| 4x2 Vaccine Cold Storage Truck FOTON - Right | 10 Tons Refrigerated Medical Truck FOTON - Rear Right |
 |
 |

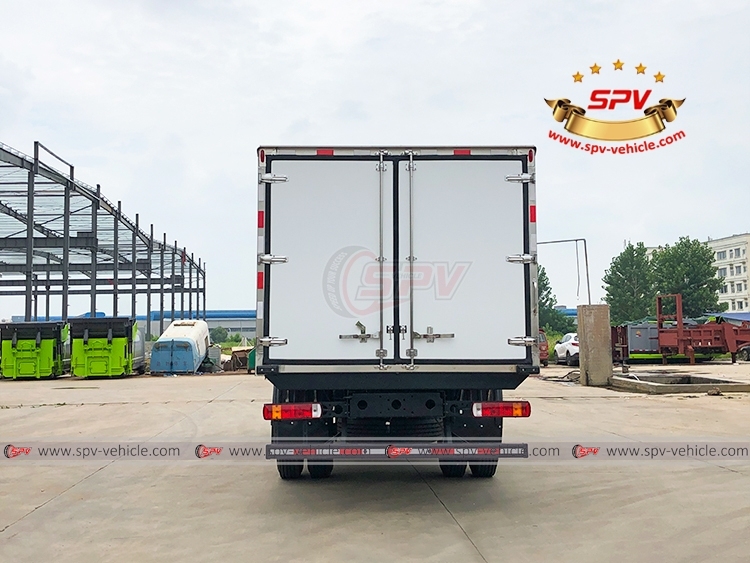

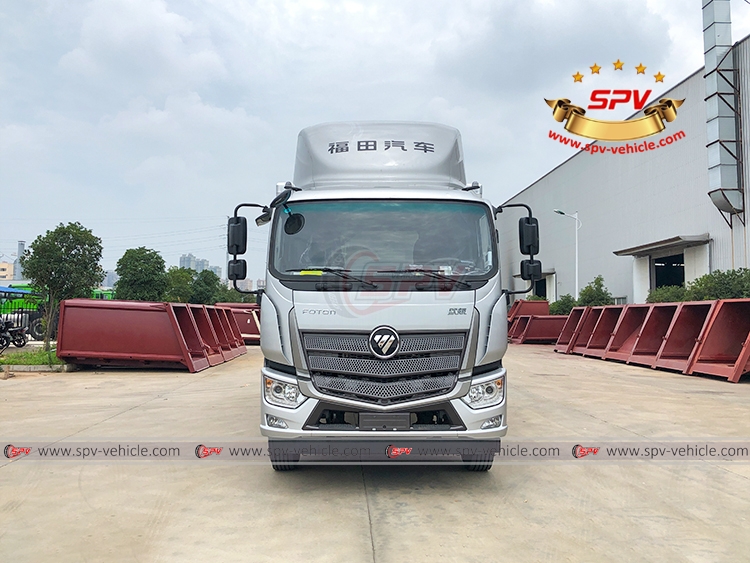

| Pharma Refrigerated Truck FOTON - Front | 10 Ton Medical Refrigerated Truck - Rear |
 |
 |

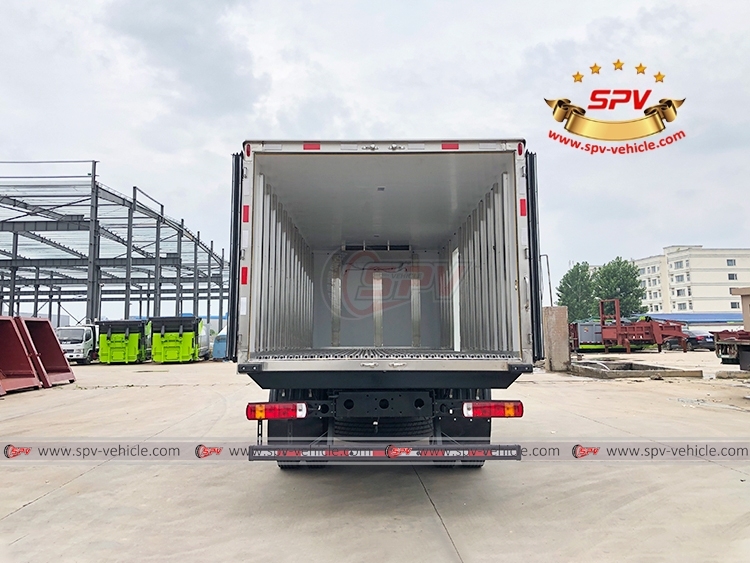

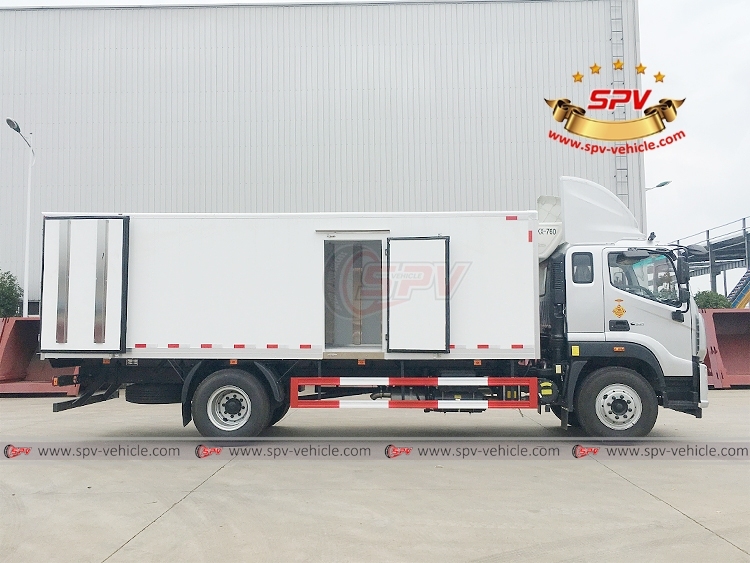

| 10 Ton Frozen Vaccine Delivery Truck FOTON - Right | 10 Tons Healthcare Refrigerated Truck FOTON - Rear |
 |
 |

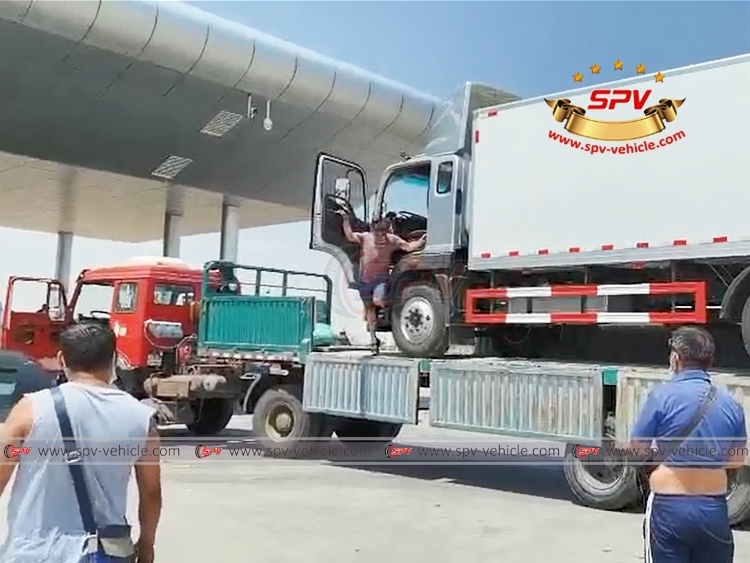

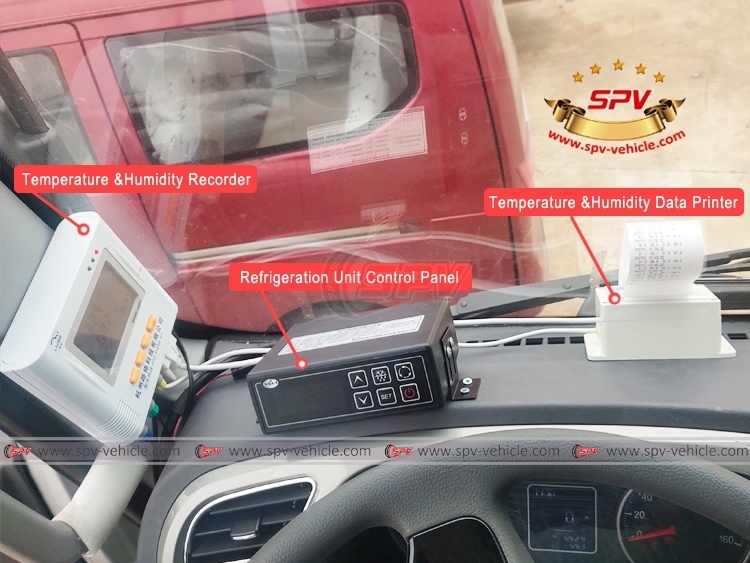

| Pharmaceutical Delivery Truck FOTON - Detail | 10 Ton Freezer Van Truck FOTON - Loading onto Flatbed Truck |
