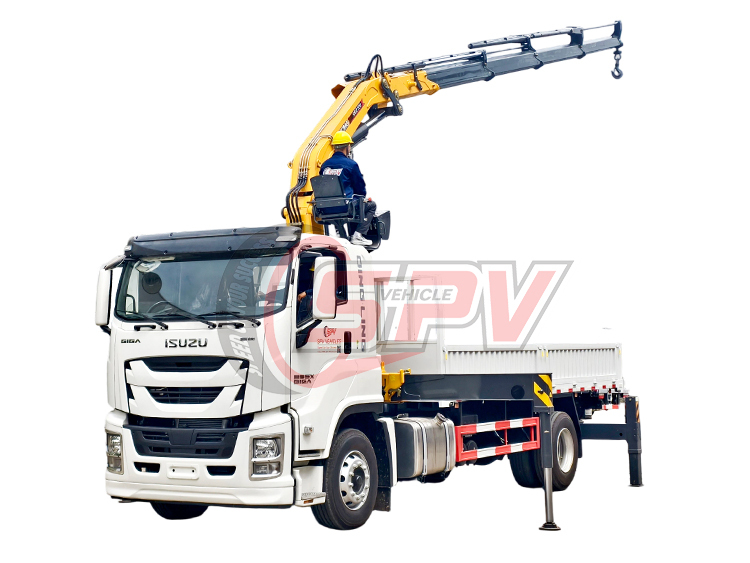

Name: 10 Ton Telescopic Crane Truck ISUZU
Brand: SPV-Vehicle - A Professional Special Purpose Vehicle Manufacturer from

Function:
Telescopic crane truck (also called unic crane, cargo truck crane, hydraulic crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.

Specification:

Telescopic Crane Truck ISUZU ( 10 tons crane truck )
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	934025303640 mm
	GVW / Kerb Weight	18,000 kg / 11,740 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	240 Hp (176 KW)
	Displacement	7790 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4x2, left hand drive
	Transmission	Manual, 9-speed front, 1-reverse
	No. of Axles	2
	Tyre Specification	295/80R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	60002315550 mm
	Crane Brand	XCMG
	Max Lifting Capacity	10 T
	Lifting Capacity @ Working Radius	10000kg @ 2.0 m
	Max. Lifting Moment	25 T.M
	Max. Lifting Height	13 m
	Max. Working Radius	10.3 m
	Slewing Angle	360°all rotation
	All other standard accessories: Tool kit, English manual
Optional	Hydraulic tipper box is optional. Box thickness according to requirement. ** Box height could be nominated.

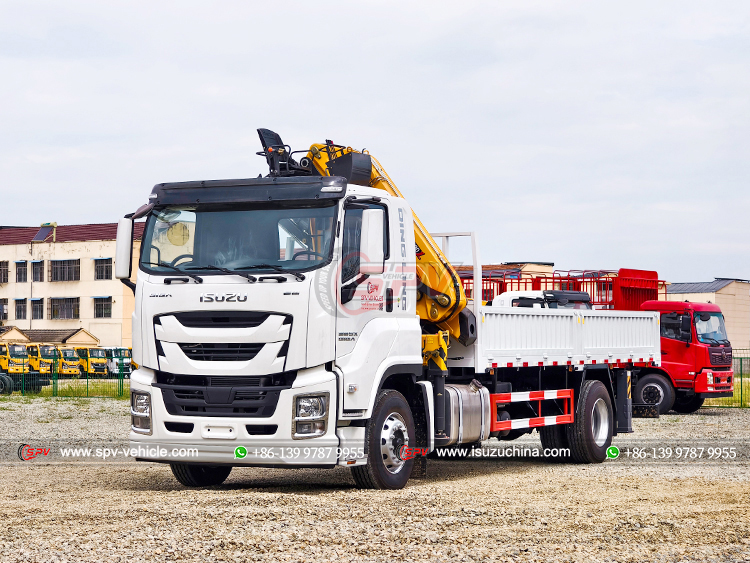

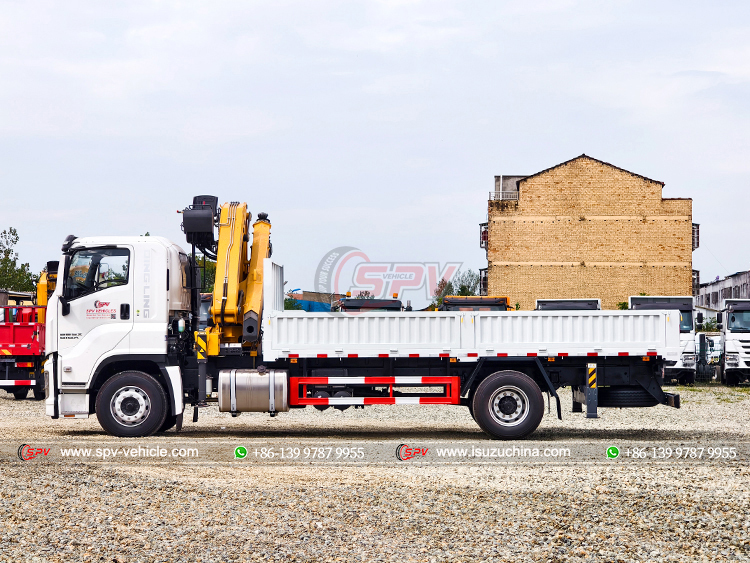

10 Ton Cargo Truck Mounted Crane ISUZU - Front Left	10 Ton Cargo Truck with Telescopic Crane ISUZU - Left

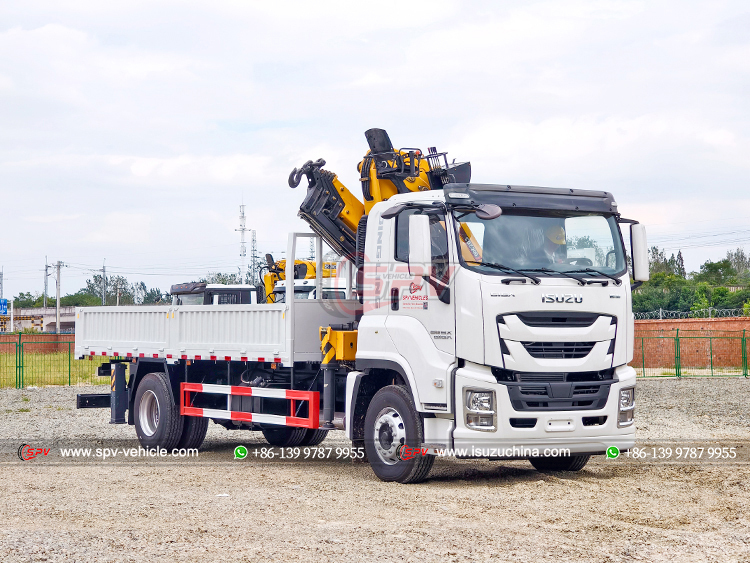

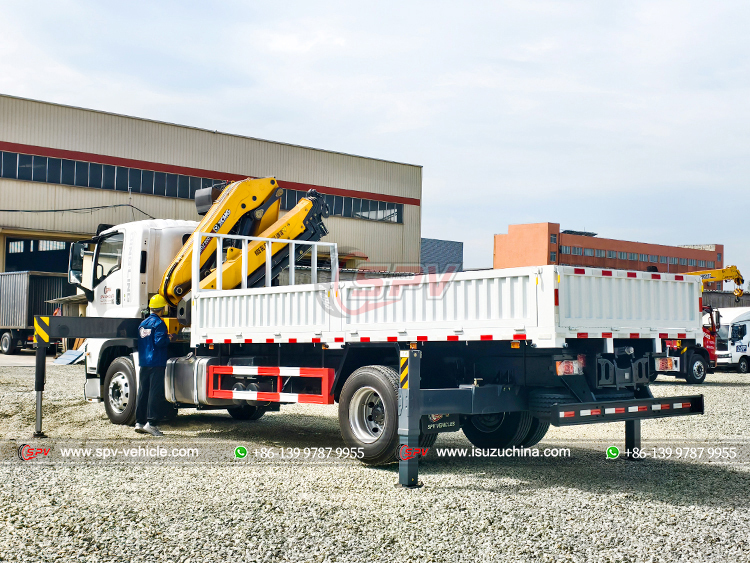

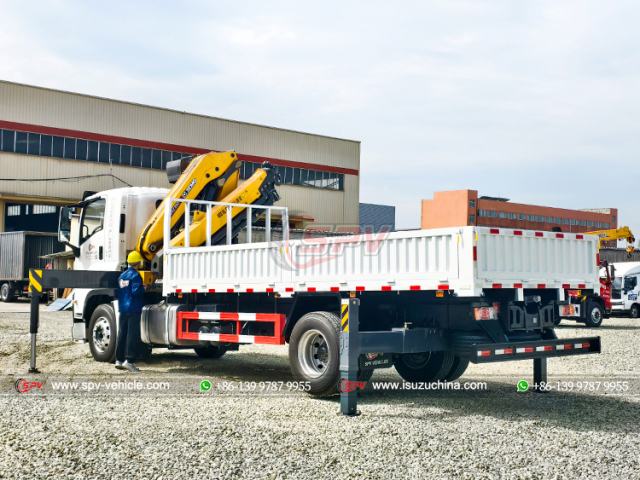

Heavy-duty Crane Truck ISUZU 4x2 - Rear Left	10 Ton Hydraulic Crane Truck ISUZU - Front Right

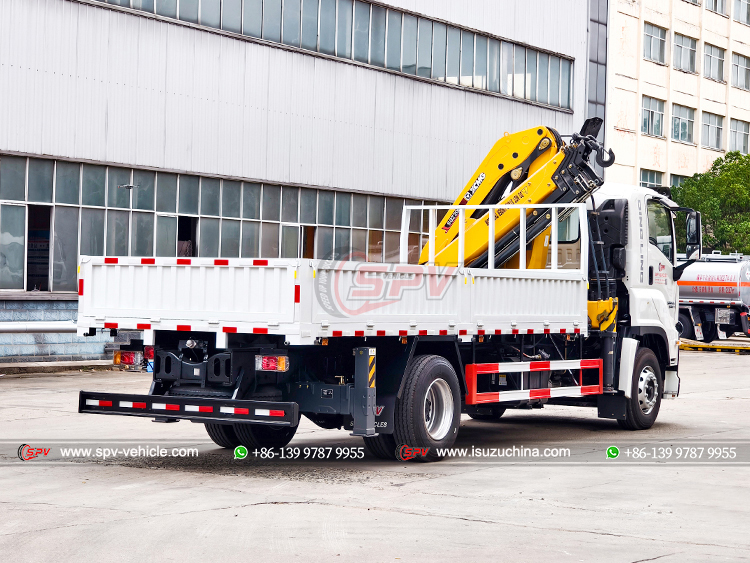

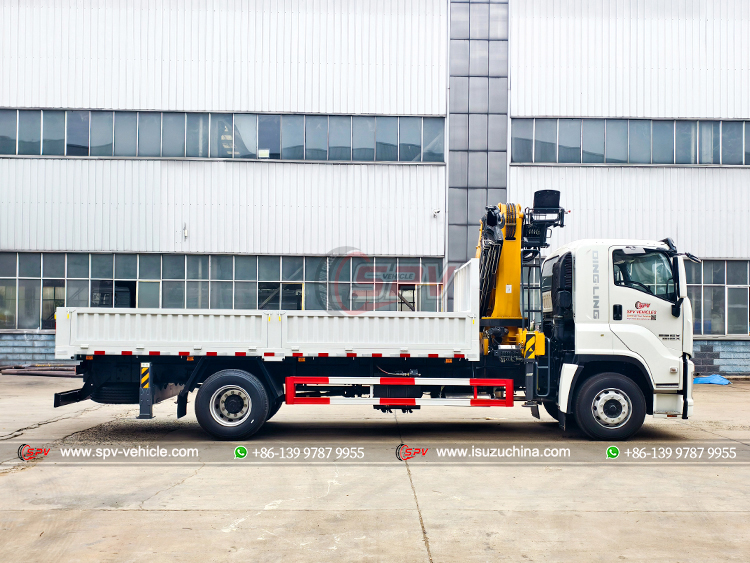

10 Ton Telescopic Crane Truck ISUZU - Right	2-Axles Crane Cargo Truck ISUZU - Rear Right

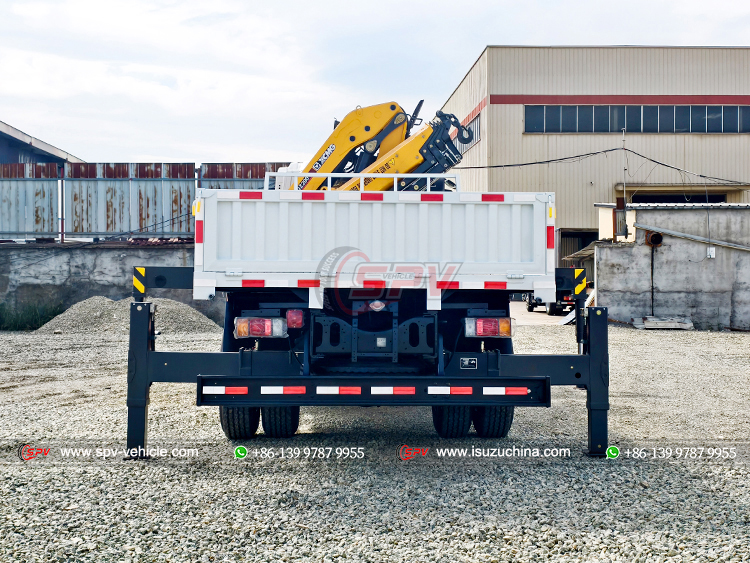

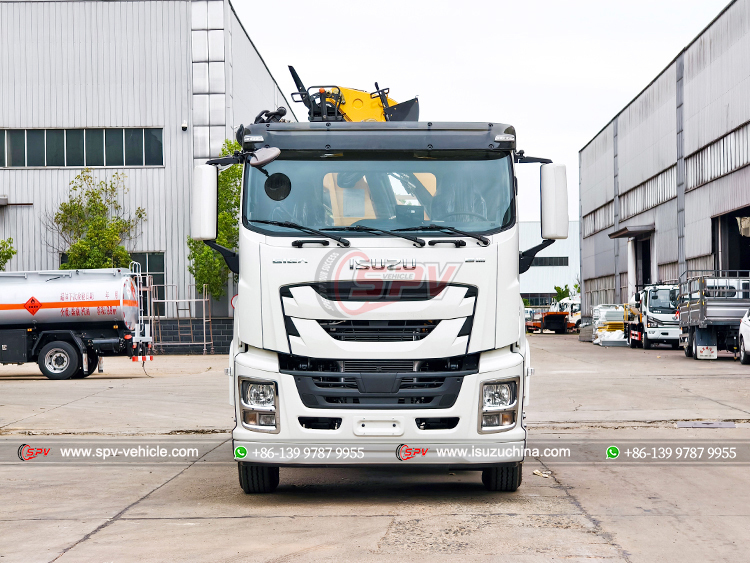

10 Ton Cargo Truck with Crane ISUZU - Front	10 Tons Logistics Truck With Crane ISUZU - Rear

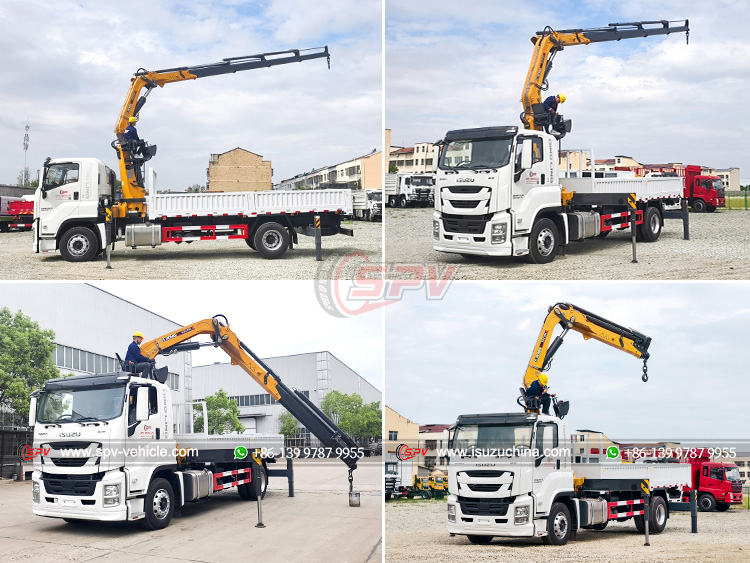

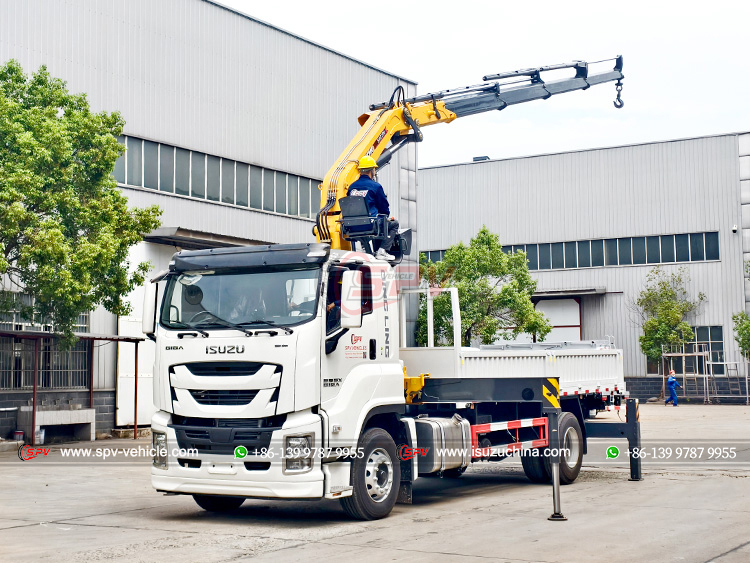

10 Ton Cargo Truck with Loading Crane - Crane Working	10 Ton Loader Crane Truck ISUZU - Crane Working Test

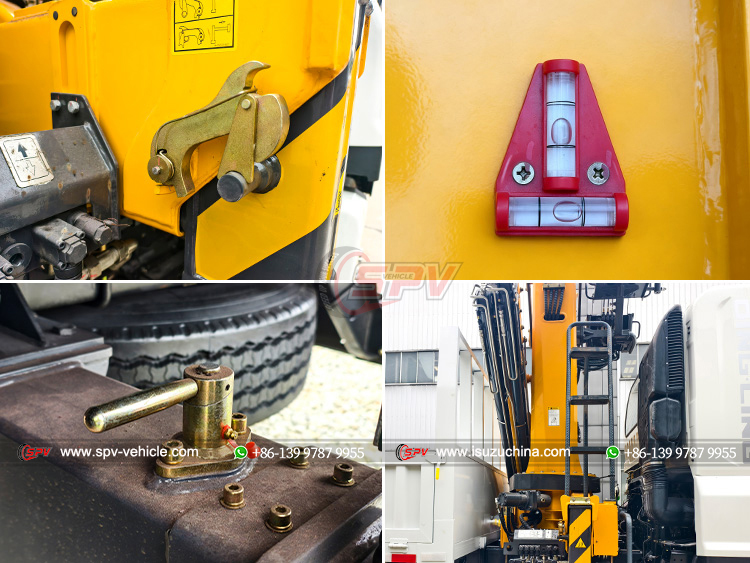

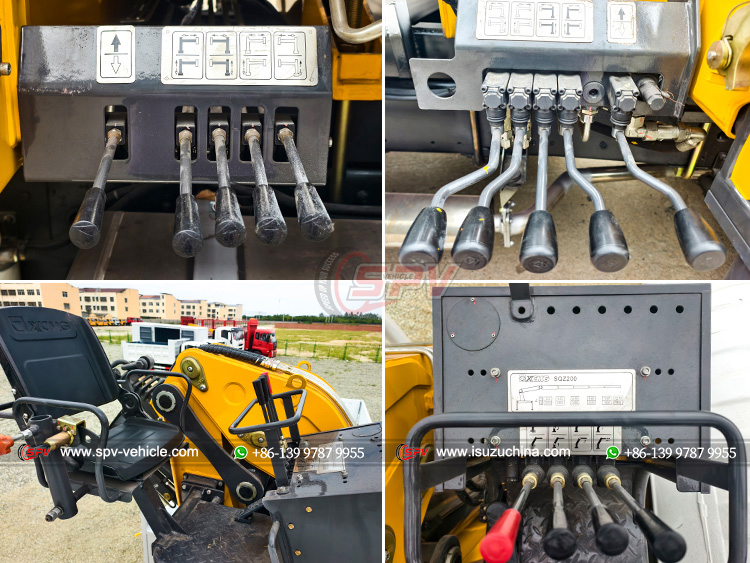

10 Ton Crane Truck ISUZU - Operation Panel	6 Wheels Cargo Truck With Crane - Equippments' Details
