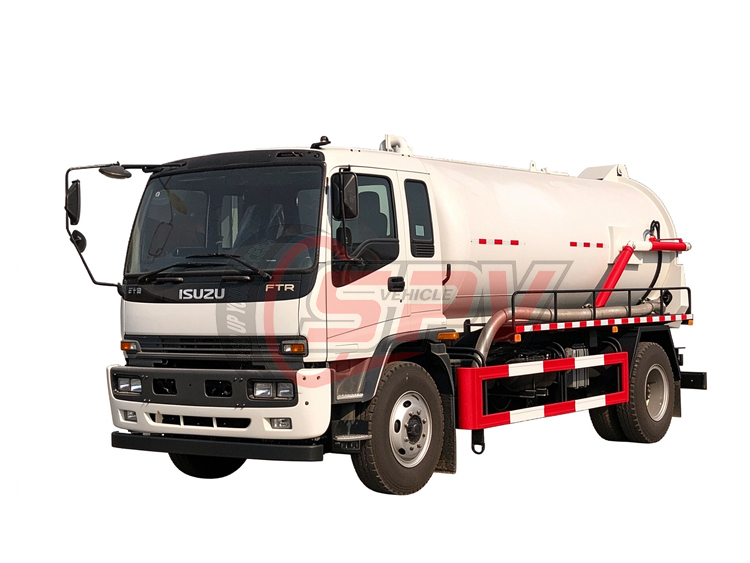

Name: 10,000 Litres Cesspool Disposal Truck ISUZU
Brand: SPV-Vehicle - A Professional Special Purpose Vehicle Manufacturer from

Function:
Cesspool disposal truck (also called sludge suction truck, waste liquid truck, sewer suction truck, sewage vacuum tanker, vacuum sewer truck, sewage vacuum tank truck, ISUZU sewage pumping truck, sewage tanker, sewer truck, waste liquid disposal truck, waste water collection truck, vacuum truck, ISUZU sewer flushing truck, sewage disposal truck, waste vacuum tanker, ISUZU sludge collection truck, vacuum tanker, sewage truck, etc.) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

The tank of a sewer vacuum truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.

Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
---- Nice shape, rational structure.
---- Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life.

Specification:

Cesspool Disposal Truck ISUZU (10,000 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	7850 * 2470 * 3200 mm
	GVW / Kerb Weight	16,000 kg / 8,048 kg
Cab	Cab Capacity	2 persons seats with 1 spleeper
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	190 Ps (139 KW)
	Displacement	5193 ml
	Emission Standard	Euro V
Chassis	Drive Type	4x2, left hand drive
	Transmission	ISUZU Manual, 6 forward, 1 reverse
	No. of Axles	2
	Tyre Specification	9.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	10,000 Litres (about 2,600 gallons)
	Tank Material	Stainless steel
	Suction Head	7 m
	Vacuum Pump	High efficiency, vacuum rare up to 93%, quick suction and discharge
	Hose	High quality, wire strengthened hose
	Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose.
	Rear door can be hydraulic opened for complete discharge of solid stuff.
	All other standard accessories: Tool kit, English manual……
Optional	Tank material could be mild steel, stainless steel… Italy vacuum pump is available.

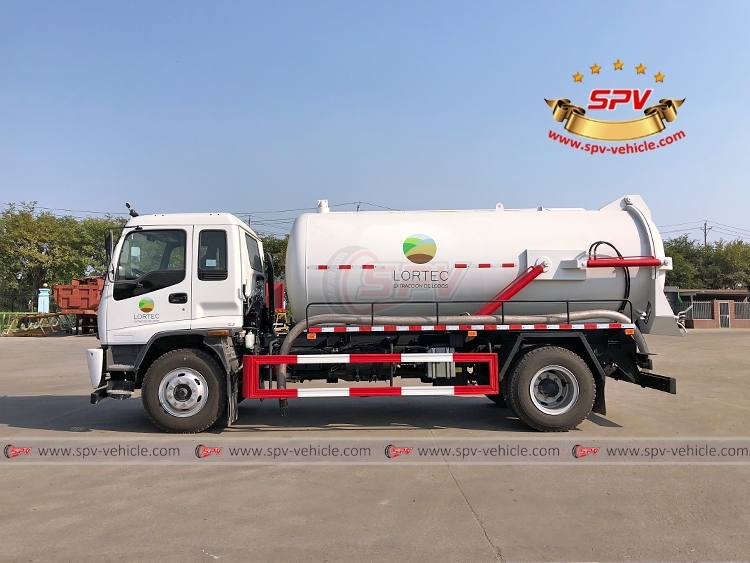

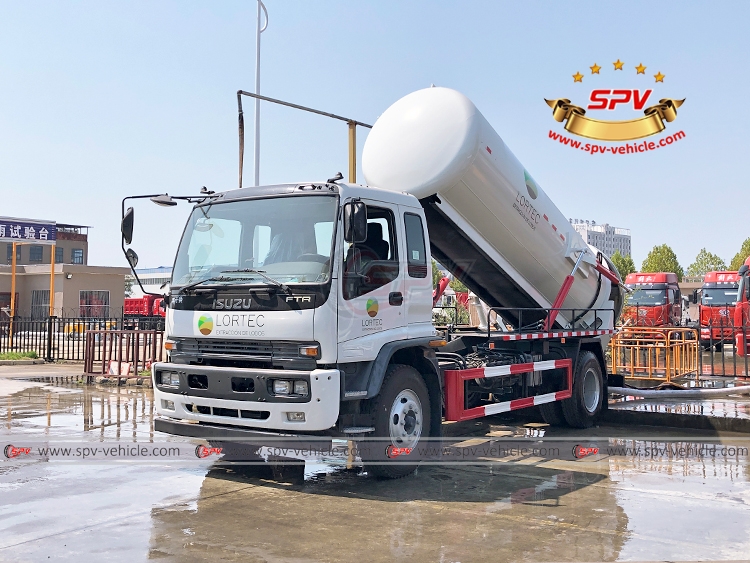

10,000 Litres Waste Water Sewage Tank Truck - Tank Lifting	10,000 Litres Sewage Disposal Truck ISUZU - Left

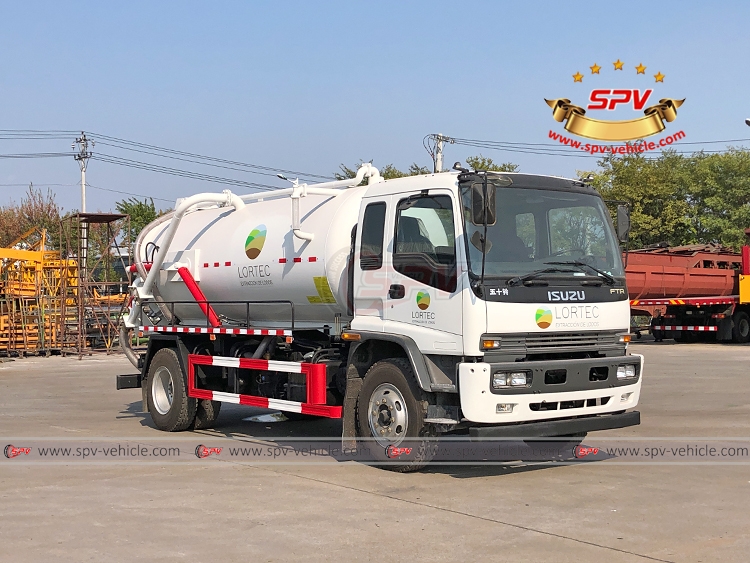

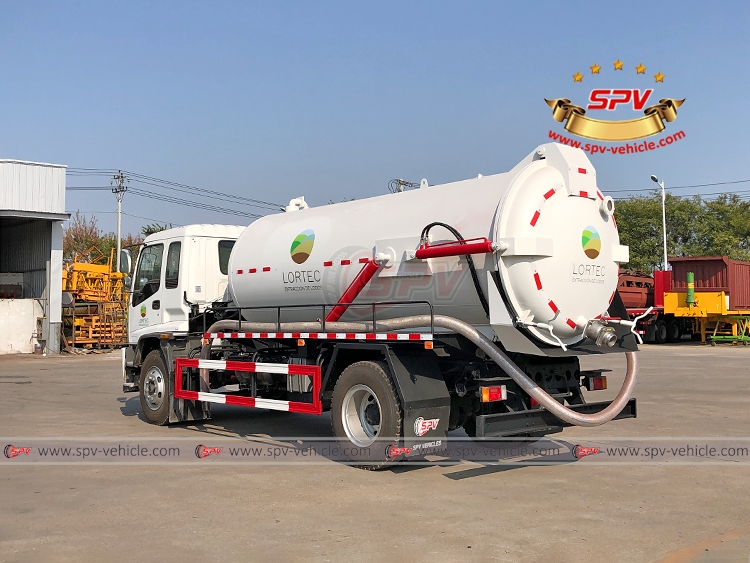

10,000 Litres Sewage Suction Truck ISUZU - Rear Left	10,000 Litres Sewer Cleaning Truck ISUZU - Front Right

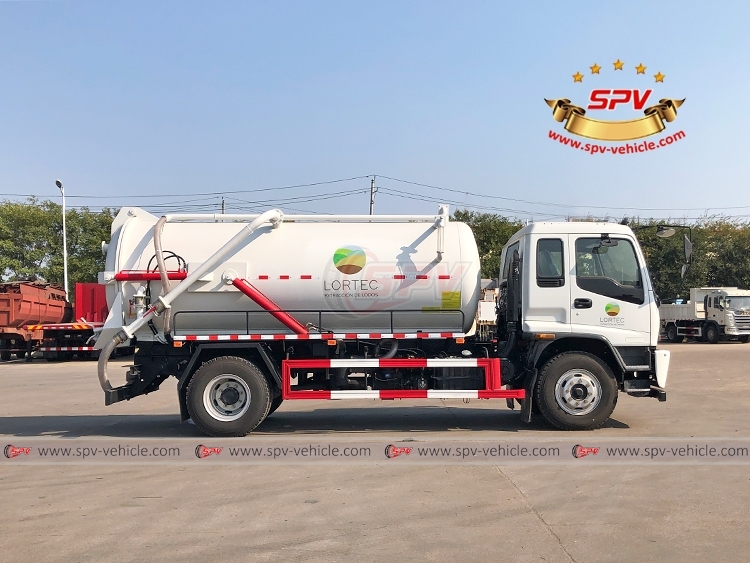

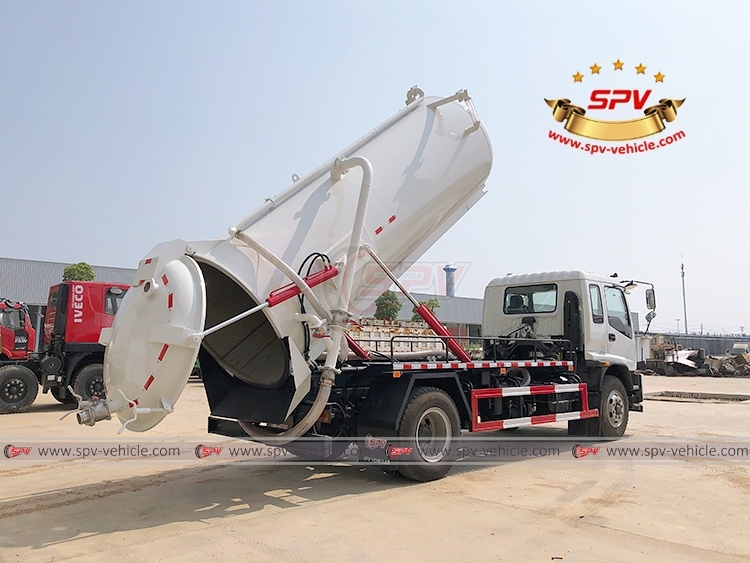

10,000 Litres Sewer Disposal Truck ISUZU - Right	10,000 Litres Cesspool Disposal Truck ISUZU - Tank Lifting

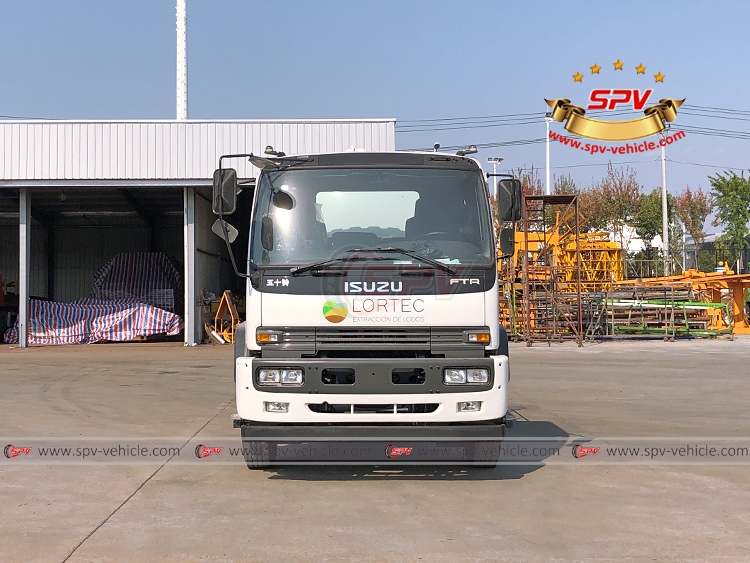

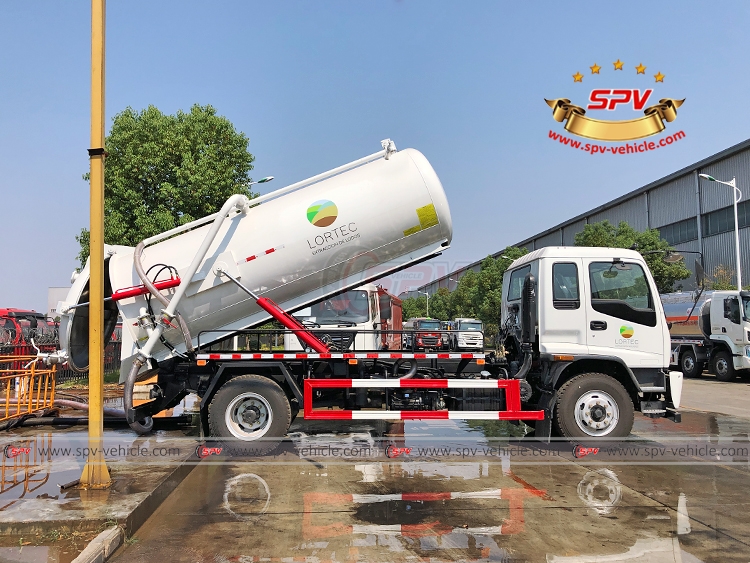

10,000 Litres Sludge Disposal Truck ISUZU - Discharging Water Test	10,000 Litres Sewage Vacuum Tanker ISUZU - Front
