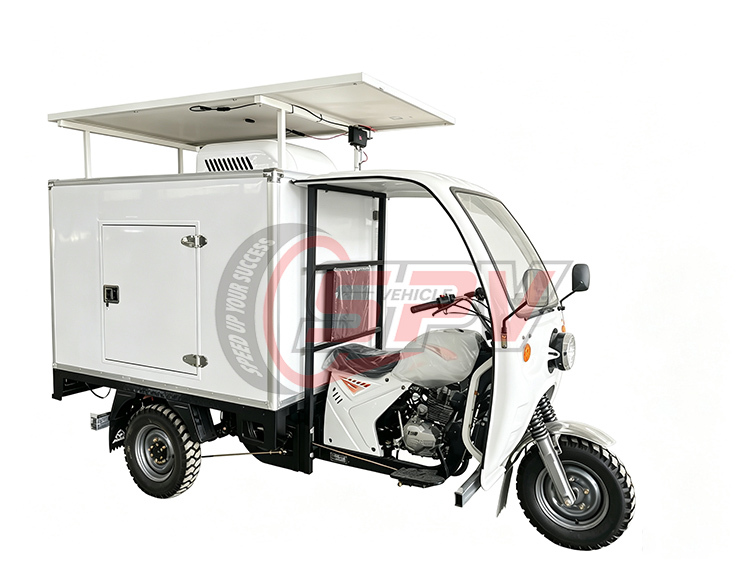

Name: 1 Ton Refrigerator Tricycle
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Refrigerator tricycle (also called frozen tricycle, temperature controlled tricycle, cold room tricycle, chiller tricycle, cold tricycle, refrigerator tricycle, ) is used to carry perishable stuff at specific temperatures.

The cooling device could be of famous brand such as Carrier, Thermoking……

There are two types of power driving ways - one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.

According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -16°) for your option.

our refrigerator wagons use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.

Features:
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life

Specitfication:

Refrigerator Tricycle ( 1 ton Cooling Tricycle )
General	Vehicle Brand	SPV
	Overall Dimension	300010002100
	GVW / Kerb Weight	1,000 kg
Chassis	Fuel Type	Gasoline
	Engine Brand	Chinese brand, 200 CC, air cooled, fan. Feet-electric start, manual cluth.
	Tyre	4.50-12, 3 pcs
	Chassis Frame	40802 mm
	Emission Standard	Euro V
	Battery	12V28A
DC Refrigeration Unit	Application	Freezing
	No. of Axles	2
	Power	650 W
	Rated Current and Voltage	10.1-11.4A, DC/60V
	Continuous Working Time	6 ~ 8 hours
Solar	Solar Panel Size	2279*1134mm
	Capacity	550W
	Control System	1 set
Van	Van Dimension	150010001000mm
	Capacity	970 L
	Van Material	Sandwich type, interior and exterior color steel plate, middle foam, 75mm thick.
	Side Door	Yes, one.

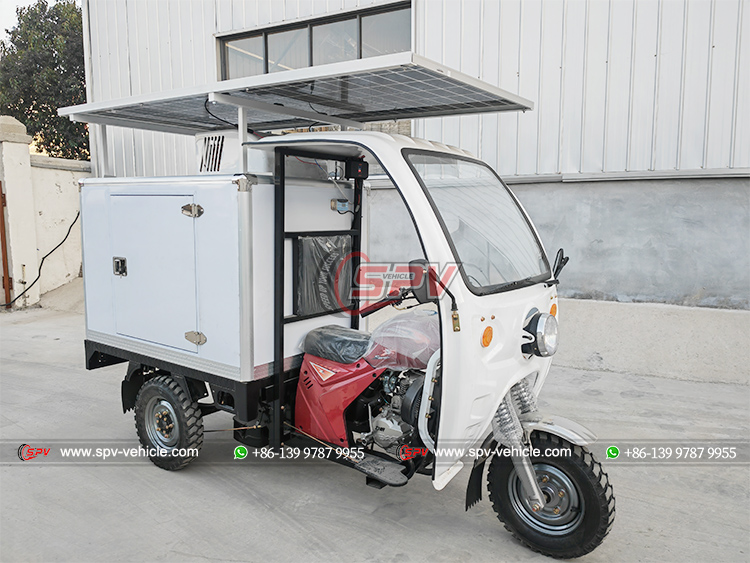

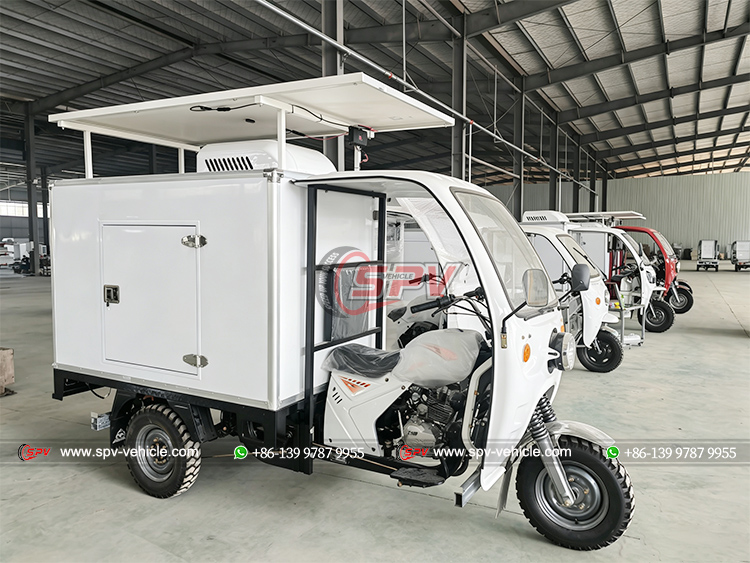

1 Ton Refrigerator Tricycle in Workshop	Cooling Room Tricycle - Front Right

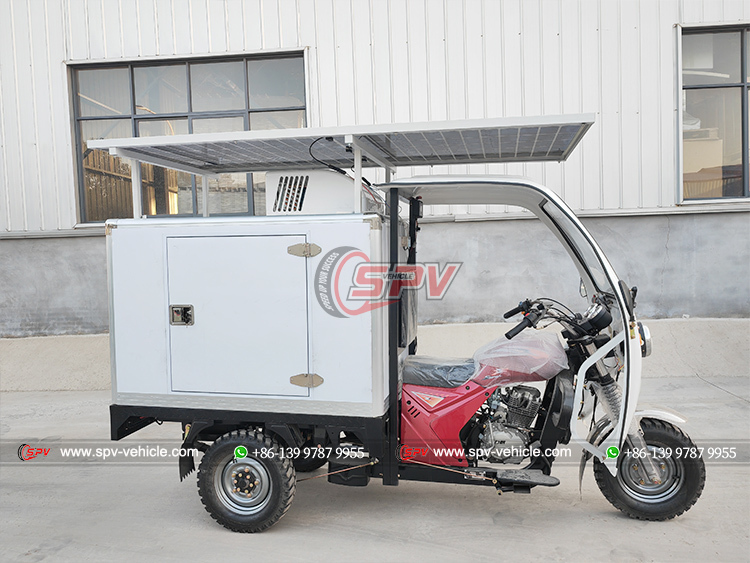

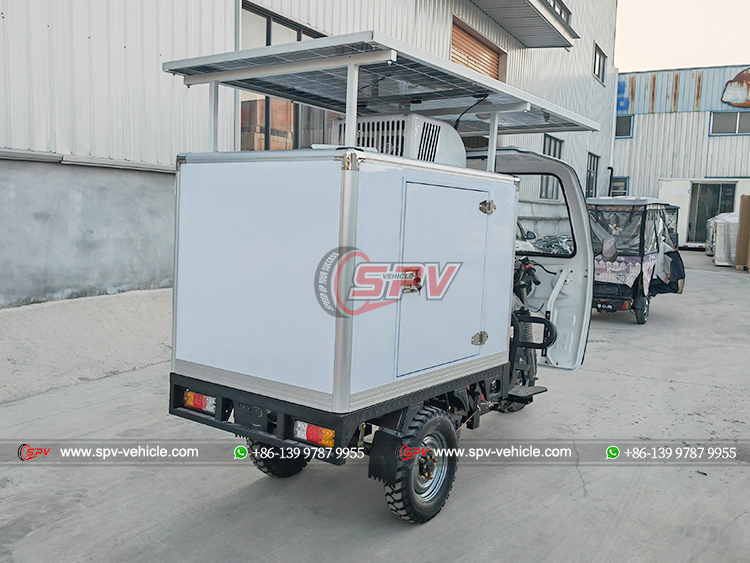

1,000 KG Frozen Tricycle - Right	1,000 Kg Reefer Tricycle - Rear Right

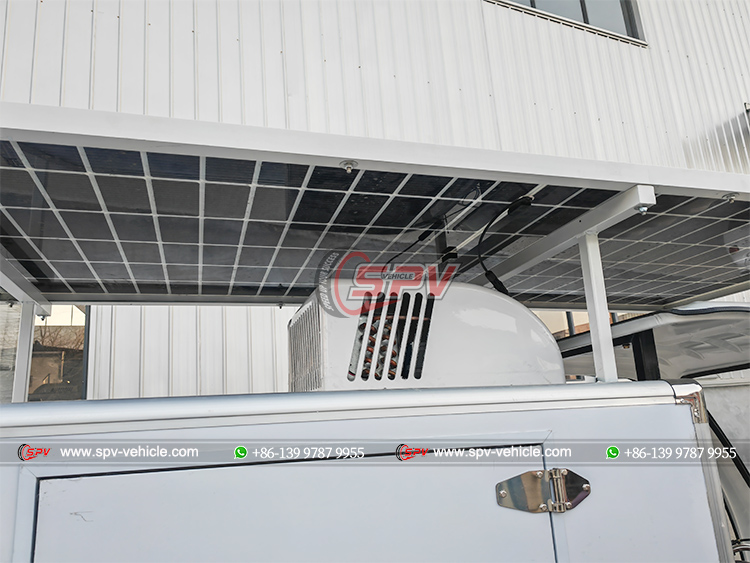

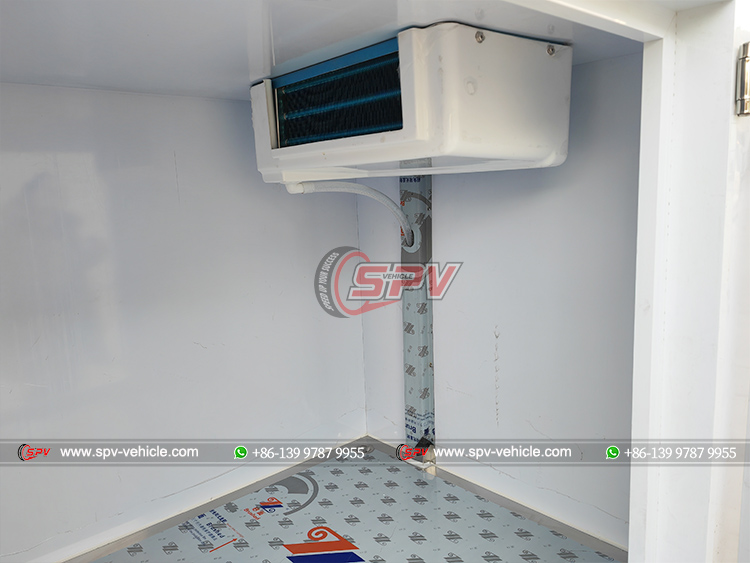

Refrigerator Unit Inside Tricycle	Top Side Refrigerator Unit of Tricycle
