Sewer Jetting Truck Dongfeng
3,000 Litres High Pressure CleaningTruck
Sewer Jetting Truck Dongfeng
Function:

Water jetting truck (also called high pressure cleaner truck, water jetting truck, sewer flushing truck, water jetting cleaner, water jetting truck, sewer cleaning truck, high pressure water truck, etc.)  is ideal for removing stones, bottles, cans, grease, sludge, and other debris from sanitary sewer and/or storm drain lines by the flushing action of high-pressure water.

Water Jet Cleaners carry a high pressure pump, a water tank, high-pressure hoses and nozzles. The nozzle will get impulsion and make a move itself forward by jetting high-pressure water. It scrapes the accumulation out.

Features:

---- Dongfeng chassis - one of the best and oldest chassis brand in China.
---- Chaoyang engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- Italy imported high pressure pump, super powerful, efficient pump in and out
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:



Sewer Jetting Truck Dongfeng (3,000 litres)
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 5990 * 1980 * 2150 mm
GVW / Kerb Weight 7,360 kg / 3,820 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Yuchai engine
Power 120 Hp (88 KW)
Displacement 2982 ml
Emission Standard Euro II
Chassis Drive Type 4X2, left hand drive
Transmission Manual, 5-speed forward, 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Tank Capacity 3,000 Litres ( 800 gallons)
Tank Material Carbon steel
High Pressure Pump Italy Imported brand / 16 Mpa
Flow Speed 132 L/min
Hose High pressure hose 60 m long
Hose Diameter Interior: 25 mm; Exterior: 32 mm
Nozzles A cluster of nozzles included
All standard accessories: manhole, tool kit, English manual……..
Optional ** Tank material could be stainless steel.
** High pressure hose length could be customized.

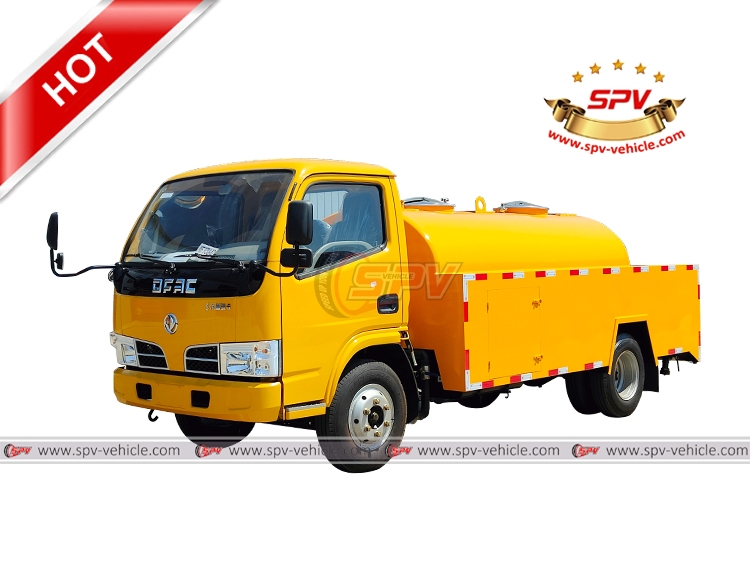

3,000 Litres Sewer Jetting Truck Dongfeng - F1
Front View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - LF
Left Front View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - LS
Left Side View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - LB
Left Back View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - RF
Right Front View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - RS
Right Side View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - RB
Right Back View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - B
Back View of Sewer Jetting Truck Dongfeng(3,000 Litres)

3,000 Litres Sewer Jetting Truck Dongfeng - B1
Sewer Jetting Truck Dongfeng(3,000 Litres) - Operation Box

3,000 Litres Sewer Jetting Truck Dongfeng - Front Spraying
Sewer Jetting Truck Dongfeng(3,000 Litres) -  Front Spraying

3,000 Litres Sewer Jetting Truck Dongfeng - Rear Spraying
Sewer Jetting Truck Dongfeng(3,000 Litres) -  Rear Spraying

3,000 Litres Sewer Jetting Truck Dongfeng - Hose
Sewer Jetting Truck Dongfeng(3,000 Litres) -  Hose Reel

3,000 Litres Sewer Jetting Truck Dongfeng - Jetting
Sewer Jetting Truck Dongfeng(3,000 Litres) -  High Pressure Jetting
