Sewer Cleaner DONGFENG
16,000Litres Vacuum Tank
Sewer Cleaner DONGFENG

Sewer cleaner (also called truck mounted sewage vacuum cleaner, vacuum tank truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, cesspit emptier, gully emptier etc.) is used to collect, transport and discharge liquid such as waste water, waste oil, sludge, septic, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

SPV sewage vacuum cleaners are available in several standard size with tank capacity of 4,000L (1060gals), 6 ,000L (1600gals), 8 ,000L (gals), 10 ,000L (2100gals), 12 ,000L (3200gals), 14 ,000L (3700gals), 16 ,000L (4200gals), 18 ,000L (4800gals) ……

Cylinderial vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. With full opening design, discharge can be very quick and complete.


---- Vacuum tank mounted on DONGFENG – KINLONG rigid chassis, perfect performance.
---- Cummins diesel engine, super powerful, reliable performance, no overhaul within 100,000 km.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

Similar Key Words:   sewage suction truck, sewage vacuum truck, suction sewage tanker truck, waste vacuum tanker, oil vacuum tanker, waste oil collection tanker, sewage suction truck, vacuum cleaning truck

 Sewer Cleaner Dongfeng (16,000 Litres)
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 9600 * 2500 * 3690 mm
GVW / Kerb Weight 25,000 kg / 12,305 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 260 Ps (191 KW)
Displacement 8300 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left or right hand drive
Transmission 9-speed front, 1 reverse
Wheelbase/No. of axle 4350+1300 mm / 3
Tyre Specification 11.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Tank Capacity 16,000 Litres (about 4,200 gallons)
Tank Material High quality carbon steel (mild steel), with anti-rust coating inside tanker
Suction Head 7m
Vacuum Pump Highly efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m.
Hose High quality, wire strengthened hose
Install vacuum Pump drive by engine through PTO, 2sets of hydraulic cylinders. one multi-way valve, two pressure gauges, one water-gas separator, one oil-gas separator, one oil tank reservoir, a level inspection window and a piece of 6m suction hose.
Rear door can be hydraulic opened for complete discharge of solid stuff.
Optional ** Tank material could be carbon steel, stainless steel..…..
** Vacuum pump could be imported brand……

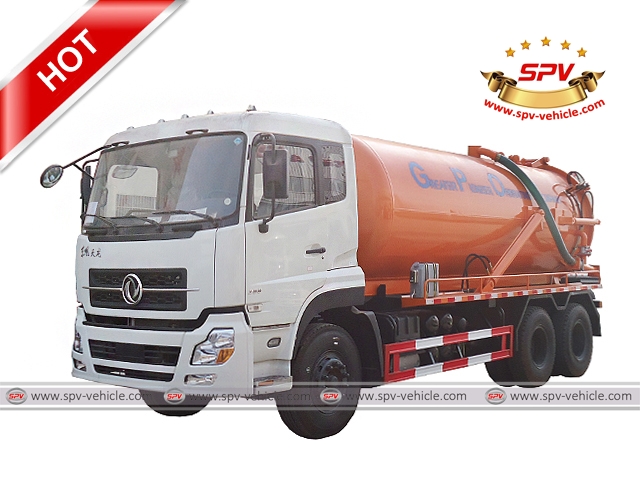

Photo 1: Front view of 16,000Litres Sewage Vacuum Cleaner Dongfeng

Photo 2: Side view of 16,000Litres Sewage Vacuum Cleaner Dongfeng

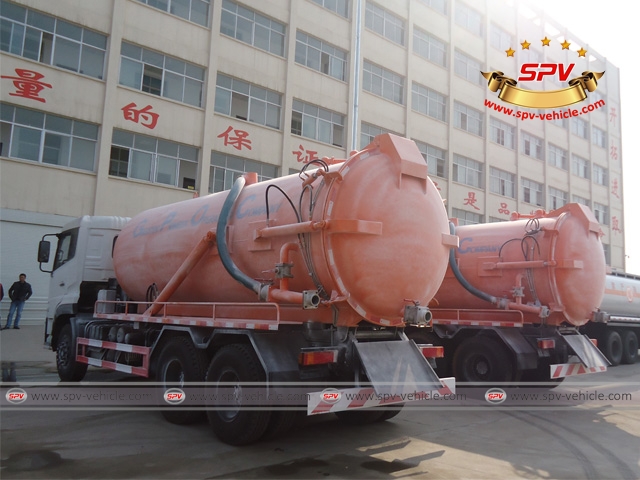

Photo 3: Rear view of 16,000Litres Sewage Vacuum Cleaner Dongfeng

Photo 4: Sewage vacuum tank can be lifted hydraulically to 40-45 degree

Photo 5: Vacuum tanker rear door can be opened and closed hydraulically

Photo 6: 16,000Litres Sewage Vacuum Cleaners were ready for East Africa
