ShangHai SPV Special Vehicle Co., Ltd.

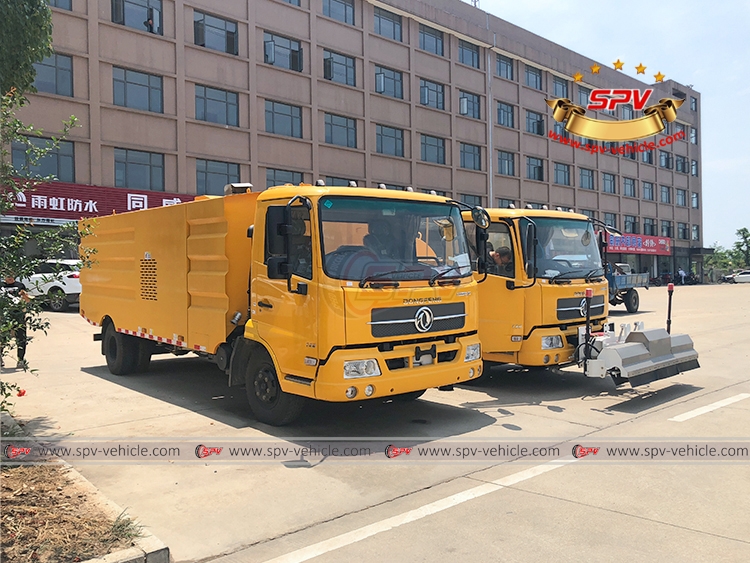

Road sweeper truck(also called street sweeper, road sweeping truck, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is used for all cleaning, brushing and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city/ municipal roads and areas.
It is suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
It is composed of water tank, dustbin, sprayers, sweeping brooms, auxiliary engine, air blower, etc.
It is widely used in the municipal sanitation field because of convenient operation and high efficiency.
---- Dongfeng chassis, perfect performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
---- 6 CBM dustbin and 2 CBM water tank
Similar Key Words: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck
| Road Sweeper Truck Dongfeng | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 7320 * 2580 * 2695 mm | |
| GVW / Kerb Weight | 9,600kg / 5,200 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins | |
| Power | 140 Ps (103 KW) | |
| Displacement | 3900 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X2, right hand drive |
| Transmission | 6-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 8.25R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Water Tank Capacity | 2,000Litres (About 500 gallons) | |
| Dustbin Material | Stainless Steel | |
| Dustbin Capacity | 6 CMB | |
| Sweeping Capacity | 42,000 m³/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 2800mm | |
| Brooms | 2 sets at each side, at diameter 900 mm | |
| Auxiliary Engine |
JMC engine (ISUZU technology) 77 HP (57 KW), super powerful |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional |
** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
