Road Sweeper ISUZU
4 CBM dustbin and 1.5 CBM water tank
Road Sweeper ISUZU
Function:

Road sweeper (also called street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.



Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.



Specification:

Similar Key Words: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck

Road Sweeper ISUZU ( 4 CBM dustbin & 1.5 CBM water tank )
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 6490 * 2000 * 2600 mm
GVW / Kerb Weight 7,300kg / 5,770kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU
Power 120 Ps (88 KW)
Displacement 2999 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 105 km/h
Paint Metallic paint
Superstructure Water Tank Stainless Steel
Dustbin Capacity 4 CBM
Dustbin Material Stainless Steel
Water Tank Capacity 1,500 Litres (About 400 gallons)
Sweeping Capacity 42,000 m³/h
Sweeping Speed 3-15 km/h
Max Sweeping Width 2800mm
Brooms 2 sets at each side
Auxiliary Engine JMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

Road Sweeper ISUZU - LF
Photo 1: Left front view of road sweeper ISUZU

Road Sweeper ISUZU - LB
Photo 2: Left back view of road sweeper ISUZU

Road Sweeper ISUZU - B
Photo 3: Back view of road sweeper ISUZU

Road Sweeper ISUZU - RF
Photo 4: Right front view of road sweeper ISUZU

Road Sweeper ISUZU - RS
Photo 5: Right side view of road sweeper ISUZU

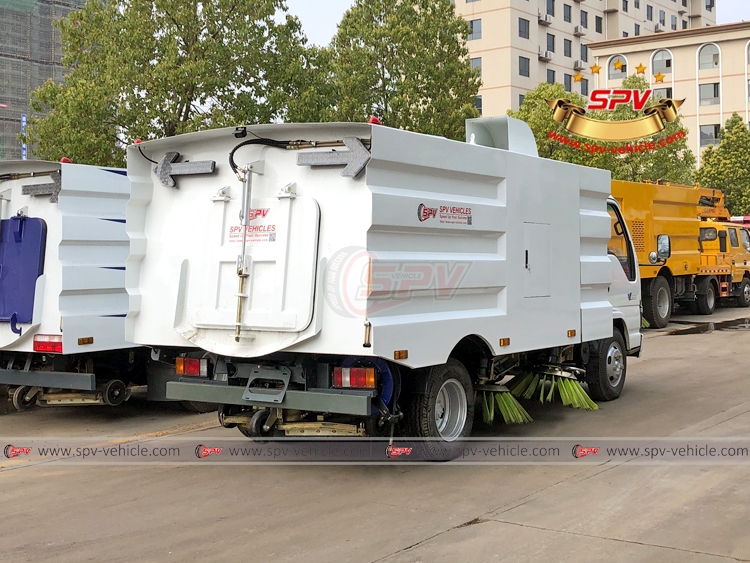

Road Sweeper ISUZU - RB
Photo 6: Right back view of road sweeper ISUZU

*** To Vietnam - 3 units of Lift Platform Truck ISUZU and 2 untis of Road Sweeper Truck ISUZU ***

Lift Platform Truck ISUZU and Road Sweeper Truck
Photo 7: To Vietnam  - 5.5 m ISUZU Lift Platform Truck and ISUZU Road Sweeper Truck

Lift Platform Truck ISUZU and Road Sweeper Truck - RS

Photo 8: To Vietnam  - 5.5 m ISUZU Lift Platform Truck and ISUZU Road Sweeper Truck - RS

Lift Platform Truck ISUZU and Road Sweeper Truck - B
Photo 9: To Vietnam  - 5.5 m ISUZU Lift Platform Truck and ISUZU Road Sweeper Truck - B

Lift Platform Truck ISUZU and Road Sweeper Truck - LF
Photo 10: To Vietnam  - 5.5 m ISUZU Lift Platform Truck and ISUZU Road Sweeper Truck - LF

Road Sweeper ISUZU - In Vietnam Port

Photo 11: 2 units of ISUZU Road Sweeper Truck in Vietnam Port

Road Sweeper ISUZU - In Port
Photo 12: 2 units of ISUZU Road Sweeper Truck in Vietnam Port
