Compactor Garbage Truck
16㎥ Compactor Garbage Truck
Compactor Garbage Truck
Compressed garbage truck (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart ,bin lorry , waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermetical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items , to load and transport more garbage by one time. Dirty liquid flows in waste sink, perfectly preventing re-pollution. When arriving at destination , the garbage can be dumped completely. It is ideal solution for solid waste collection.
The compression garbage truck controlled by the integration of the machinery, electricity and hydraulic , with manual control system. Crush the garbage through filling, pushing and spading, finally make the waste compaction in the dustbin.


---- Dongfeng kinland chassis, perfect performance
----Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life

Garbage Compactor Truck Dongfeng Kinland (16㎥)
General Vehicle Brand SPV
Chassis Brand Dongfeng Kinland
Overall Dimension 10010X2496X3450 mm
GVW / Kerb Weight 25,000 kg / 14,505 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner equipped
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 260 Hp (191 KW)
Displacement 8300 ml
Emission Standard Euro Ⅲ
Chassis Drive Type 6X4, Right hand drive
Transmission 9 front and 1 reverse
Wheelbase/No. of axle 4350+1300 mm / 3
Tyre Specification 10.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure and the main characteristic
Garbage box Capacity 20 ( 5,284gallons)
Garbage box Material Carbon steel

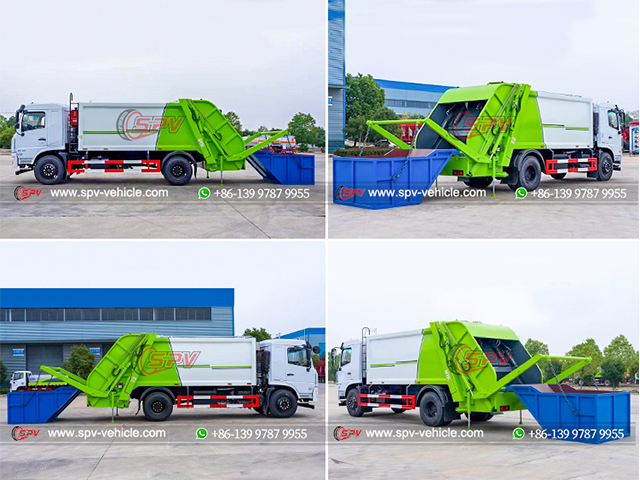

1: Can choose 240L(single bin、double bins)or 360L、660L、1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.
3: With working device of emergency braking stop button.
4: Garbage body use frame design, elegant, strong structure, large effective capacity.
5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
7: All other standard accessories: Tool kit, English manual…

20,000 Litres compressed garbage truck
20,000 Litres compactor garbage truck-side view

20,000 Litres garbage compactor left back view

20,000 Litres garbage compactor right back side view
Similar Key Words:  Garbage compactor, trash compactor, waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry, garbage compactor vehicle, garbage compacting truck, refuse collector, waste compact truck, garbage compactor truck, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry ,waste collection vehicle.
