12 CBM Compactor Garbage Truck JAC, Compression Garbage Truck, in China | SPV
Home > Garbage Truck > Garbage Compactor Truck
Garbage Compactor JAC
12 CBM Compactor Garbage Truck
Garbage Compactor JAC
Function:

Compressed garbage truck (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart ,bin lorry , waste collection vehicle) is designed to collect and transport municipal solid waste.

Garbage compactor is composed of hermetical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items , to load and transport more garbage by one time. Dirty liquid flows in waste sink, perfectly preventing re-pollution. When arriving at destination , the garbage can be dumped completely. It is ideal solution for solid waste collection.

The compression garbage truck controlled by the integration of the machinery, electricity and hydraulic , with manual control system. Crush the garbage through filling, pushing and spading, finally make the waste compaction in the dustbin.



Features:
----JAC chassis, perfect performance
----JAC engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:


Garbage Compactor Truck JAC (12 CBM)
General Vehicle Brand SPV
Chassis Brand JAC
Overall Dimension 9000 X 2050 X 3000 mm
GVW / Kerb Weight 16,000 kg / 11,100 kg
Cab Cab Capacity 3 persons allowed
Engine Fuel Type Diesel
Engine Brand CUMMINS engine
Power 185 Hp (136 KW)
Displacement 6700 ml
Emission Standard Euro IV
Chassis Drive Type 4x2, left hand drive
Transmission 6 front and 1 reverse
Wheelbase/No. of axle 4500 mm / 2
Tyre Specification 10.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 110 km/h
Paint Metallic paint
Superstructure and the main characteristic

Garbage box Capacity 12 CBM (around 8 Tons)
Garbage box Material Carbon steel
1: Can choose 240L(single bin、double bins)or 360L、660L、1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.
3: With working device of emergency braking stop button.
4: Garbage body use frame design, elegant, strong structure, large effective capacity.
5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
7: All other standard accessories: Tool kit, English manual…

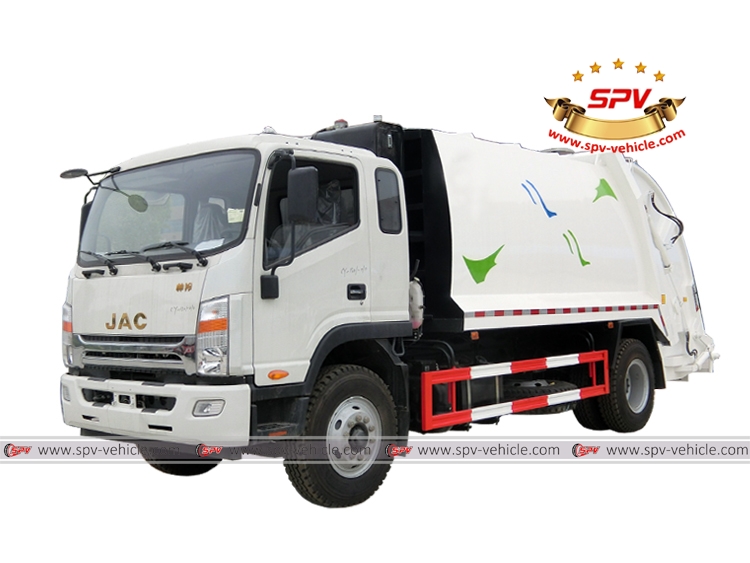

6,000 Litres compactor garbage truck JAC-back side view

6,000 Litres compactor garbage truck JAC-side view

6,000 Litres compression garbage truck JAC-front view

6,000 Litres garbage compactor JAC-back side view

Similar Key Words:  Garbage compactor, trash compactor, waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry, garbage compactor vehicle, garbage compacting truck, refuse collector, waste compact truck, garbage compactor truck, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry ,waste collection vehicle.
