Articulated Boom Lift Dongfeng
14-16m Platform Truck
Articulated Boom Lift Dongfeng
Function:
Articulated boom lift (also called hydraulic man lift, aerial vehicle, aerial platform, aerial lift, aerial platform truck, truck mounted aerial work platform, aerial work platform price, aerial work platform truck, aerial truck with basket is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

SPV aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Features:

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Specification:
Similar Key Words: cost of aerial platform truck, truck mounted aerial work platforms for sale, aerial work platform price, aerial work platform trucks manufacturer, aerial truck with basket from China

Articulated Boom Lift Dongfeng (14-16M)
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 7650 x 1980 x 3150 mm
GVW / Kerb Weight 7,300 kg / 6,975 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand Dongfeng engine
Power 95Ps (70KW)
Displacement 3856 ml
Emission Standard Euro III, IV
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 5 forward gears & 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 7.00-16 14PR, 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 14m - 16 m
Outriggers 4pcs, H-type; Hydraulically extend and retract
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional Insulated cage; Cargo box; Hoist hook with cables.


Front view of 14m-16m Articulated Boom Lift Dongfeng

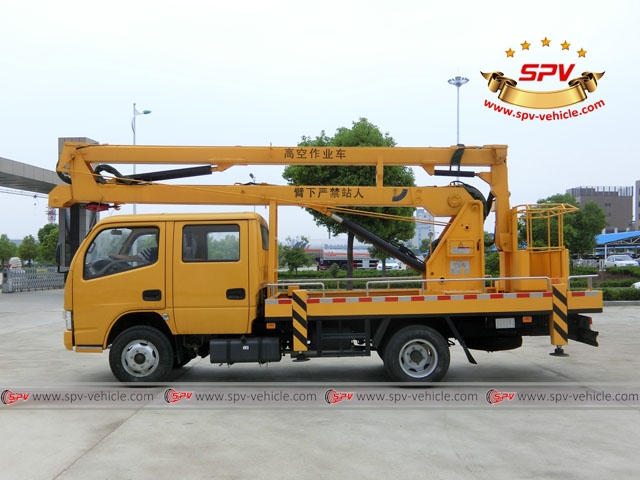

Side view of 14m-16m Articulated Boom Lift Dongfeng


Rear view of 14m-16m Articulated Boom Lift Dongfeng
