Aerial Platform Truck ISUZU
18M Aerial Lift Truck
Aerial Platform Truck ISUZU
Function:
Aerial platform truck (also called truck mounted aerial work platform, aerial lift, hydraulic beam lifter, hydraulic aerial platform vehicle, aerial boom lift, bucket truck, overhead working truck, sky lift etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

SPV aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- The working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Safty Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc;
---- Hoist hook with cables can be equipped for the function of a crane;
---- Cargo box is available to transport goods.
Specification:

Aerial Platform Truck ISUZU (18M)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 8100 x 2280 x 3300 mm
GVW / Kerb Weight 6,800 kg / 6,560 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4KH1-TCG40
Power 120 Ps (88KW)
Displacement 2999 ml
Emission Standard Euro III, IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle 3815 mm / 2
Tyre Specification 7.00-16 or 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 18 M
Outriggers 4pcs, H-type; Hydraulically extend and retract
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional Insulated cage; Cargo box; Hoist hook with cables can be equipped for the function of a crane.

Similar Key Words:  Aerial working platform (truck mounted), cargo truck mounted aerial platform, truck mounted aerial lift, aerial platform truck, hydraulic aerial truck, hydraulic lifting platform truck, telescopic platform truck.

18m Aerial Platform Truck ISUZU-LF
Photo 1: Left front view of ISUZU Truck mounted Aerial Work Platform 18m

18m Aerial Platform Truck ISUZU-F
Photo 2: Front view of 18m ISUZU Aerial Work Platform

18m Aerial Platform Truck ISUZU-LB
Photo 3: Left back view of 18m ISUZU Aerial Work Platform

18m Aerial Platform Truck ISUZU-RF
Photo 4: Right front view of 14m-18m ISUZU Aerial Work Platform

18m Aerial Platform Truck ISUZU-RB

Photo 4: Right back view of 18m ISUZU Aerial Work Platform

--- More shipments of ISUZU Aerial Platform Truck to Ghana ---

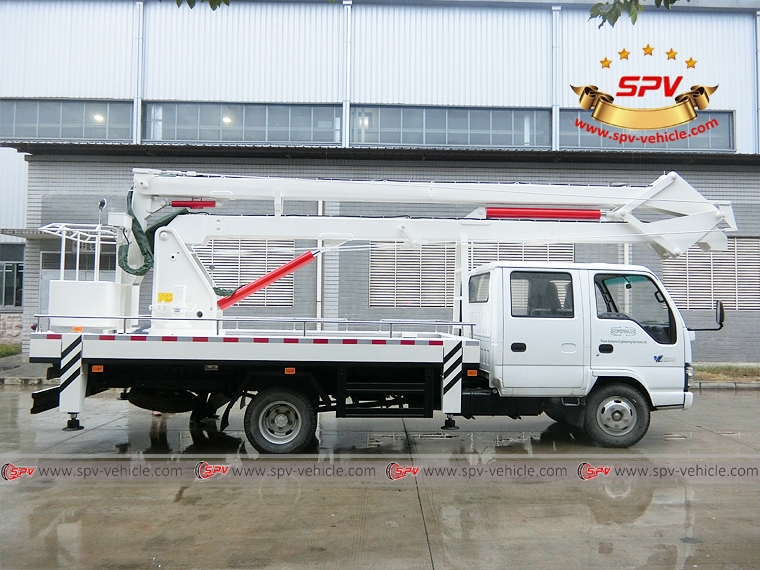

Right side view of 18m Aerial Platform Truck ISUZU
Photo 5 : Right side view of 18m Aerial Platform Truck ISUZU

Left back view of 18m Aerial Platform Truck ISUZU
Left back view of 18m Aerial Platform Truck ISUZU

To make the truck more easily to control, we design the operation panel both at the bottom of truck and in the aerial cage.


18m Aerial Platform Truck ISUZU- Operation Systems
18m Aerial Platform Truck ISUZU- Operation Systems

18m Aerial Platform Truck ISUZU- Controlled on the platform
18m Aerial Platform Truck ISUZU, control on the platform

8m Aerial Platform Truck ISUZU- 04
Lifting Height Test, from the floor of basket to ground

18m Aerial Platform Truck ISUZU- 03
18m Aerial Platform Truck ISUZU, control in the aerial cage


--- More shipments of ISUZU Aerial Platform Truck to Angola ---
Aerail Platform Truck ISUZU - RB
Right back view of ISUZU aerial platform trucks (18 m)

With Angola Client
Angola client visit our company for inspection


General progress of assembling aerial platform truck:

18m Aerial Platform Truck ISUZU- Assembling
18m Aerial Platform Truck ISUZU- Assembling


Our advanced workshop of aerial platform truck:

Aerial platform truck workshop
Aerial platform truck workshop
