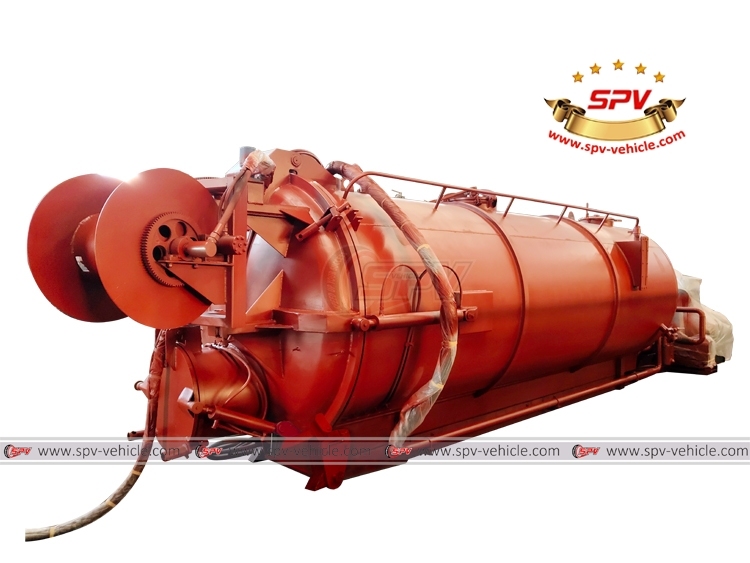

Name: SPV 13500 Liters Vaccum Tank Body SKD
Brand: SPV Group Limited.
Rating: 5 (1 reviews)

Function:
Vacuum jetting tank SKD (also called vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) will be used to mounted onto chassis to clean and collect liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

It has two main parts. The high pressure jetting part to remove the blocked sewage, the other vacuum suction part collect the sewage. tipping sewage and solid stuff.

Features:
---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Adopt imported high pressure pump or equivalent China top brand pump.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

Specitfication:

Sewage Disposal Truck ISUZU (13,500 Litres)
General	Make & Model	SPV
	Dimension	8900 * 1900 * 2400 mm
	Kerb Weight	7,800 kg
Superstructure	Water Tank	Tank Capacity	4,500 Litres (about 1,100 gals)
		Tank Material	Carbon steel
		Tank Thickness	6 mm
		High Pressure Pump	Italy Imported brand / 16 Mpa
		Flow Speed	170 L/min
		High Pressure Hose	60 m
		Hose Diameter	19 mm
		Hose Winding & Rewinding	Hydraulic Control
		Hose Reel Swiveling	Hydraulic Control
		Nozzles	A cluster of nozzles included
	Sewer Tank	Tank Capacity	9,000 Litres (about 2,300 gals)
		Tank Material	Carbon steel
		Tank Thickness	6 mm
		Vacuum Pump	Highly efficient, vacuum rate 93%, quick suction and discharge
		Suction Valve	4”
		Discharge Valve	24” hydraulic opened valve and 6” manual valve
		The tank could be hydraulic lifted and rear door can be hydraulic opened for complete discharge of solid stuff.
	All standard accessories: anti-fill valve, sight glass, tool kit, English manual……..
Optional	Tank material could be stainless steel. High pressure hose length could be customized.

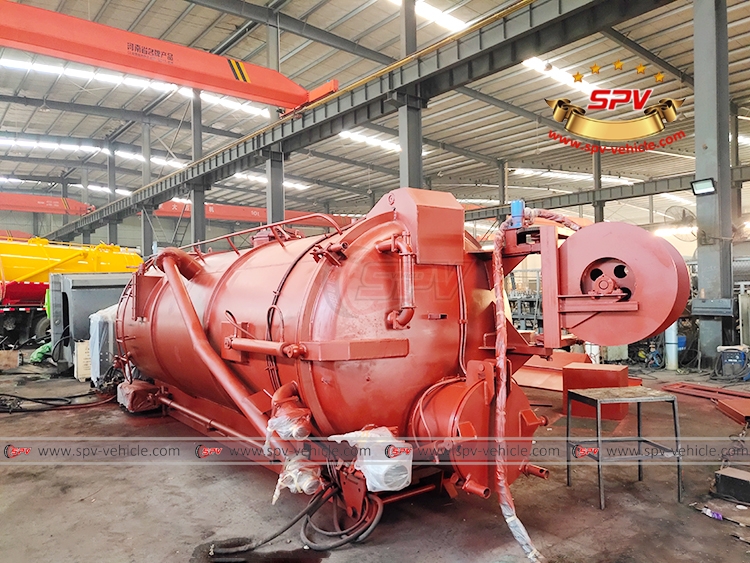

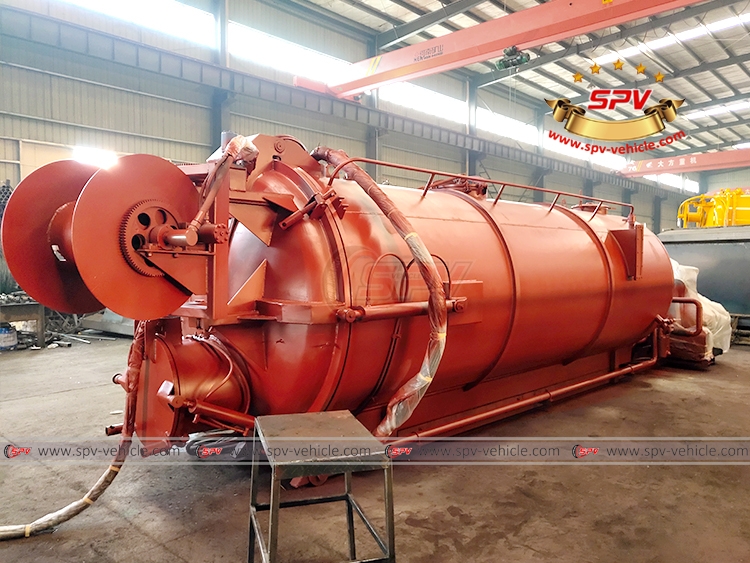

13,500 Litres Sewage Jetting Tank SKD	13,500 Litres Sewer Jetting Tank SKD

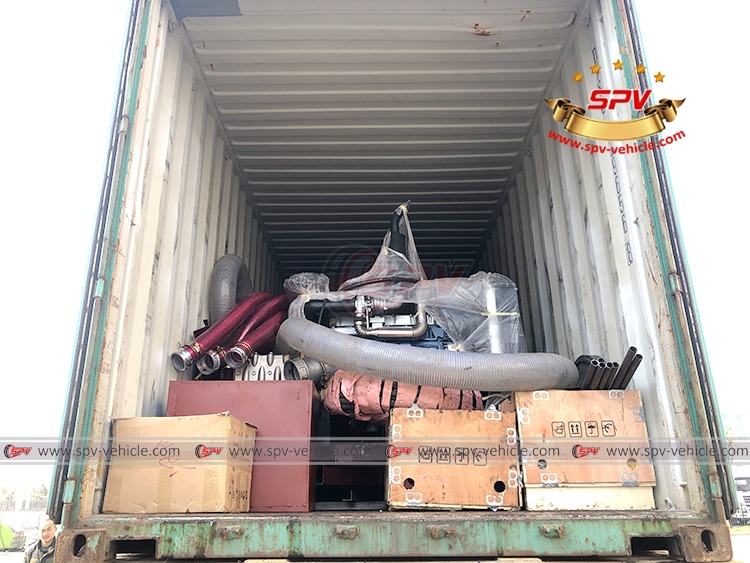

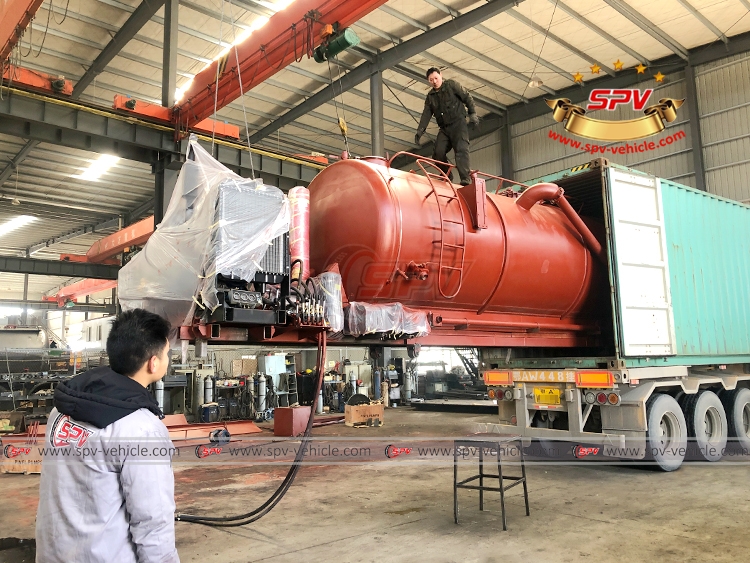

13,500 Litres Sewage Vaccum Tank Loading into Container	13,500 Litres Vacuum Jetting Tank and Spare Parts to Brunei

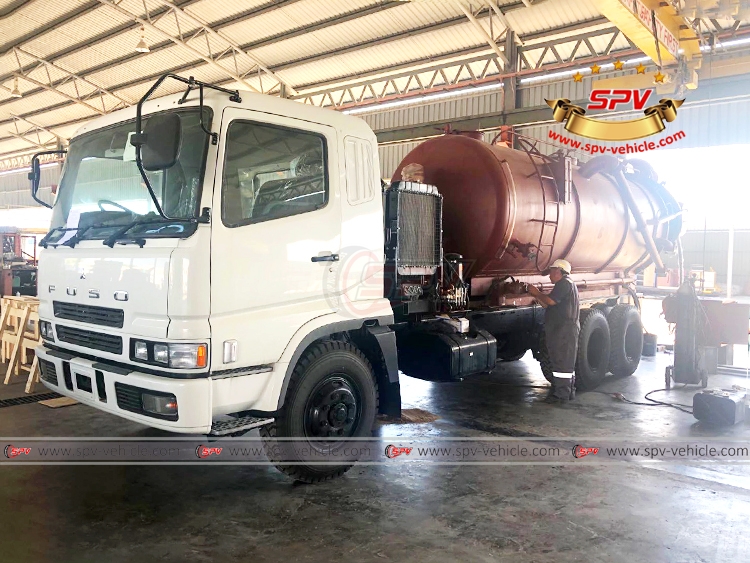

Brunei Client Installed Sewage Tank onto Chassis
