Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Food Waste Truck ISUZU (6 m³ food garbage collection truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7600 * 2500 * 2730 mm | |
| GVW / Kerb Weight | 10,550 kg / 4,690 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Hp (140 KW) | |
| Displacement |
5193 ml |
|
| Emission Standard |
Euro V |
|
| Chassis | Drive Type |
4X2, right hand drive |
| Transmission |
Manual, 6-speed forward , 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
235R17.5 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
6 m³ |
| Waste Box Material |
Anti-corrosive steel |
|
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

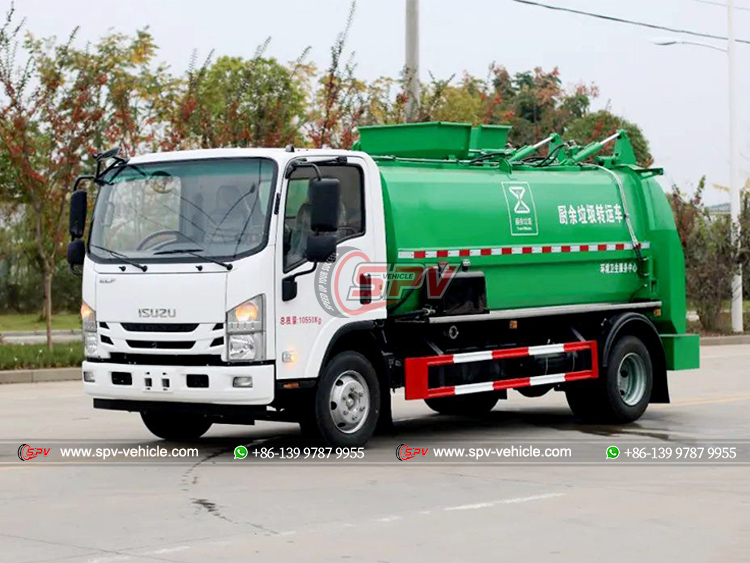

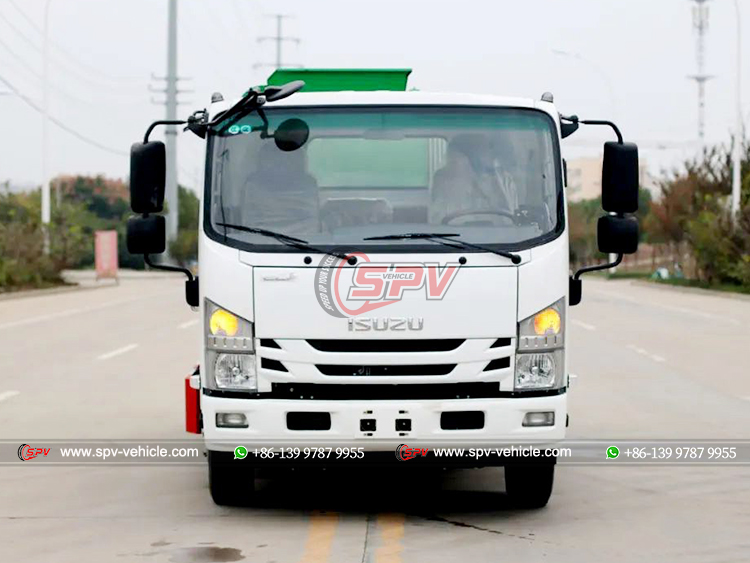

| ISUZU NPR Food Waste Delivery Truck - Front | ISUZU 6CBM Food Waste Disposal Truck - Front Left |
 |
 |

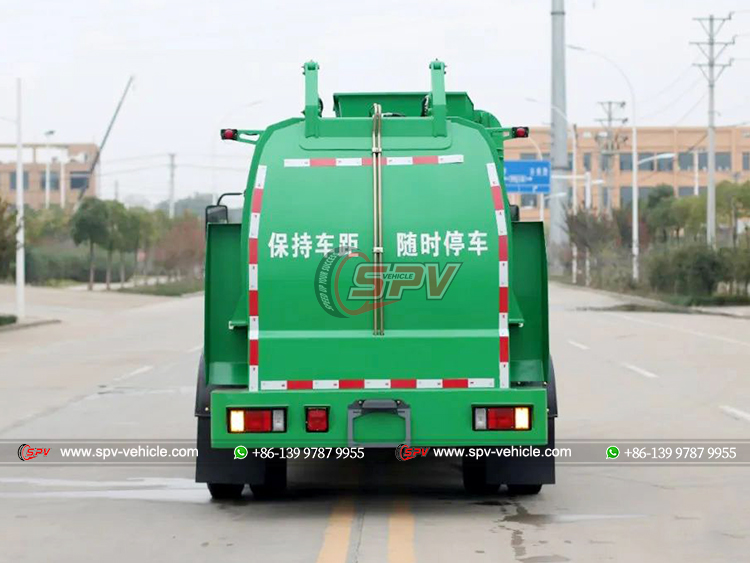

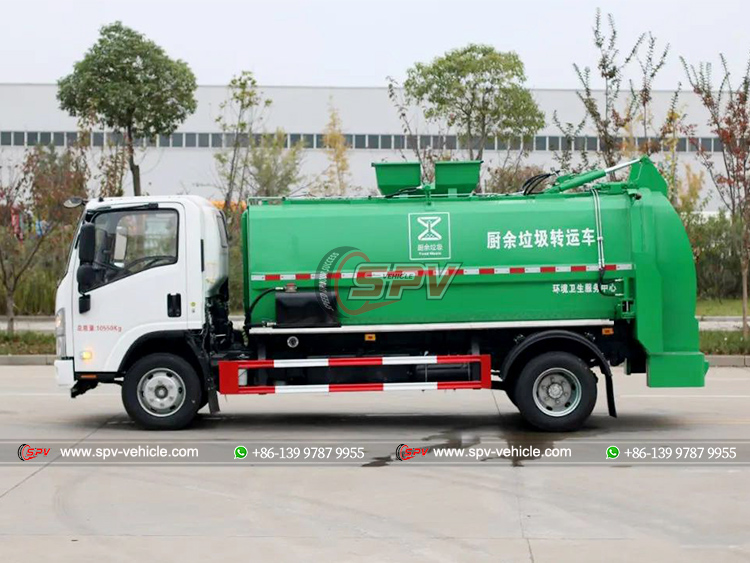

| ISUZU NPR Kitchen Waste Removal Truck - Left | ISUZU NPR Food Waste Transport Truck - Rear |
