Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Garbage Compactor Truck ISUZU (4 m³ garbage compactor truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6400 * 2200 * 2600 mm | |
| GVW / Kerb Weight | 7,300 kg / 4,200 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 Hp (88 KW) | |
| Displacement |
2999 ml |
|
| Emission Standard |
Euro III |
|
| Chassis | Drive Type |
4X2, right hand drive |
| Transmission |
Manual, 5-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
215/70R17.5 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
4 m³ |
| Waste Box Material |
Anti-corrosive steel |
|
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

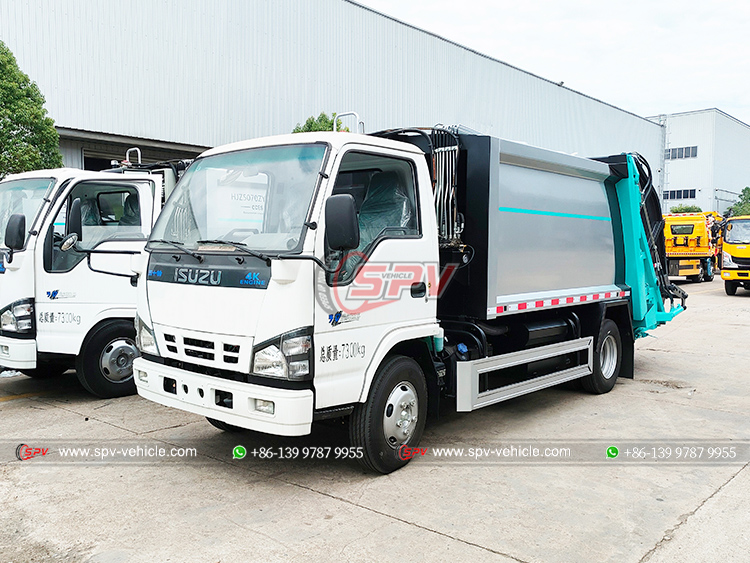

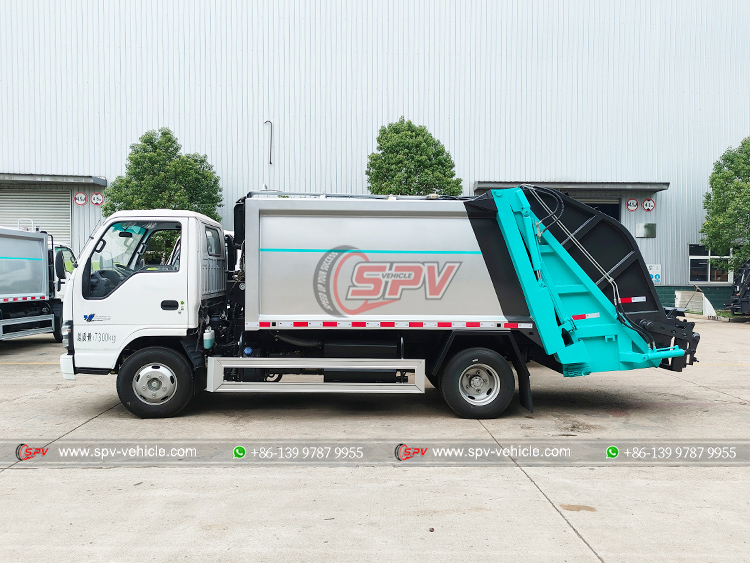

| ISUZU 4m³ Trash Collection Truck - Front Left | ISUZU 6 Wheels Rubbish Hauling Truck - Right |
 |
 |

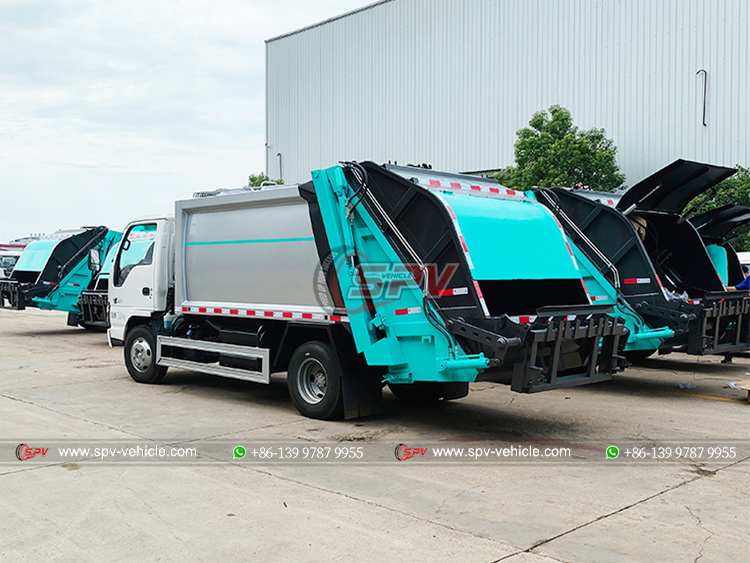

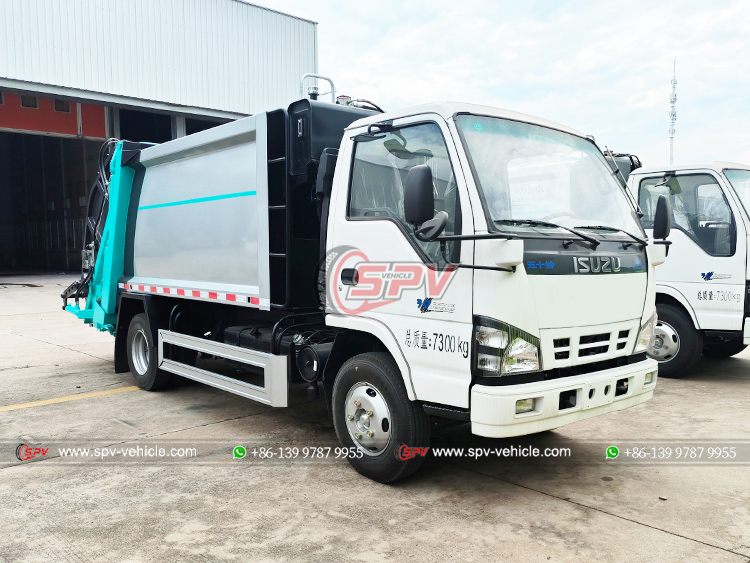

| ISUZU 4x2 Garbage Delivery Vehicle - Rear Left | ISUZU 4x2 Junk Removal Truck - Front Right |
 |
 |

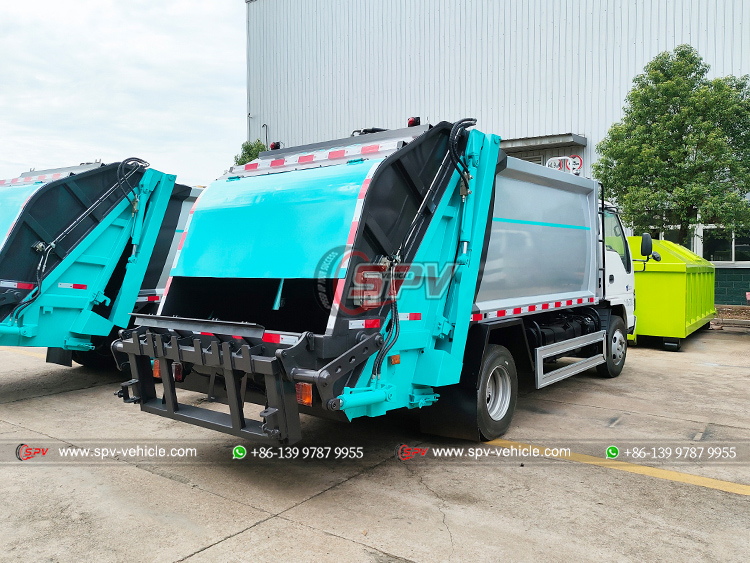

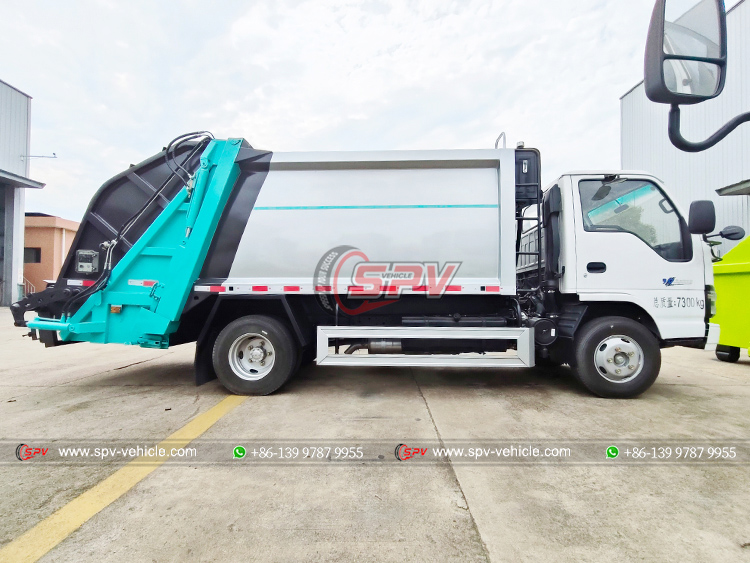

| ISUZU Household Garbage Hauling Truck - Right | ISUZU Light Rubbish Compactor Truck - Rear Right |
 |
|

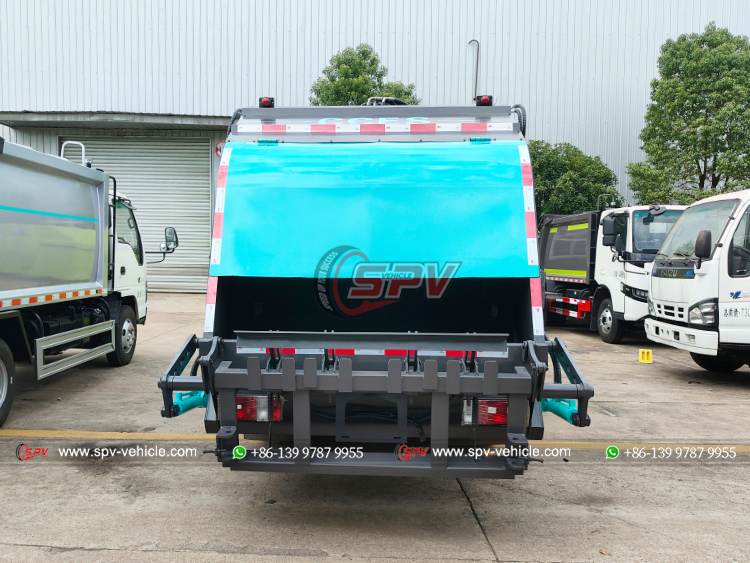

| ISUZU Soild Waste Collection Truck - Rear |
