Refueling Tank Truck ISUZU
4,000 Litres Carbon Steel Fuel Truck
Refueling Tank Truck ISUZU
Function:

Refueling tank truck (also called oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.

Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.

Specification:

 Fuel Tanker Truck ISUZU (4,000 Litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 5840 * 1980 * 2200 mm
GVW / Kerb Weight 7,300 kg / 2,690 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4JB
Power 98 Ps (72 KW)
Displacement 2771 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission 5 speed forward, 1 reverse
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Tank Capacity 4,000 Litres (About 1000 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

To Djibouti in 2022
4,000 Litres Refueling Tank Truck ISUZU - LF

4,000 Litres Refueling Tank Truck ISUZU - Hose

4,000 Litres Refueling Tank Truck ISUZU - Nozzle Testing

4,000 Litres Refueling Tank Truck ISUZU - Loading into Container

To Ghana in 2021
4,000 Litres Refueling Tank Truck ISUZU - LF

4,000 Litres Refueling Tank Truck ISUZU - LS
4,000 Litres Refueling Tank Truck ISUZU - Discharge Box

To Djibouti in 2021

4,000 Litres Refueling Tank Truck ISUZU - B1
3 units ISUZU Fuel Trucks Shipping to Djibouti - 1

4,000 Litres Refueling Tank Truck ISUZU - B2
3 units ISUZU Fuel Trucks Shipping to Djibouti - 2

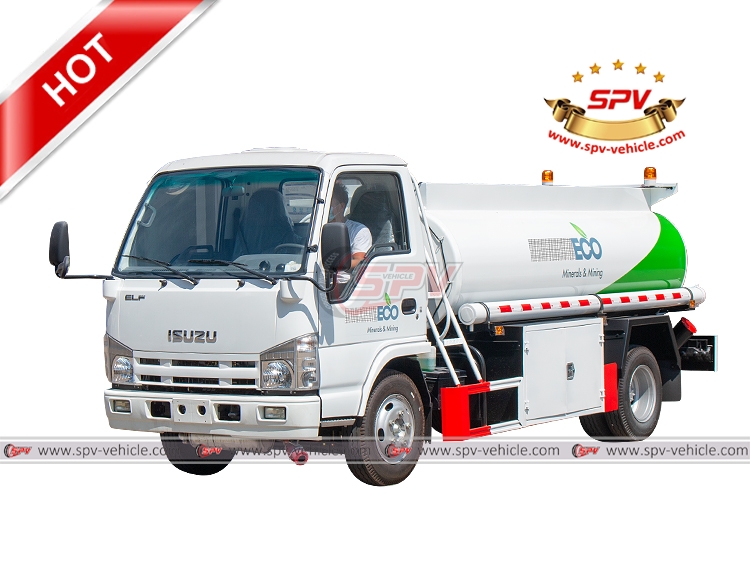

4,000 Litres Refueling Tank Truck ISUZU - F
Front View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - LF
Left Front View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - LS
Left Side View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - LB
Left Back View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - RF
Right Front View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - RS
Right Side View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - RB
Right Back View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - B
Back View of Refueling Tank Truck ISUZU(4,000 Litres)

4,000 Litres Refueling Tank Truck ISUZU - Top
Refueling Tank Truck ISUZU(4,000 Litres) - Top manhole with level mater probe

4,000 Litres Refueling Tank Truck ISUZU - Discharge Box
Refueling Tank Truck ISUZU(4,000 Litres) - Discharge box with level mater display

4,000 Litres Refueling Tank Truck ISUZU - Loading
Refueling Tank Truck ISUZU(4,000 Litres) - Loading into 20" container
