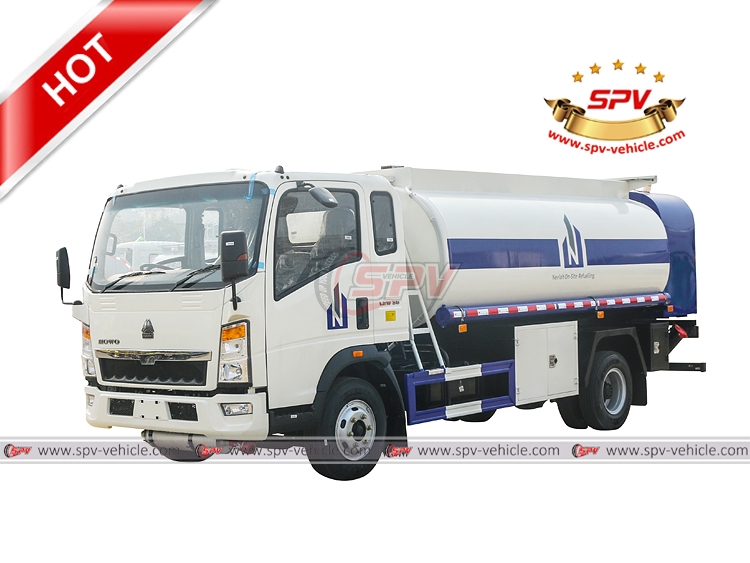

Fuel Truck Sinotruk(RHD)
8,000 Litres Refueling Truck
Fuel Truck Sinotruk(RHD)
Function:

Fuel truck (also called refueling truck, fuel tank truck, oil tanker truck, fuel bowser, diesel dispensing truck, petrol fuel tank, oil transfer truck, fuel oil tank truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.

Features:

---- Sinotruk-HOWO chassis, perfect performance.
---- Yunnei engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.

Specification:

 MiniMini<Fuel Truck Sinotruk HOWO (8,000 Litres)
General Vehicle Brand SPV
Chassis Brand Sinotruk - HOWO
Overall Dimension 6950 * 2160 * 2610 mm
GVW / Kerb Weight 10,000 kg / 5,160 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Yunnei engine
Power 116 Ps (85 KW)
Displacement 3760 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission 6-speed forward, 1 reverse
Wheelbase/No. of axle 3380 mm / 2
Tyre Specification 8.25R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Tank Capacity 8,000 Litres ( About 2,100 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

8,000 Litres Fuel Truck Sinotruk - Loading
Fuel Truck Sinotruk(RHD 8,000 Litres) - Loading into 40" HQ container

8,000 Litres Fuel Truck Sinotruk - F
Front View of
Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - LF
Left Front View of Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - L
Left Side View of Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - LB
Left Back View of Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - RF
Right Front View of Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - R
Right Side View of Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - RB
Right Back View of Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - B

Back View of Fuel Truck Sinotruk(RHD 8,000 Litres)

8,000 Litres Fuel Truck Sinotruk - Dispenser
Fuel Truck Sinotruk(RHD 8,000 Litres) - With Fuel Dispenser

8,000 Litres Fuel Truck Sinotruk - Discharge Box
Fuel Truck Sinotruk(RHD 8,000 Litres) - Discharging Box

8,000 Litres Fuel Truck Sinotruk - Cabin
Fuel Truck Sinotruk(RHD 8,000 Litres) - Cabin inside
