18,000 Litres (4,700 Gallons) Off-road Fuel Tank Truck, Fuel Transport Truck, Diesel Bowser Truck from China | SPV
Home > Tank Truck > Fuel Tanker Truck
Fuel Tank Truck North Benz(6x6)
18,000 Litres Fuel Transport Truck
Fuel Tank Truck North Benz(6x6)
Function:

Off-road fuel bowser(also called fuel tanker truck, mobile fuel tank truck, crude oil tanker, diesel tank truck, petroleum tanker, fuel refueler truck, truck aircraft refueling, mobile tank lorry) is used to transport oil, diesel, gasoline, kerosene, etc.

It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……

Oil pump equipped, with pump in pump out function.

As it is off-road trucks, so it is very good for tough road situation. It is more powerful then normal ones.




Features:

---- North Benz chassis, perfect performance.
---- Weichai engine(Chinese top brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.

Specification:
Similar Key Words: off road fuel transport truck, 6X6 petrol tanker, refueling tank truck, aviation refueling vehicle, aluminum fuel tanker

 Off-raod Fuel Tank Truck North Benz (6X6 drive / 18,000 Litres)
General Vehicle Brand SPV
Chassis Brand North Benz
Overall Dimension 9580 * 2500 * 3400 mm
GVW / Kerb Weight 25,000 kg / 12,400 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand Weichai engine(Chinese top brand)
Power 336 Ps (247 KW)
Displacement 9726 ml
Emission Standard Euro III
Chassis Drive Type 6X6, left hand drive
Transmission 9-speed front, 1 reverse
Wheelbase/No. of axle 4450+1450 mm / 3
Tyre Specification 12.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Tank Capacity 18,000 Litres ( About 4,700 gallons )
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

Fuel Tank Truck North Benz(6x6)-F

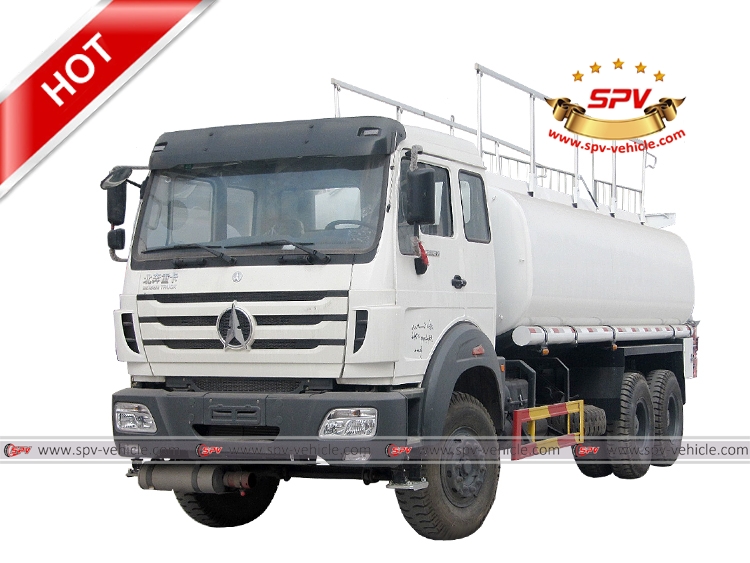

Photo 1: Front View of Off-road Fuel Tanker Truck North Benz (18,000 Litres)

Fuel Tank Truck North Benz(6x6)-LS
Photo 2: Left Side View of Off-road Fuel Tanker Truck North Benz (18,000 Litres)

Fuel Tank Truck North Benz(6x6)-RF
Photo 3: Right front View of Off-road Fuel Tanker Truck North Benz (18,000 Litres)

Fuel Tank Truck North Benz(6x6)-RS
Photo 4: Right Side View of Off-road Fuel Tanker Truck North Benz (18,000 Litres)

Fuel Tank Truck North Benz(6x6)-B
Photo 5: Back View of Off-road Fuel Tanker Truck North Benz (18,000 Litres)

Fuel Tank Truck North Benz(6x6)-LF
Photo 6: We shipped 1 unit of 4x4 North Benz Fuel Bowser and 3 units of 6x6 North Benz Fuel Tank Truck to Congo
