Chemical Liquid Tanker Truck FAW
19,000 Litres Chemical Transport Truck
Chemical Liquid Tanker Truck FAW
Function:

Chemical liquid tanker truck (also called chemical transport truck, chemical truck tanker, chemical delivery truck, chemical tank truck, chemical transport truck, chemical tank lorry, truck mounted chemical tank) is used to transport chemical liquid, such as hydrochloric acid, concentrated sulfuric acid, alcohol, hydrogen peroxide, acetic acid, toluene, nitric acid, etc.

The tank can be made of carbon steel, stainless steel, carbon steel lined with rubber, carbon steel with rotational molding, fiberglass, plastic (polyethylene, polypropylene), aluminum and other materials.

Features:

---- FAW China chassis, perfect performance
---- FAW engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Strong, durable, perfect performance
---- Prolonged service life

Specification:



Chemical Liquid Tanker Truck ( 19,000 litres )
General Vehicle Brand SPV
Chassis Brand FAW
Overall Dimension 12000 * 2500 * 3600 mm
GVW / Kerb Weight 31,000 kg / 11,600 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand FAW engine
Power 255 Hp (188 KW)
Displacement 6740 ml
Emission Standard Euro III
Chassis Drive Type 8X4, left hand drive
Transmission 12-speed forward, 2-reverse
Wheelbase/No. of axle 1900+4500+1350 mm / 4
Tyre Specification 11.002-20
Tyre Number 12 tyres and 1 spare tyre
Max Speed 79 km/h
Paint Metallic paint
Superstructure Tank Capacity 19,000 Litres ( 5,000 gallons)
Tank Material Carbon steel lined with plastic
Flow Speed 1000 litres / min
Hose High quality plastic hose
Inner baffles inside tank for prevention of longitudinal wave during moving.
All other standard accessories: manhole, ladder, inlet, discharge, anti-slip walkway, fire extinguisher…
Optional ** Tank material could be stainless steel, aluminum, plastic……
** It can be divided into many compartments to load different types of chemical liquid.
** Pump, pneumatic valve, level gauge, floating balll….

Right front view of Chemical Liquid Tanker Truck FAW

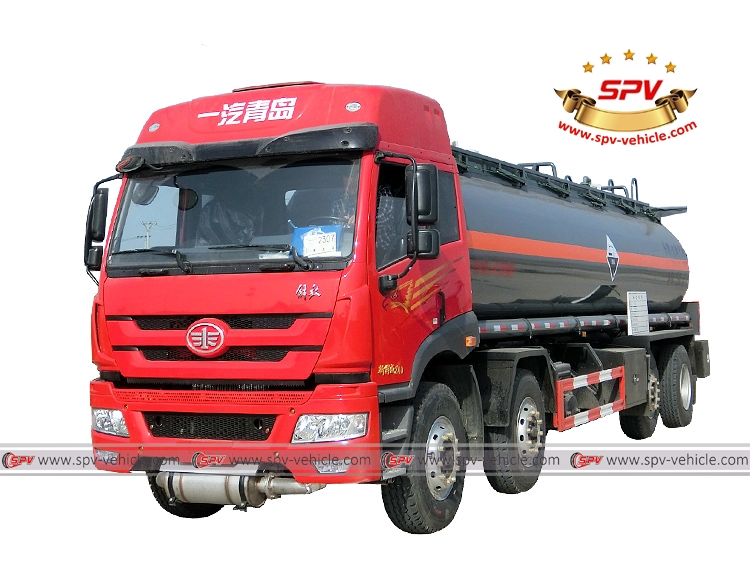

Photo 1: Right front view of Chemical Liquid Tanker Truck FAW

Right side view of Chemical Liquid Tanker Truck FAW
Photo 2: Right side view of Chemical Liquid Tanker Truck FAW

Right back view of Chemical Liquid Tanker Truck FAW
Photo 3: Right back view of Chemical Liquid Tanker Truck FAW
