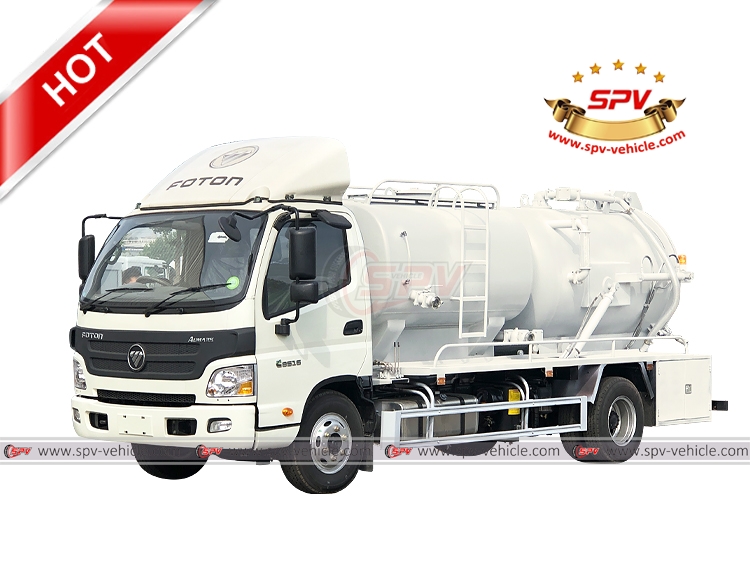

Sewer Vacuum Jetting Truck FOTON
6,000 Litres Combined Vaccum Jet Truck
Sewer Vacuum Jetting Truck FOTON
Function:

Sewer vacuum jetting truck(also called as jetting and suction truck, jet vacuum combination truck, combined jet vacuum truck, vacuum and water jetting truck, combined sewer cleaner truck, vacuum and jetting vehilce) is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipes under high pressure, and clear sewerage lines by means of a powerful vacuum suction to suck all water plus mud from sewer main hole. It is widely used in environment and sanitation field.The combine superstructure can be mounted on chassis 4x4, 4x2, 6x4, 6x6, etc.

Features:

---- FOTON chassis - one of the best and oldest chassis brand in China.
---- Cummins engine (American brand), super powerful; reliable performance.
---- Nice shape, compact structure
---- Italy imported high pressure pump, super powerful, efficient jetting
---- Chinese high class vacuum pump, effective and durable
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:

Sewer Vacuum Jetting Truck ISUZU (6,000 litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 6920 * 2100 * 2610 mm
GVW / Kerb Weight 10,000 kg / 5,550 kg
Cab Cab Capacity 3 persons seats
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Cummins Engine
Power 154 Hp (115 KW)
Displacement 3760 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission 6 - speed forward, 1 reverse
Wheelbase 3800 mm
Number of axle 2
Tyre Specification 7.50R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Water Tank Tank Capacity 3,000 Litres (about 800 gals)
Tank Material Carbon steel
High Pressure Pump Italy Imported brand / 13 Mpa
Flow Speed 150 L/min
High Pressure Hose 60 m
Suction Head 6 m
Nozzles A cluster of nozzles included
Sewer Tank Tank Capacity 3,000 Litres (about 800 gals)
Tank Material Carbon steel
Vacuum Pump Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: manhole, tool kit, English manual……..
Optional ** Tank material could be stainless steel.
** High pressure hose length could be customized.

Sewer Vaccum Jetting Truck FOTON - Color Repaint
Client Repaint and supply to Brunei's goverment with their standard color

Sewer Vaccum Jetting Truck FOTON - F
Front View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - LF
Left Front View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - LS
Left Side View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - LB
Left Back View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - Tank Lifting
Sewer Vacuum Jetting Truck FOTON - Rear Sewage Tank Lifting

Sewer Vaccum Jetting Truck FOTON - RF
Right Front View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - RS
Right Side View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - RB
Right Back View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - B
Back View of Sewer Vacuum Jetting Truck FOTON

Sewer Vaccum Jetting Truck FOTON - Testing 01
Sewer Vacuum Jetting Truck FOTON - Third Party Inspection 01

Sewer Vaccum Jetting Truck FOTON - Testing 02
Sewer Vacuum Jetting Truck FOTON - Third Party Inspection 02
