4,000 Litres (1050 Gallons) Stainless Steel Fuel Tanker Truck ISUZU, Oil Transport Truck, Mobile Diesel Tanker from China | SPV
Home > Global Brands > ISUZU
Stainless Steel Fuel Truck ISUZU
4,000 Litres Fuel Dispensing Truck
Stainless Steel Fuel Truck ISUZU
Function:

Fuel tanker truck (also called oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.

Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.

Specification:

 Fuel Tanker Truck ISUZU (4,000 Litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 5980 * 1900 * 2200 mm
GVW / Kerb Weight 7,300 kg / 3,420 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4HK1
Power 98 Ps (72 KW)
Displacement 2771 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Tank Capacity 4,000 Litres (About 1,050 gallons)
Material Tank, mechanical pump, pump box all stainless steel
Pump Equipped for overhead delivery, 1000 litres / min
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

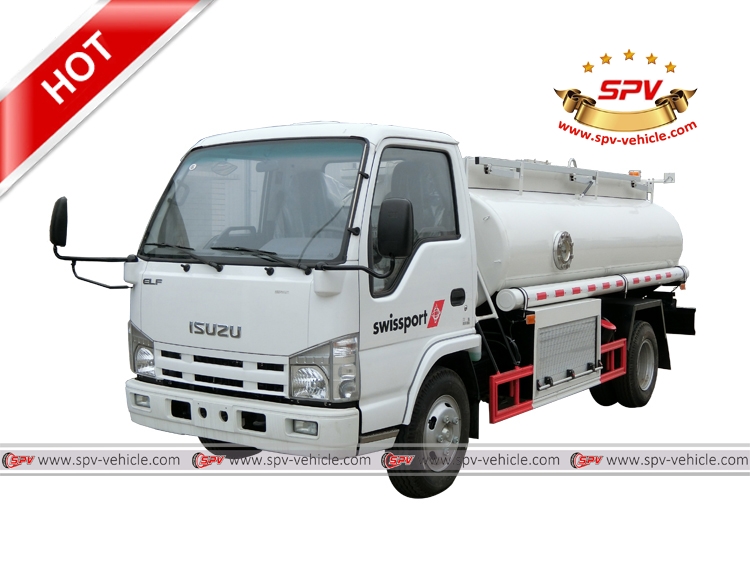

Stainless Steel Fuel Tank Truck ISUZU (4,000 Liters) Right Front View
Fuel Tanker Truck ISUZU (4,000 liters) made of Stainless Steel Front Right View

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Front View
Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Front View

This fuel tank is of 4,000 liters capacity. The whole tank and all piping systems are made of stainless steel 304.  It is equipped with Euro-type manhole, which locks the tank safely in case a roll-over situation; on the manhole, pressure/vacuum vent integrated, which can adjust air pressure in the tank to keep tank safe; on tank top, aluminum handrails and anti-slip check plate stepboards are equipped for operator's safety. There are inner baffles inside the tank to prevent longitudinal surge during moving. Level gauge is installed on tank side to let the operator see easily how much balance fuel inside tank. Anti-static belt and anti-static pole are both equipped to lead the static onto the ground to ensure operation.

Stainless Steel Fuel Tank Truck ISUZU (4,000 Liters) Left Side View
Fuel Tanker Truck ISUZU (4,000 liters) made of stainless steel left side view

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Left View
Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Left View

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear View
Fuel Tanker Trucks ISUZU (4,000 liters) Made of Stainless Steel Rear View



Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Right View
Fuel Tanker Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Right View

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Right View
Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Right View

Stainless Steel Fuel Tanker ISUZU Tank Top
Stainless Steel Fuel Tanker ISUZU Tank Top

This fuel tanker is equipped with bi-pump systems - both mechanical pump and electrical pump. The mechanical pump is composed of PTO (power take of from vehicle engine), mechanical pump, flow meter, stainless steel piping and stainless steel outlets, long hoses. It can used to  discharge fuel quickly to a higher place by 2 hoses, which are put in the hose trays along tank sides. It can also discharge fuel by long 15M hose with nozzle, which is installed in the rear compartment.

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System
Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System 1

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System 2
Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System 2

The electrical pump  system is composed of electrical pump, flow meter and hose reel with 15M long hose. The electrical pump is imported originally from America - Tuthill Fillrite. It is one of the best fuel delivery solution brands in the world. Flowing capacity is 20 gallons per minute (equals 75 liters per minute). A flow meter of same brand Tuthill Fillrite is equipped to calculate the refueling quantity. The hose reel with 15 meters high quality hose with refueling trigger is equipped for convenient refueling operation, even in long distance.

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Electrical Pump System
Stainless Steel Fuel Dispensing Truck ISUZU (4,000 liters) is on testing - fuel refueling by American Tuthill Fillrite Pump,
Flow gauge to show discharge quatity

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Electrical Pump System 2

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Electrical Pump System

Fuel Tanker ISUZU (Stainless Steel Material)
Stainless Steel parts Show at Manufacturing Stage

Client is satisfied with our fuel tanker ISUZU
Comments from Client


Irene in front of Stainless Steel Fuel Tanker (4,000 Liters)
Irene in front of Stainless Steel Tank Truck for Swissport Company for Ghana
