5 Tons Cargo Truck with Crane ISUZU, Truck Mounted Crane, Telescopic Truck Crane from China

Cargo truck with crane (also called lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Features:

---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.

Specification:

Cargo Truck with Crane ISUZU (Telescopic Crane 5 Tons)
General	Vehicle Brand	SPV / SPV5180JSQL5
	Chassis Brand	ISUZU
	Overall Dimension	9390 * 2550 * 3480 mm
	GVW / Kerb Weight	18,000 kg / 10,100 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Equipped Air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	205 Hp (150 KW)
	Displacement	5193 ml
	Emission Standard	Euro V
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 6-speed front, 1 reverse
	Wheelbase/No. of axle	5550 mm / 2
	Tyre Specification	295/80R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	6000 X 2400 X 900 mm
	Crane Brand	XCMG
	Max Lifting Capacity	5000 kg
	Lifting Capacity @ Working Radius	5000 kg @ 2.10 m
	Max. Lifting Moment	105 T.M
	Max. Lifting Height	12.5 m
	Max. Working Radius	11.2 m
	Slewing Angle	360°all rotation
	All other standard accessories: Tool kit, English manual
Optional	Hydraulic tipper box is optional. Box thickness according to requirement. ** Box height could be nominated.

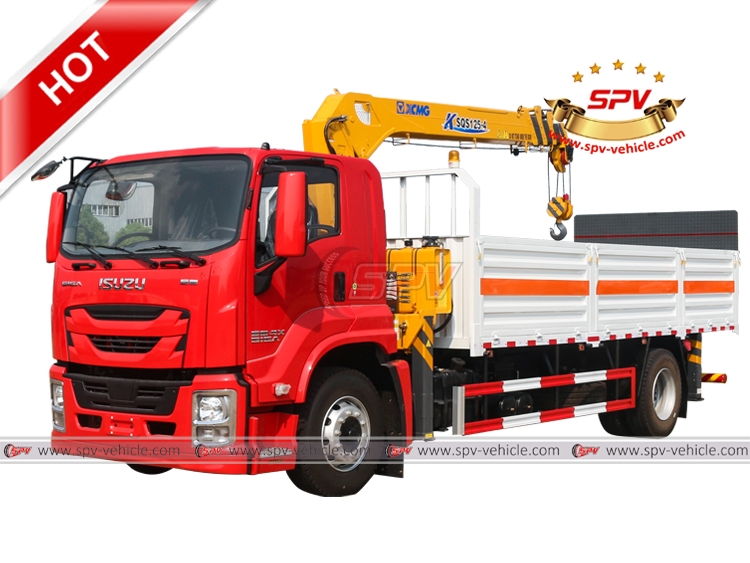

Cargo Truck with Crane ISUZU(5 Tons Crane)

Cargo Turck with Crane ISUZU - LF-2

Left Front View of Cargo Truck with Crane ISUZU(5 Tons Crane)

Cargo Turck with Crane ISUZU - L

Left Side View of Cargo Truck with Crane ISUZU(5 Tons Crane)

Cargo Turck with Crane ISUZU - LB

Left Back View of Cargo Truck with Crane ISUZU(5 Tons Crane)

Cargo Turck with Crane ISUZU - RF

Right Front View of Cargo Truck with Crane ISUZU(5 Tons Crane)

Cargo Turck with Crane ISUZU - R

Right Side View of Cargo Truck with Crane ISUZU(5 Tons Crane)

Cargo Turck with Crane ISUZU - RB

Right Back View of Cargo Truck with Crane ISUZU(5 Tons Crane)

Cargo Turck with Crane ISUZU - Operating

Cargo Truck with Crane ISUZU(5 Tons Crane) - Operating of Crane

Cargo Turck with Crane ISUZU - Operating - Tailgate

Cargo Truck with Crane ISUZU(5 Tons Crane) - Operating of Tailgate
