ShangHai SPV Special Vehicle Co., Ltd.
Dump truck (also called dumping truck, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

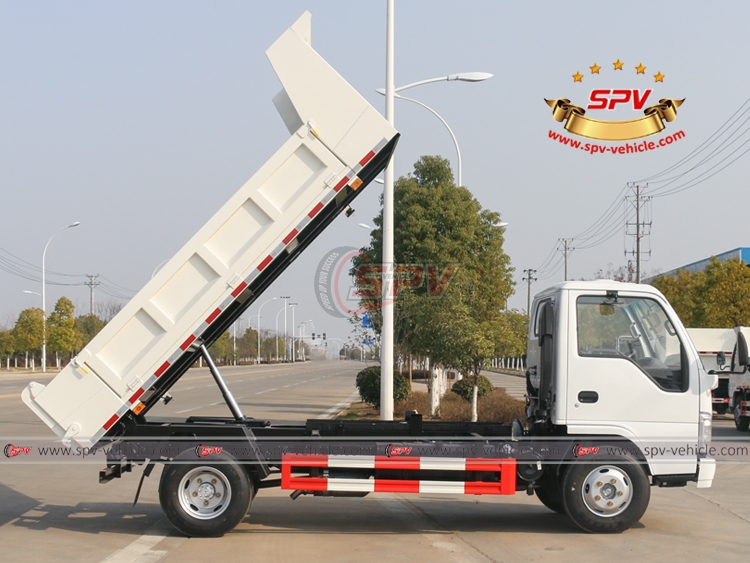

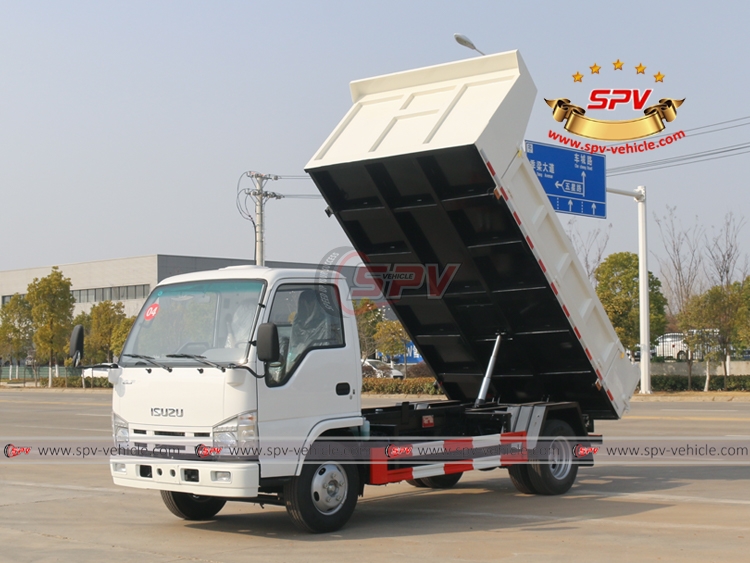

A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Strong, durable, perfect performance
---- Prolonged service life
| Dump Truck ISUZU (Volume: 3.6 m³) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5450* 2200 * 2160 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,200 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 98 Hp (72 KW) | |
| Displacement | 2991 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual, 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00 -16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Volume | 3.6 m³ |
| Box Dimension | 3400 * 1800 * 600 mm | |
| Box Thickness | Side board: 3 mm; Floor: 4 mm | |
| All other standard accessories: Tool kit, English manual... | ||
| Optional |
** Box thickness could be nominated. ** Box height could be nominated. ** Tip way: back or side. |
|
