Two units of mine water trucks (capacity: 40,000 liters) with wide cabin are completed by SPV

Two units of mine water trucks (capacity: 40,000 liters) with wide cabin are completed

2015-05-13

The normal chassis in China is 4X2, 6X4, 8X4. The tank capacity of 4X2, 6X4 chassis are of course no more than 25,000 liters. The maximum tank capacity of a normal 8X4 can also only reach 35,000 liters. But if you do want a grand tanker of 40,000 liters, besides a tank semi-trailer towing by a tractor, here is another brilliant solution, especially for mine industry, as SPV Special Vehicle Co., Ltd. has recent done for her mine customer.

You can use a wide mine truck chassis with specification as below as SPV does:

Chassis	Single side Mine chassis, specially designed for mines
Overall Dimension	8140 * 3200 * 4000 mm
GVW / Kerb Weight	68,000 kg / 22,000 kg
Payload	41,000 kg
Fuel Type	Diesel
Engine Brand	Best Chinese brand - Weichai, WD12.375
Power	375 Ps (276 KW)
Drive Type	6X4, left hand drive
Transmission	9JSD180
Wheelbase/No. of axle	4050 mm / 3
Tyre Specification	14.00R24, radial type, super wearable
Minimum Turning Diameter	20 m
Minimum Ground Clearance	380 mm
Maximum Gradeability	35%
Maximum Speed	45 km/h
Paint	Metallic paint

It is specially designed for mine use. You can see the chassis is wide as 3200mm. Fyi, normal truck width on China public roads is limited to 2500mm, but not limited for mine trucks.

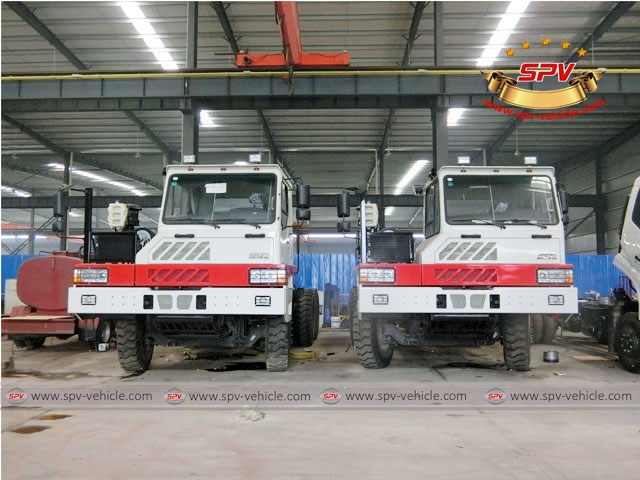

Mine use chassis for grand water tanker (40,000 liters)

Mine Use Chassis with single-side cabin for water tanker (40,000 liters)

Early this month, the chassis have been in our workshop, under piping system building. Now they have been equipped with big tanks of capacity 40,000 liters. Passing inspection, the two mine-use water tankers will be delivering to end user soon. They especially useful for water supply in mines.

Front Left View of Mine Water Tanker (40,000 liters)

Front View of Mine Water Tanker (40,000 liters)

Front Right View of Mine Water Tanker (40,000 liters)

Right View of Mine Water Tanker (40,000 liters)

Rear Right View of Mine Water Tanker (40,000 liters)
