Road Wrecher Truck with Crane ISUZU, Road Wrecker Truck, Tow Truck, Breakdown Truck from China

Road wrecker truck with crane (also called road wrecker truck, flatbed towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) is used to transport motor vehicles or the vehicles that are broken down.

Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slidebed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.

Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:

Road Wrecker Truck with Crane ISUZU ( 5 Ton )
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	8200 * 2500 * 2600 mm
	GVW / Kerb Weight	10,000 kg / 6,320 kg
Cab	Cab Capacity	3 persons seats
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	190 Ps 139 KW)
	Displacement	5193 ml
	Emission Standard	Euro V
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU gear box, no overhaul within 500,000km
	No. of axle	2
	Tyre Specification	235/75R17.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	105 km/h
	Paint	Metallic paint
Superstructure	Towing Type	Slidebed with wheel-lift
	Flatbed Payload Capacity	3 - 5 Ton
	Flatbed Length * Width	5600 * 2300 mm
	Towing capacity	2 Ton
	Crane Capacity	2 Tons
	All other standard accessories: Binding belt, auxiliary sliding board, spinning cylinder, L-type fork, tyre cover……
Optional	LED alarm lamp is optional. Crane could be installed on flatbed wrecker.

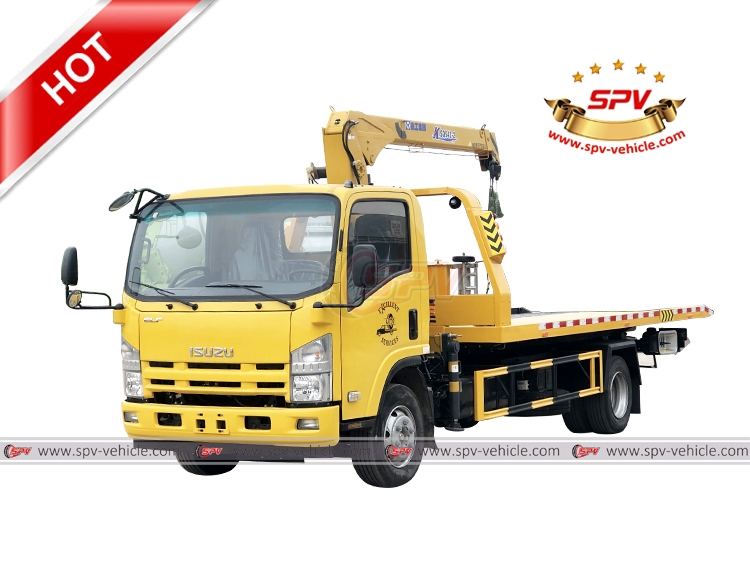

Front view of Road Wrecker Truck with Crane ISUZU

Left side view of Road Wrecker Truck with Crane ISUZU

Left back view of Road Wrecker Truck with Crane ISUZU

Right front view of Road Wrecker Truck with Crane ISUZU

Right side view of Road Wrecker Truck with Crane ISUZU

Right back view of Road Wrecker Truck with Crane ISUZU

Road Wrecker Truck with Crane ISUZU - Crane Movement

Road Wrecker Truck with Crane ISUZU - 360 ° Rotation Crane

Road Wrecker Truck with Crane ISUZU - Sliding bed

Road Wrecker Truck with Crane ISUZU - Towing

Left side view of Road Wrecker Truck with Crane ISUZU - L type fork extension
