15 M Isulated Bucket Truck JMC, Aerial Lifter Truck, Truck Mounted Platform from China

Insulated bucket truck (also called aerial lifter truck, aerial vehicle, aerial platform, aerial lift, aerial platform truck, truck mounted aerial work platform, aerial work platform price, aerial work platform truck, aerial truck with basket ) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

SPV aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:

---- JMC chassis ensures perfect driving performance;
---- JMC engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Insulated Bucket Truck JMC (15 M)
General	Vehicle Brand	SPV
	Chassis Brand	JMC
	Overall Dimension	7800 x 2300 x 3400 mm
	GVW / Kerb Weight	7,500 kg / 7,300kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Chinese top Yuchai engine
	Power	140 Ps (103 KW)
	Displacement	4260 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, left hand drive or right hand drive
	Transmission	Manual, 5 forward gears & 1 reverse
	No. of Axle	2
	Tyre Specification	8.25-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Cage Rated Capacity	200 kg
	Cage Dimension	1000 * 725 * 990 mm
	Max. Working Height	15 m
	Max. Floor Height	13.4 m
	Voltage Resistance	20 KV / 5 min
	Outriggers	4pcs, H-type; Hydraulically extend and retract
	Slewing	360° continuous rotation with base turntable
	Control	Control both on the ground and in the cage
	Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
	Emergency stop switches at base and operator’s cage.
Optional	Insulated cage; Cargo box; Hoist hook with cables.

Photo 1: Lifting Test of Isulated Bucket Truck JMC(15 m)

15m Insulated Bucket Truck JMC - R2

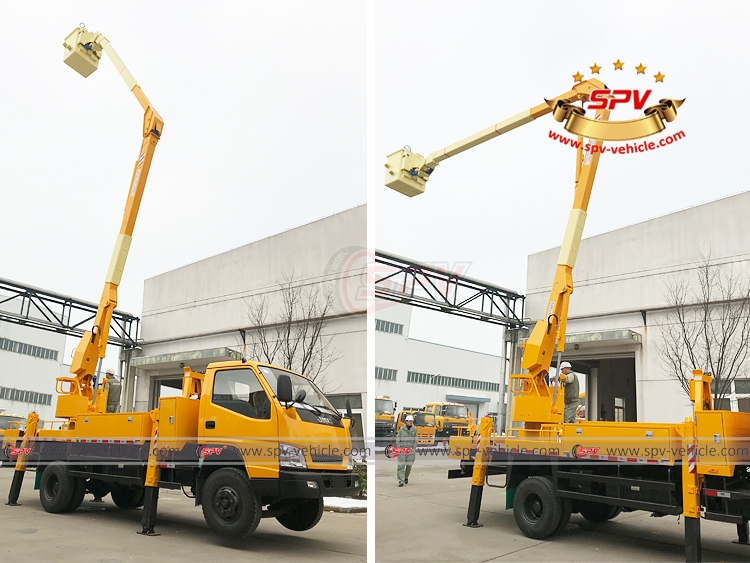

Photo 2: Lifting Test of Isulated Bucket Truck JMC(15 m)

15m Insulated Bucket Truck JMC - R3

Photo 3: Lifting Test of Isulated Bucket Truck JMC(15 m)
