Hydraulic Lifting Platform JAC
8-12M Articulated Basket Truck
Hydraulic Lifting Platform JAC
Function:

Hydraulic lifting platform (also called articulated basket truck, aerial platform vehicle, man lift truck, truck mounted beam lifter, basket crane truck, overhead working truck, high operation truck, mobile hydraulic aerial cage truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Features:

---- The working cage can be made of steel structure or reinforced fiberglass.
---- JAC chassis ensures perfect driving performance.
---- Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.



Specification:



 Hydraulic Lifting Platform JAC (8-12M)
General Vehicle Brand SPV
Chassis Brand JAC
Overall Dimension 6100 * 2200 * 2700 mm
GVW / Kerb Weight 6,845kg / 3,255 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Chaoyang engine
Power 120Ps (88KW)
Displacement 3856 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission 6-speed front, 1 reverse
Wheelbase/No. of axle 3308 mm / 2
Tyre Specification 7.50-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Working Cage 200 kg capacity, anti-slip floor
Working Height 8-12M
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional **  Hoist hook with cables can be equipped for the function of a crane.

Similar Key Words: articulated basket truck, aerial platform vehicle, man lift truck, truck mounted beam lifter, basket crane truck, overhead working truck, lift truck, boomlift vehicle, articulated telescopic aerial truck, bucket boom truck

Aerial Working Truck-JAC-F1
Front View of Hydraulic Lifting Platform JAC

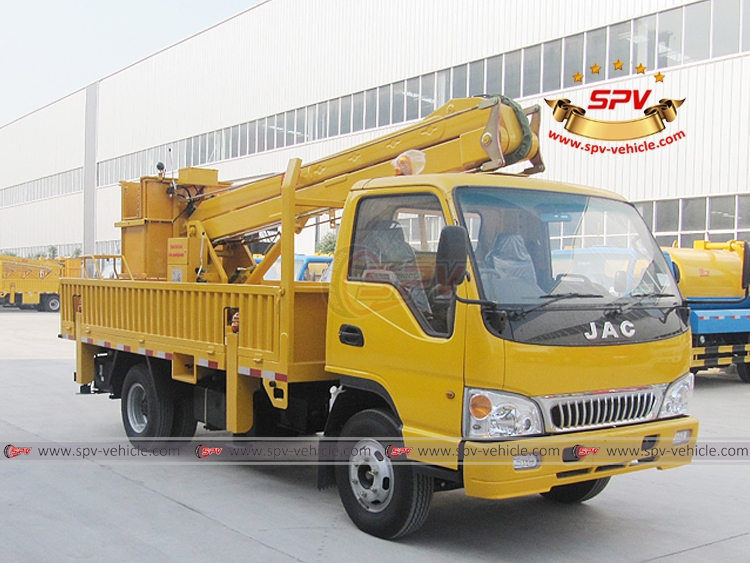

Aerial Working Truck-JAC-FS1
Right Front View of Hydraulic Lifting Platform JAC

Aerial Working Truck-JAC-RS1
Right Side View of Hydraulic Lifting Platform JAC

Aerial Working Truck-JAC-F01
To Bangladesh - 9 units of Hydraulic Lifting Platform JAC

Aerial Working Truck-JAC-B01
To Bangladesh - 9 units of Hydraulic Lifting Platform JAC

Aerail Platform  -JAC-Park
To Bangladesh - 9 units of Hydraulic Lifting Platform JAC

Aerail Platform  -JAC-on board
To Bangladesh - 9 units of Hydraulic Lifting Platform JAC - Shipping by Bulk Vessel

Our  Aerail Platform Truck  in Bangladesh-02
SPV Hydraulic Lifting Platform JAC in Bangladesh - 1

Our  Aerail Platform Truck  in Bangladesh-01
SPV Hydraulic Lifting Platform JAC in Bangladesh - 2

Our  Aerail Platform Truck in Bangladesh-03
SPV Hydraulic Lifting Platform JAC in Bangladesh - 3

Our  Aerail Platform Truck in Bangladesh-04
SPV Hydraulic Lifting Platform JAC in Bangladesh - Inspection

Our  Aerail Platform Truck in Bangladesh-06
SPV Hydraulic Lifting Platform JAC in Bangladesh - Inspection

Our  Aerail Platform Truck in Bangladesh-07
SPV Hydraulic Lifting Platform JAC in Bangladesh - Inspection

Our  Aerail Platform Truck  in Bangladesh-05
SPV Hydraulic Lifting Platform JAC in Bangladesh - Inspection
