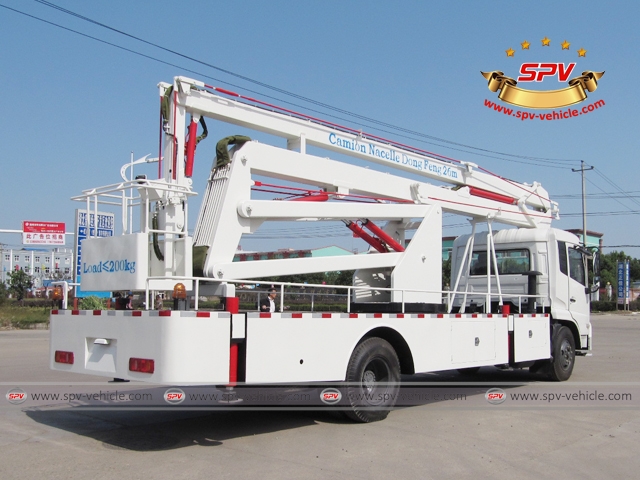

Hydraulic Beam Lifter Dongfeng
22-26M Aerial Work Platform Truck
Hydraulic Beam Lifter Dongfeng
Function:
Hydraulic beam lifter (also called aerial work platform truck, articulated telescopic bucket lift, truck mounted platform, high platform truck, man lift vehicle, mobile hydraulic aerial cage, skylift, overhead working truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Features:
---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.


Specification:
Hydraulic Beam Lifter Dongfeng ( 22-26 M )
General  Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 10100 * 2500 * 3800 mm
GVW / Kerb Weight 11,020 kg / 10,825 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 170Ps (125KW)
Displacement 5900 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left or right hand drive
Transmission 6-speed front, 1 reverse
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 10.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Working Cage 200 kg capacity, anti-slip floor
Working Height ≤26 M
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional **  Hoist hook with cables can be equipped for the function of a crane.

Similar Key Words: aerial work platform truck, articulated telescopic bucket lift, truck mounted platform, high platform truck, man lift vehicle, mobile hydraulic aerial cage, man lift, bucket boom truck, basket crane truck
